11500

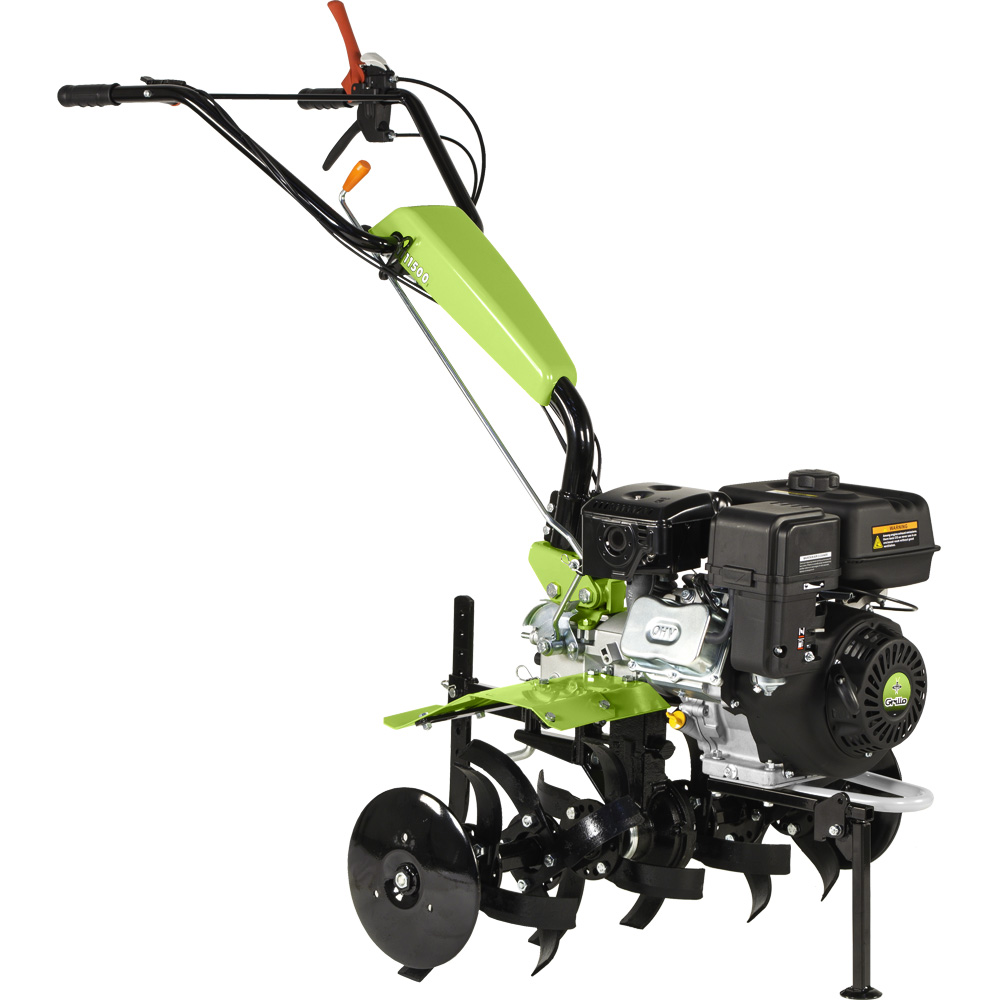

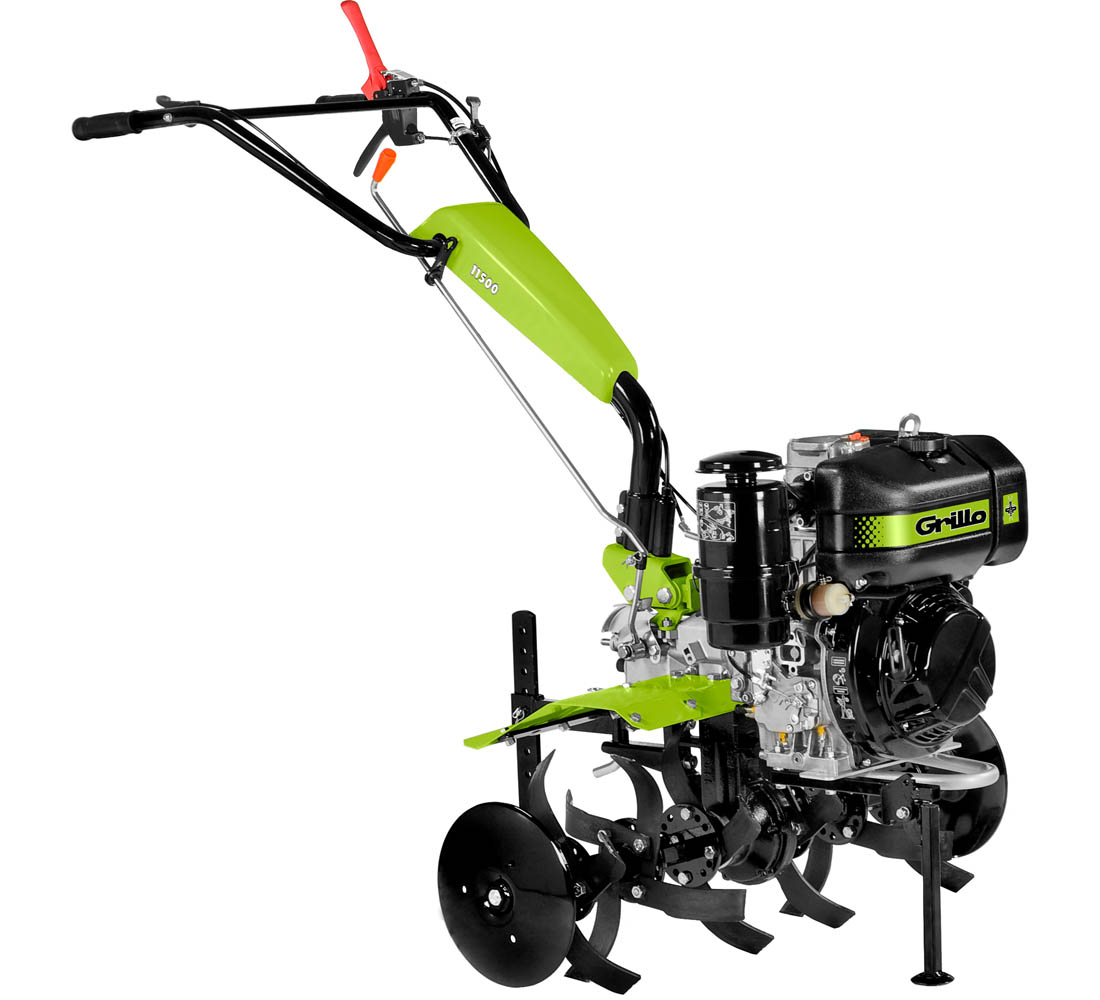

Grillo 11500
Grillo 11500

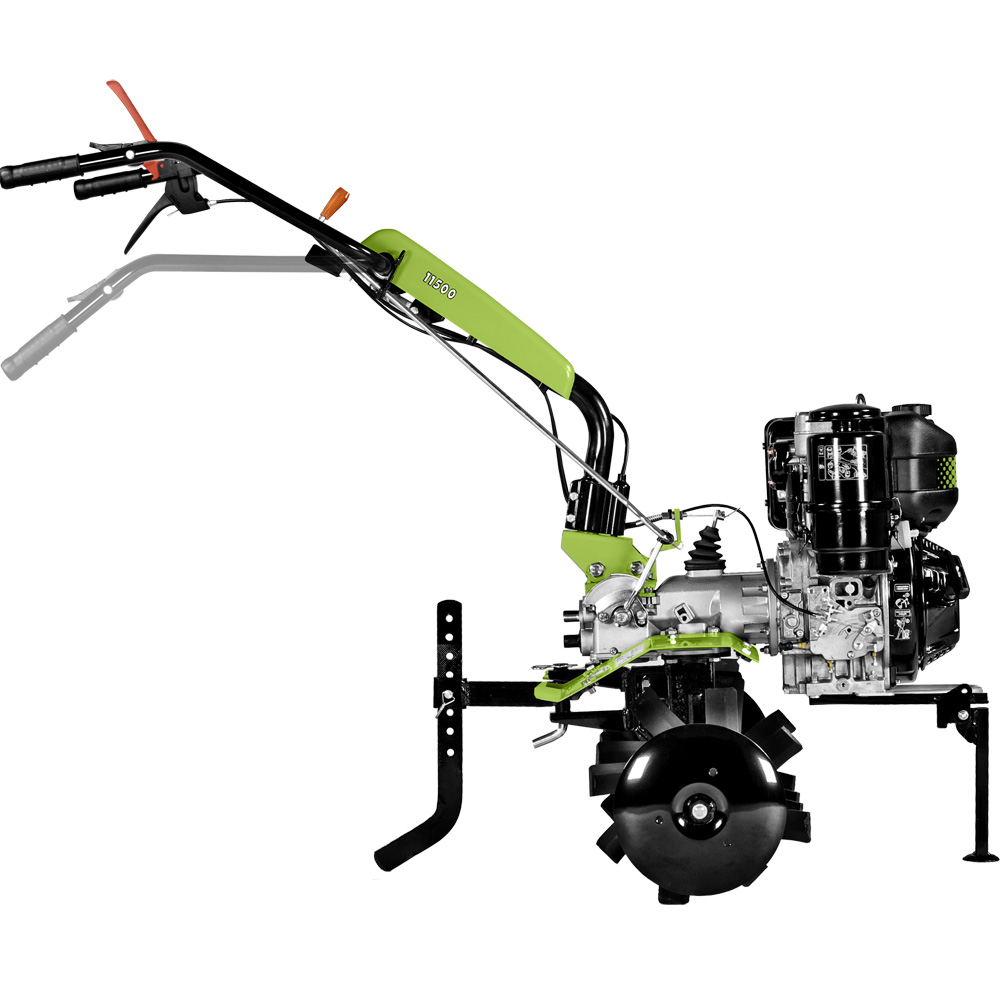

The Grillo 11500 tiller offers maximum performance and sturdiness.
The mechanical gearbox with oil-bath gears has 3 forward gears plus reverse.
The 99 cm wide tiller has a tines diameter of 32 cm and consists of 6 tine stars and side discs. By using the extension kit or by removing tiller stars, it is possible to obtain different tilling widths.
The machine has two PTOs, one for spray pumps and one synchronized with the gearbox.

The Grillo 11500 is equipped with an active coupling device; the feed lever on the handlebar, when pressed, starts the rotation of the tines. When the lever is released, the tines stop immediately and the engine remains running. Maximum practicality and safety.



The oil-bath gear transmission has 3 speeds plus reverse and the gear lever is always within easy reach.
The tiller casing is made of cast iron for maximum strength.

The Grillo 11500 is available with the G300FA, GX 270 petrol engines, and the KD15-350 Kohler diesel engine. The diesel engine is also available with electric starter.
These are latest-generation engines with the best features for agricultural use including excellent torque at low revs. Sturdy, reliable and quiet, they are equipped with systems that reduce the force required for starting.
All engines are equipped with a front bumper as standard and oil bath filter suitable for work in very dusty areas.

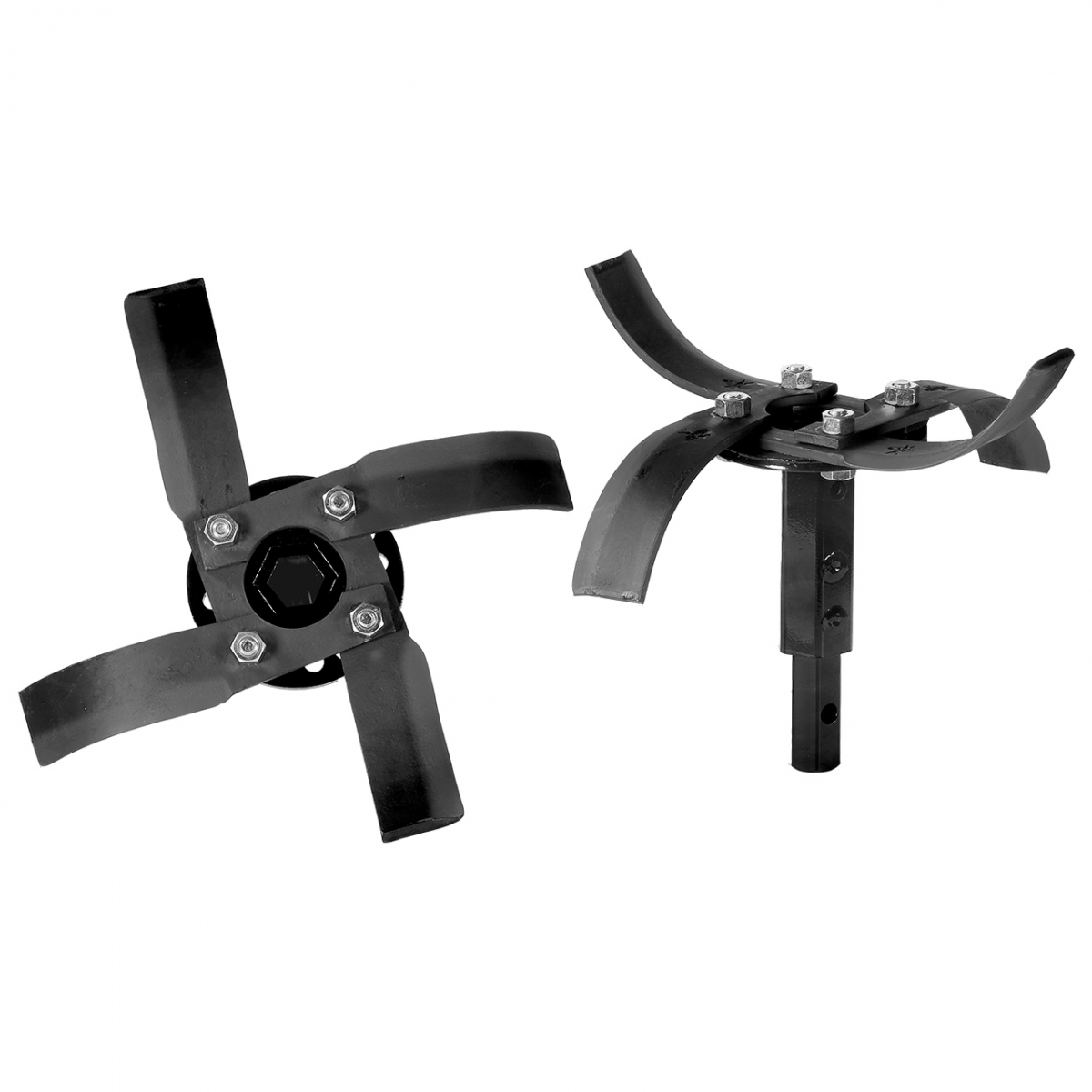

The tines made of hardened steel are bolted together. The tiller shaft is hexagonal with a 27 mm hexagon.


The height-adjustable spur with 8 positions is oscillating.
When tilling very hard soil, the inverted spur can be used. In addition, to achieve a very tight turning radius, it is possible to exclude the stop that limits the oscillation of the spur.

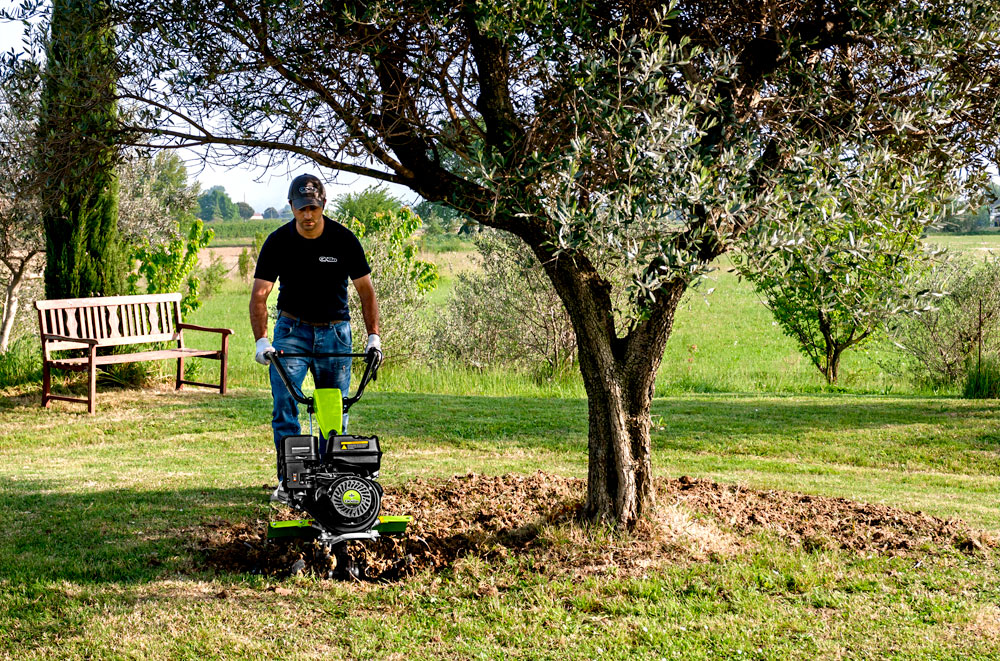

Even when tilling uphill and on the coast, the Grillo 11500 rotary tiller is agile and effective because of its perfect balance.

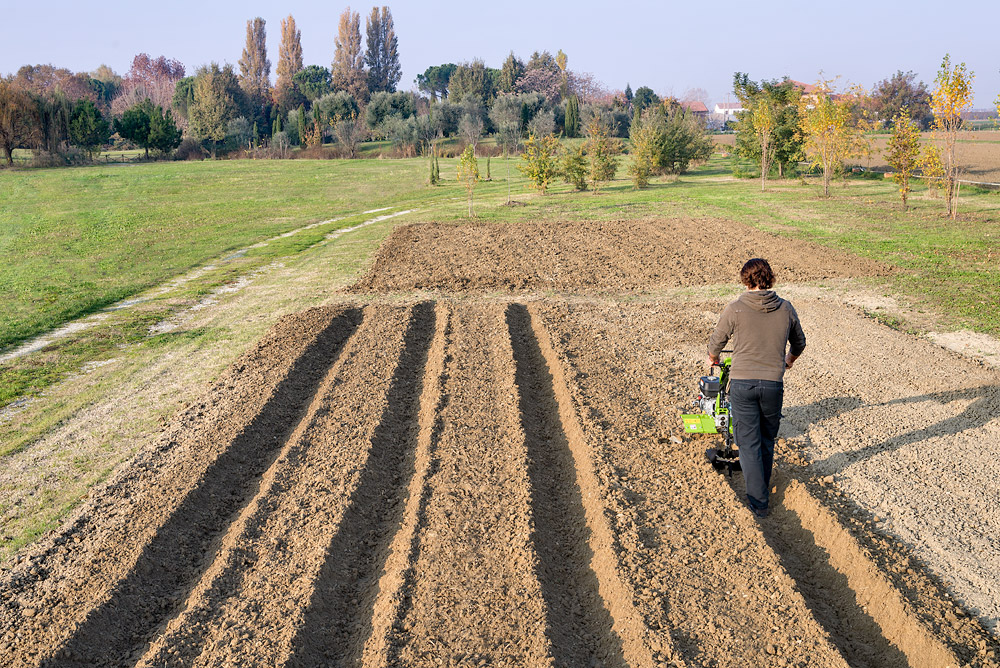

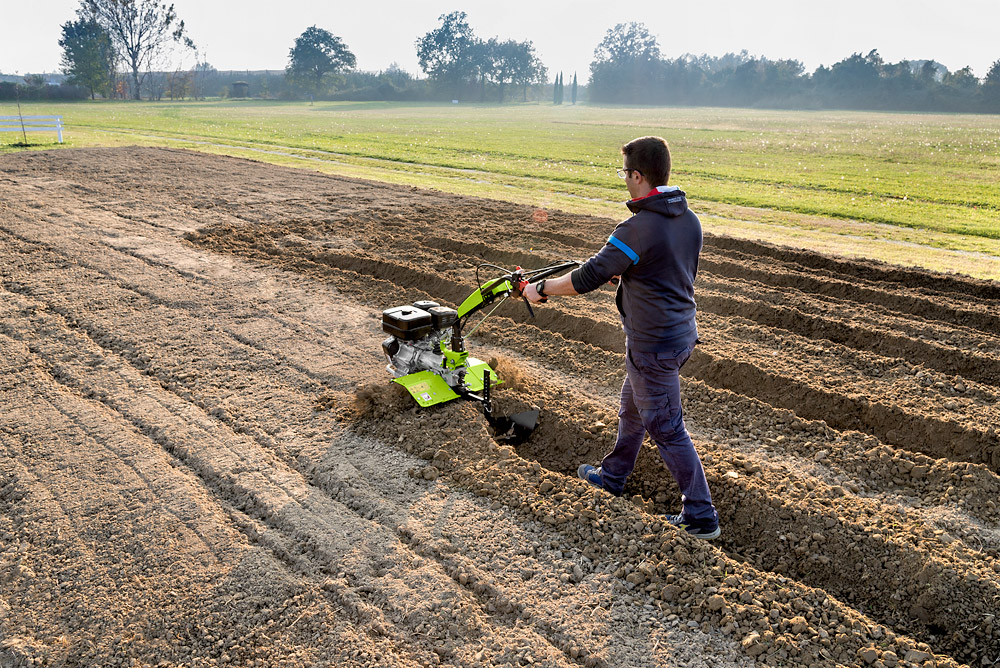

The adjustable furrow opener replaces the spur and allows perfect furrows of the desired depth and width for seeding or irrigation.


Side discs should not be used when tilling hard soil that has never been tilled.
In softer soils, side discs become very useful: they help maintain direction, advance and protect neighboring crops from tilling.

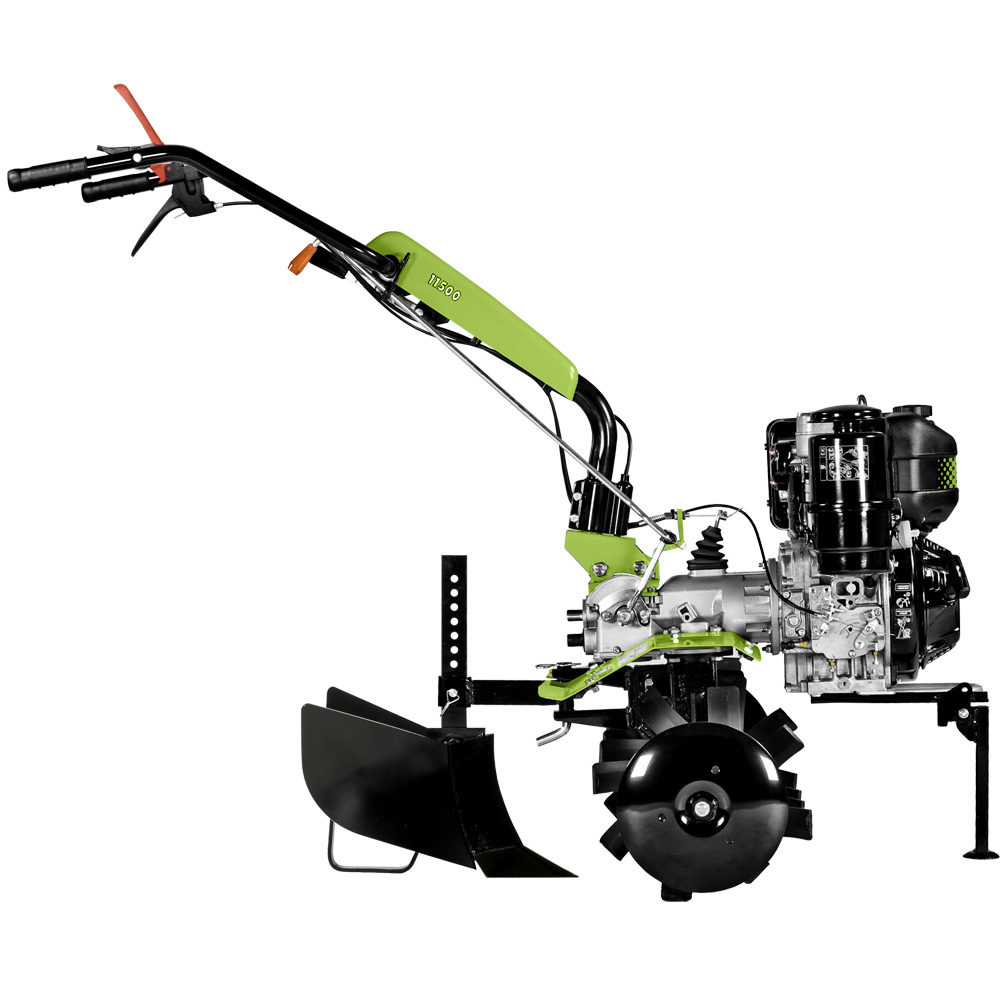

The Grillo 11500 can also plough by fitting the optional kit consisting of a single plough or turner and wheels.

Grillo Princess MP3



The handlebar is adjustable in height and laterally, with practical levers, without having to unscrew bolts or knobs. This makes it easy to work between plants, without stopping to avoid branches or obstacles.
The handlebar is mounted on anti-vibration dampers for a comfortable ride.

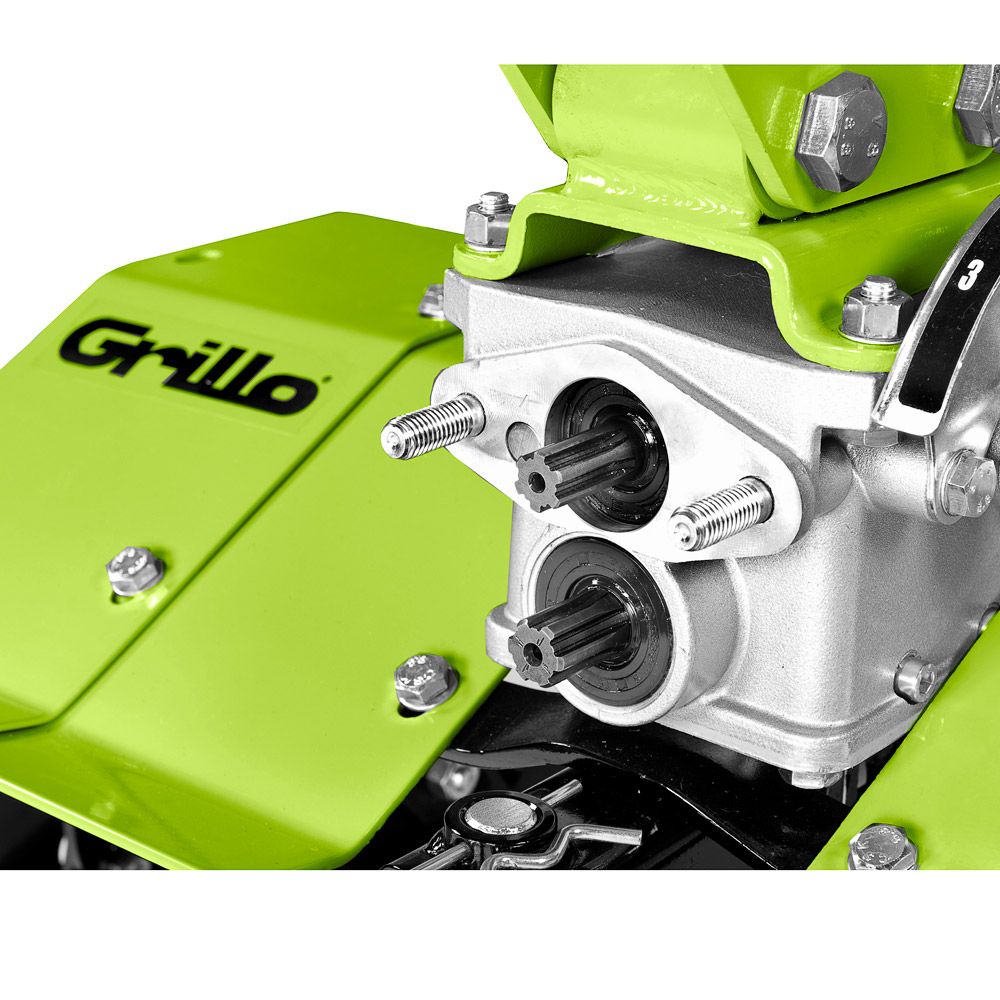

Two PTOs are fitted as standard on the Grillo 11500: the upper one has anti-clockwise rotation, is connected directly to the engine and has a splined shaft 11 UNI 221, the lower one has clockwise rotation synchronized with the gearbox and has a splined shaft 13 UNI 221.

All versions of the Grillo 11500 feature a front support foot with a spring-lock system as standard.

The optional front wheel is equipped with a practical spring device that automatically locks it in the working and transfer positions.



Cleaning and maintenance is very simple! You only need to check periodically the engine oil level and clean the filter. The gearbox doesn't need any maintenance. As with all Grillo products, the 11500 was designed and built to last plus retain its value over many years. All components, from the simplest to the most complex, are of a high quality standard. Grillo mounts last generation engines! Frame, handlebar, tiller, everything is built by Grillo in Italy, using the best materials and the latest technology to have high, consistent and 100% controlled quality.

Painting of all Grillo machines is made with a double electrostatic powder coating process. After washing and preparation, a first protective coat is applied then baked in a special oven; this has proven to be the best base for the application of the finish. The second coat consists of powder coating and further baking in an oven at 190°C; this gives the characteristic hardness and shine. All machines are assembled with care in every detail and tested scrupulously by trained personnel. Final inspection includes running the engine in order to check all its functions to guarantee a first class product.


All Grillo machines are distributed and serviced by a widespread dealer network. Spare parts remain available for many years after production has stopped giving you extra confidence in Grillo.


Technical data sheet
Technical data sheet 11500
Engine Kohler KD15 350
Start recoil starter
Supply diesel
Displacement 349 cc, 1 Cylinder
Power 7.5 HP (5.5 kW)
Air cooled
Oil bath air filter
Engine Kohler KD15 350
Start recoil starter and electric with 12V battery
Supply diesel
Displacement 349 cc, 1 Cylinder
Power 7.5 HP (5.5 kW)
Air cooled
Oil bath air filter
Engine Honda GX270 OHV
Start recoil starter
Supply fuel
Displacement 270 cc, 1 Cylinder
Power 8.4 HP (6.3 kW)
Air cooled
Oil bath air filter
Engine Honda GX200 OHV
Start recoil starter
Supply fuel
Displacement 196 cc, 1 Cylinder
Power 5.5 HP (4.1 kW)
Air cooled
Oil bath air filter
Engine Honda GX270
Start electric, with 12 V battery
Supply fuel
Displacement 270 cc, 1 Cylinder
Power 8.4 HP (6.3 kW)
Air cooled
Oil bath air filter
Fuel tank capacity 4,3 L eng. KD15 350 - eng. GX270 5,3 L - eng. GX200 3,1 L
Transmission with oil bath gears
Gearbox 3 forward gears + 1 reverse gear
Clutch conic active
Standard rotary tiller With 6 hoes system and side discs, working width 99 cm. With hexagonal shaft 2,7 cm
Hoes system diametre 34 cm
Working width area with side disks Adjustable at 72 and 99 cm (125 cm with extension kit cod. 933112)
Working depth area without side disks Adjustable at 59 and 86 cm (112 cm with extension kit cod. 933112)
Working depth 33 cm
Max. revolutions tiller 1st gear 53 rpm – 2nd gear 123 rpm – 3rd gear 162 rpm - reverse gear 53 rpm
P.T.O. 2 P.T.O: a superior P.T.O. running at the engine in anti-clockwise rotation, 11UNI 221. A second inferior synchronised P.T.O. with gearbox speeds in clockwise rotation 13 UNI 221
Handlebar height and side adjustment. Fitted on anti-vibration blocks
Weight 121 kg with eng. KD15-350 with electric starter - 110 kg with eng. KD15-350 with recoil starter - 90 kg with eng. GX270
In action! Photos and Videos
In action! Photos and Videos
Grillo 11500
Grillo 11500
Grillo 11500
Grillo 11500
Implements
Implements 11500

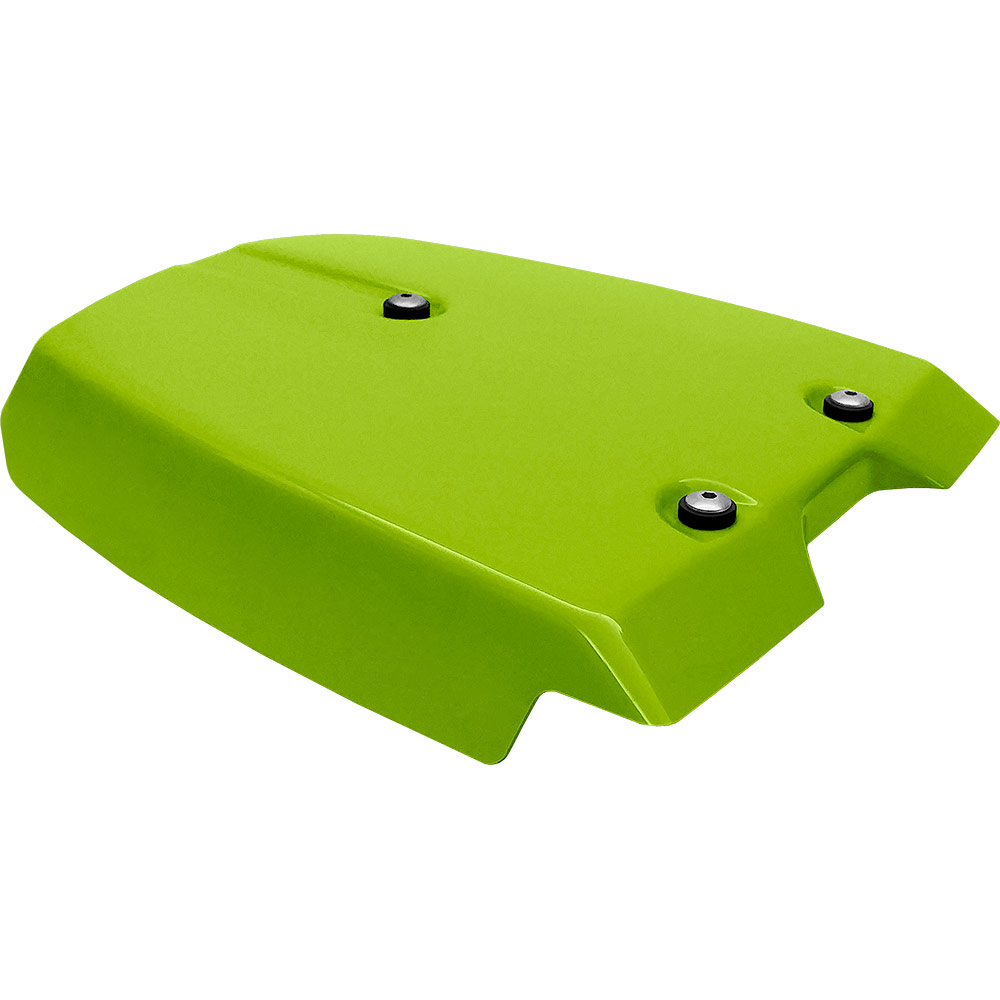

Cowling Kit engine

Cowling kit engine 11500 with LOMBARDINI 15LD350 diesel engine - COD. 9B5911
to be applied on 11500
item no.: 9B5911
weight: 3 kg

9B5511
to be applied on 11500
item no.: 9B5511
weight: 6 kg

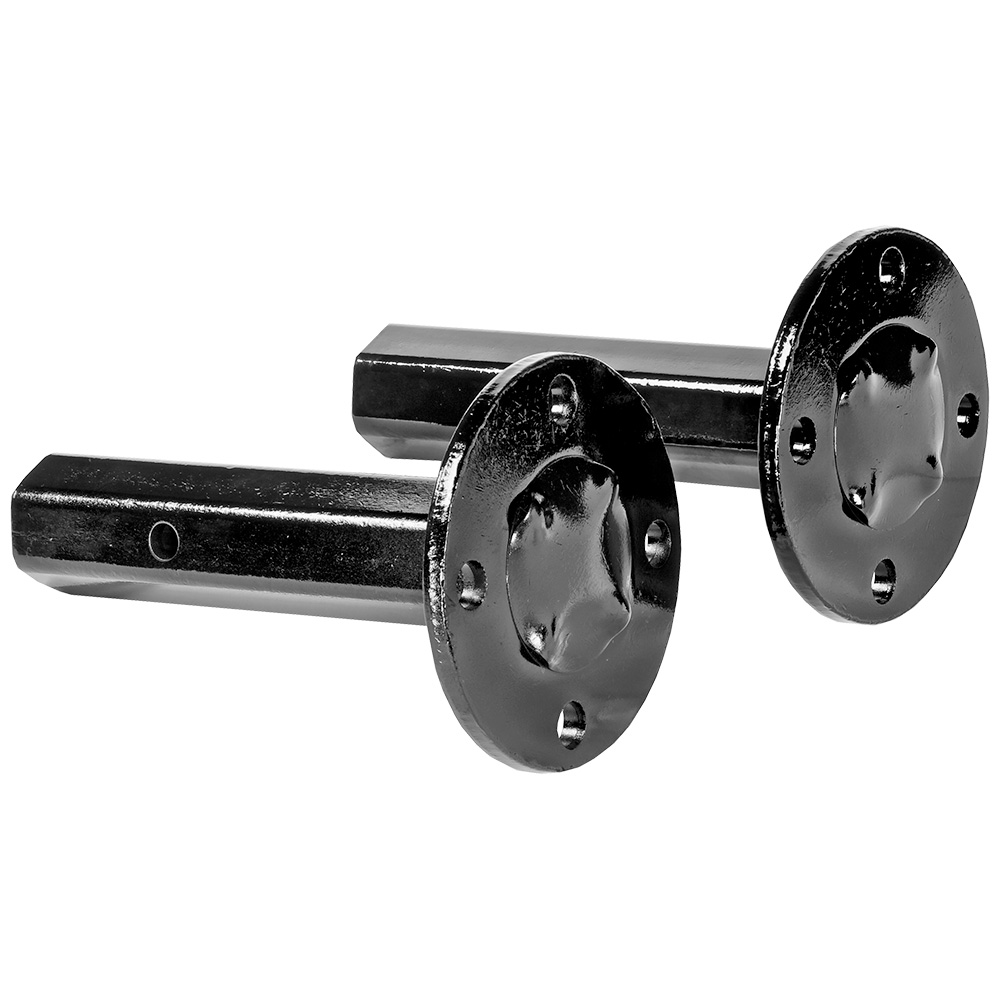

Rotary tiller extensions for 11500 and 12000 (pair)

Rotary tiller extensions (pair) for 11500 and12000 - COD. 933212
to be applied on 11500
item no.: 933212
weight: 8 kg

Single furrow plough - item no. 945322 needed, pneumatic wheels 5.00-12 and wheel weights are recommended

Single furrow plough - COD. 943122
to be applied on 11500 - 3500 - G 107d - G 108 - G 110 - G 85d
item no.: 943122
weight: 12 kg

Turn-wrest plough 180°

Turn-wrest plough 180 ° - COD. 943222
to be applied on 11500 - 3500 - G 107d - G 108 - G 110 - G 131 - G131 BC - G 85d
item no.: 943222
weight: 21 kg

on motorhoes item no. 950522 needed;



on walking tractors item no. 945322 needed; we recommend 5.00-12 wheels and wheel weights

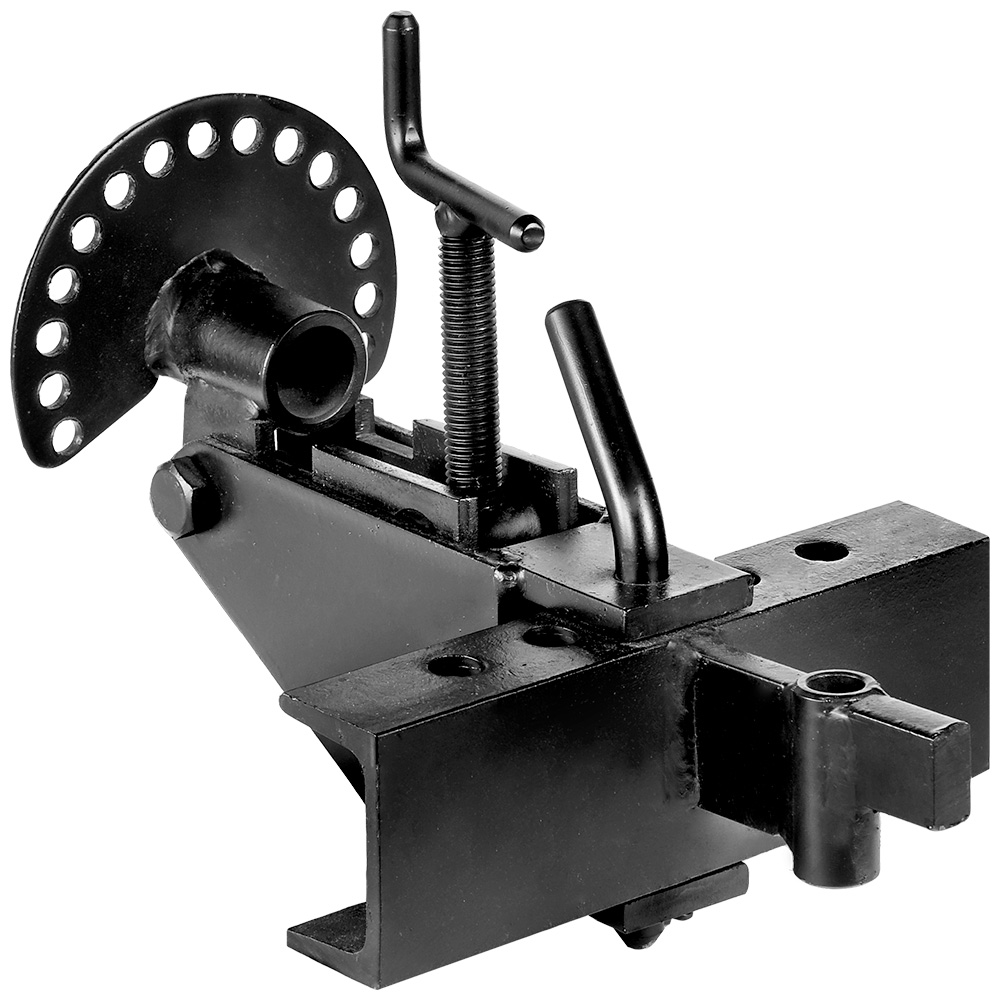

Frame for attachments for plough (item no. 900412 and item no. 9C4312 needed)

Frame for attachments for plough - COD. 950522
to be applied on 11500 - 3500
item no.: 950522
weight: 7 kg

Adjustable furrower (item no. 942722 needed, 5.00-10 pneumatic wheels and wheel weights item no. 9G1212 are recommended)

942622
to be applied on 11500 - 3500 - G 55
item no.: 942622
weight: 8 kg

Pneumatic Tractor wheels 5.00-10 (adjustable disks); pair

Pair pneumatic “Tractor” wheels  5.00-10 [adjustable discs] - COD. 900412
to be applied on 11500 - 3500 - G 107d - G 108 - G 110 - G 55 - G 85d - GF 3 - GF 3DF
item no.: 900412
weight: 22 kg

The adjustable discs permit to modify the external width of the wheels according to the type of labour to be done.



On walking tractor G55 they can be mounted only when using plough or furrower.



Item 9C4312 (wheels extensions) is needed on 3500, 11500 rotavators equipped with plough.

Wheelextensions (pair)

Pair wheels extensions for rotavators - COD. 9C4312
to be applied on 11500 - 3500 - Princess MP3 PRO
item no.: 9C4312
weight: 4 kg

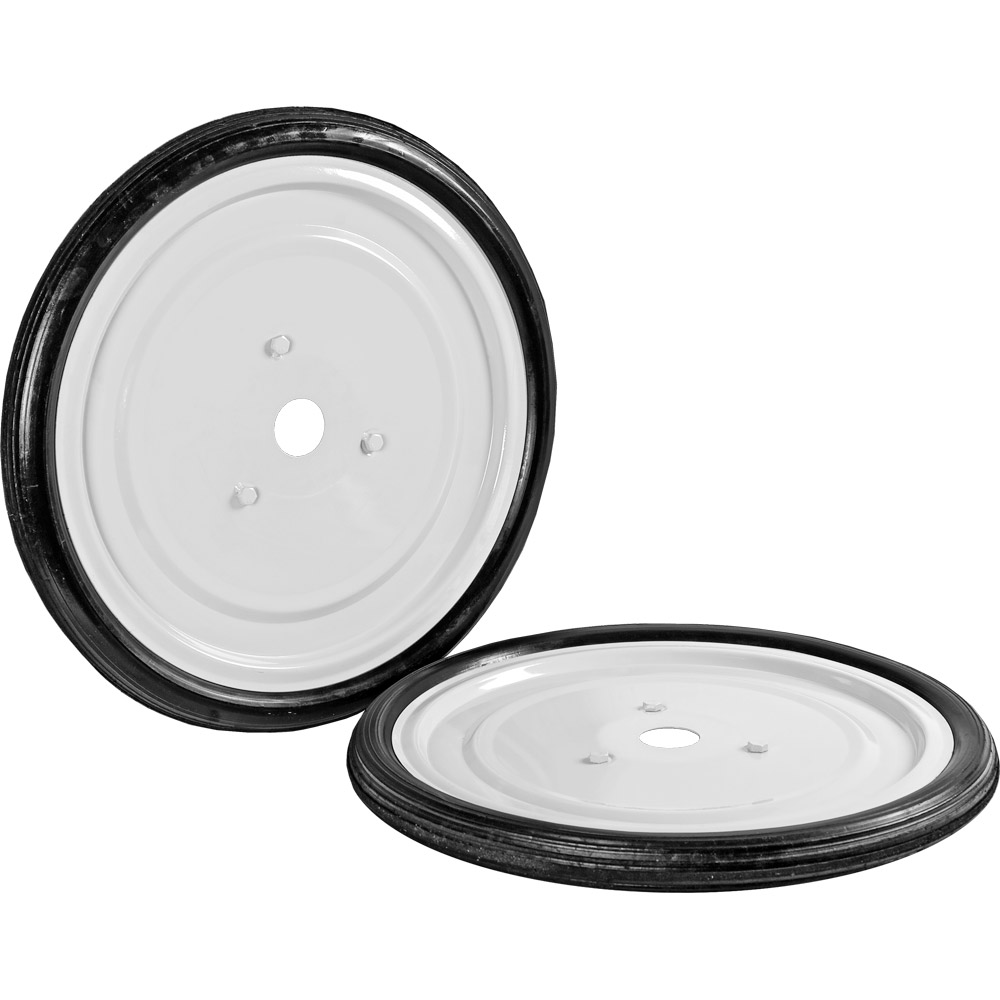

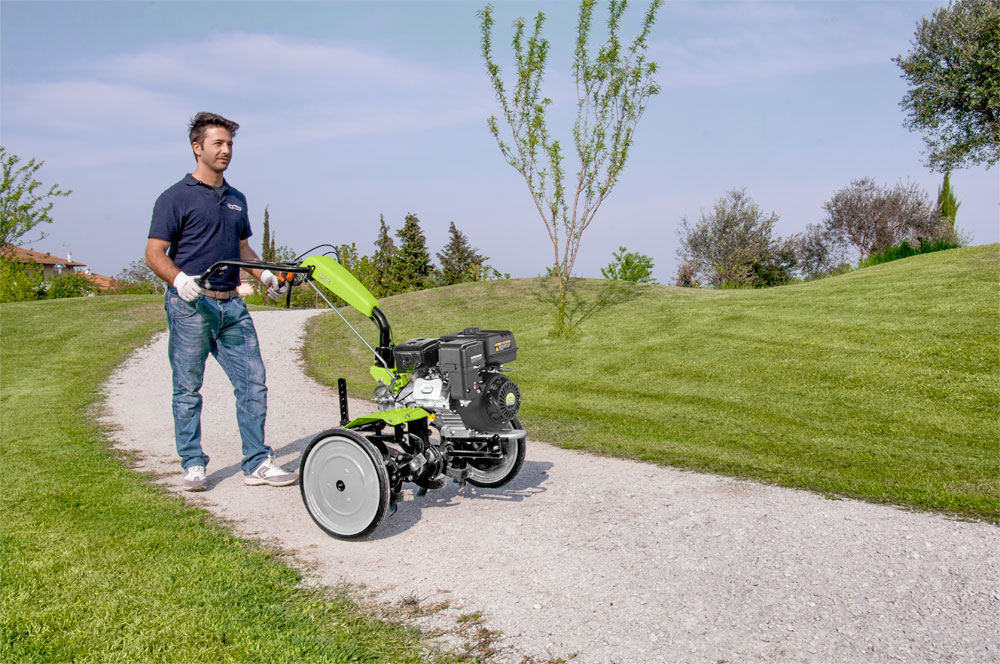

Transport wheels for rotavator Ø 42 cm (pair)

Side wheels pair for rotavator Ø 42 cm - COD. 9C7522
to be applied on 11500 - 3500 - Princess M1 - Princess MP3 - Princess MP3 PRO - Princess MR
item no.: 9C7522
weight: 7 kg

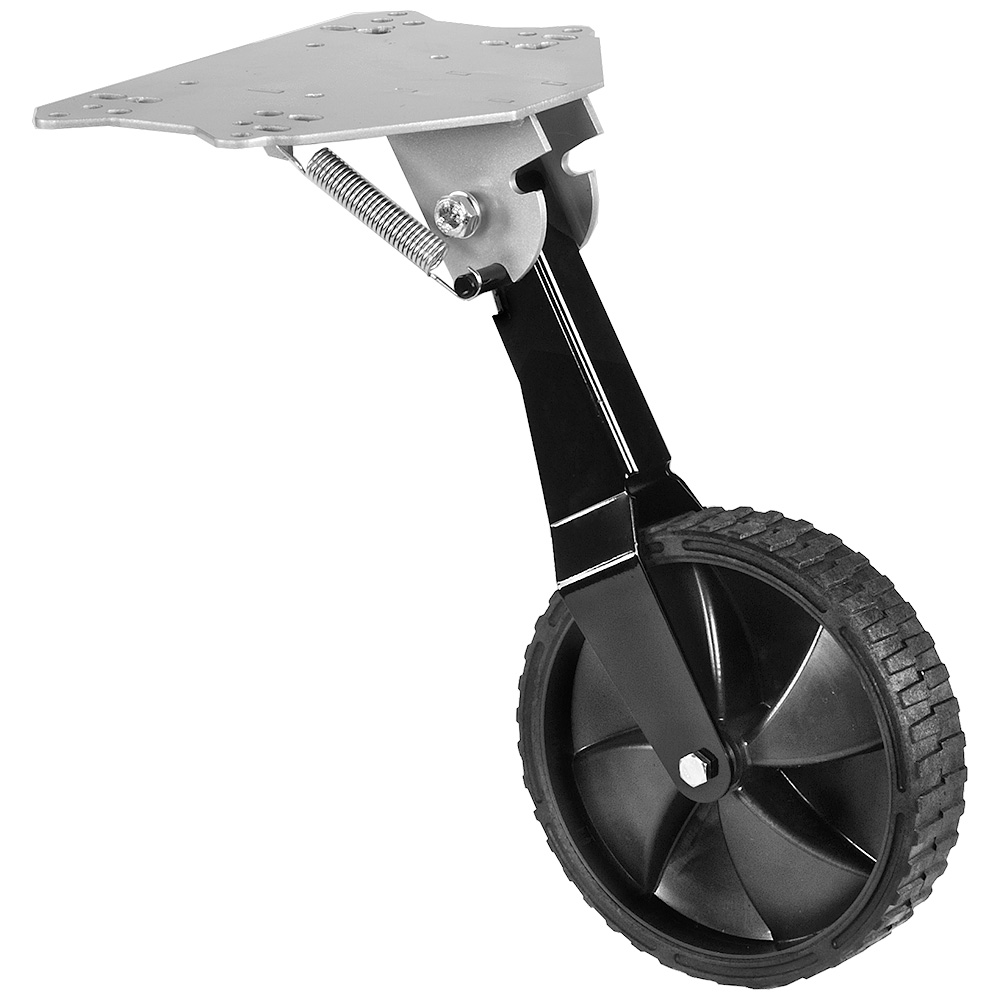

Liftable front transport wheel

Liftable front transport wheel - COD. 9B5611
to be applied on 11500 - 3500
item no.: 9B5611
weight: 3 kg
