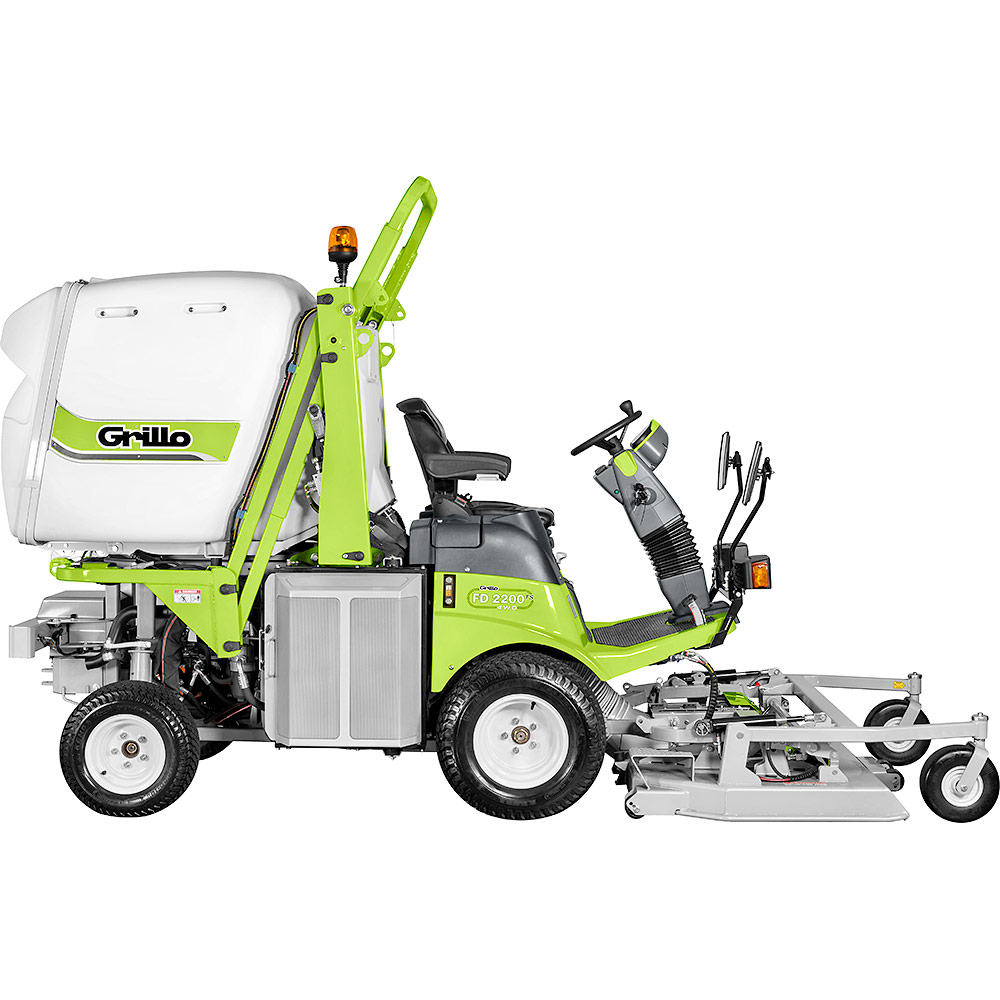

Grillo FD 2200TS Stage5 4WD
Grillo FD 2200TS Stage5 4WD Grillo FD 2200TS Stage5 4WD Grillo FD 2200TS Stage5 4WD Grillo FD 2200TS Stage5 4WD Grillo FD 2200TS Stage5 4WD Grillo FD 2200TS Stage5 4WD Grillo FD 2200TS Stage5 4WD Grillo FD 2200TS Stage5 4WD Grillo FD 2200TS Stage5 4WD Grillo FD 2200TS Stage5 4WD Grillo FD 2200TS Stage5 4WD Grillo FD 2200TS Stage5 4WD Grillo FD 2200TS Stage5 4WD Grillo FD 2200TS Stage5 4WD Grillo FD 2200TS Stage5 4WD

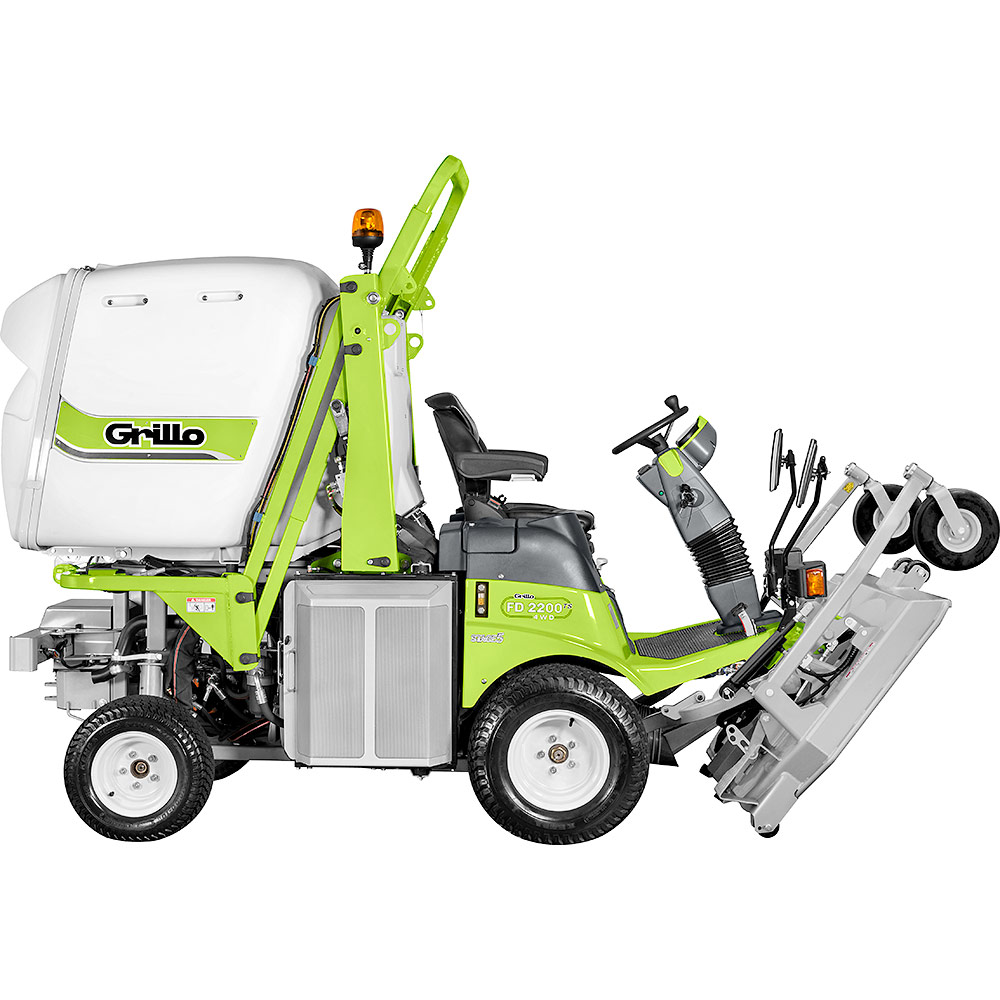

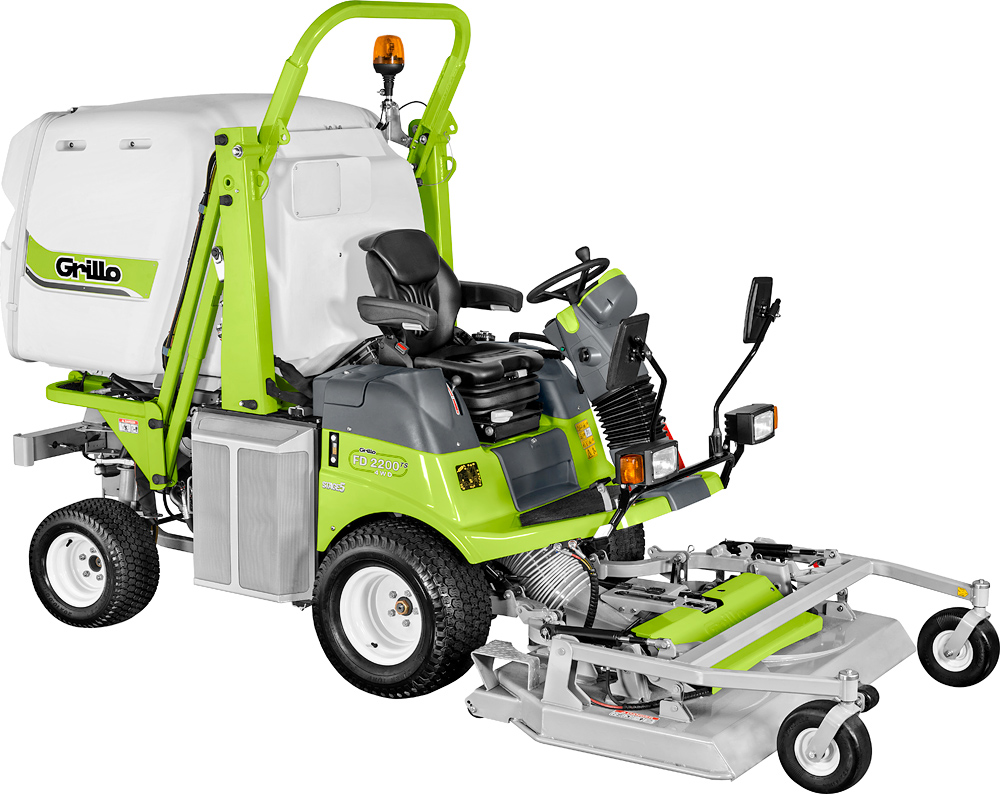

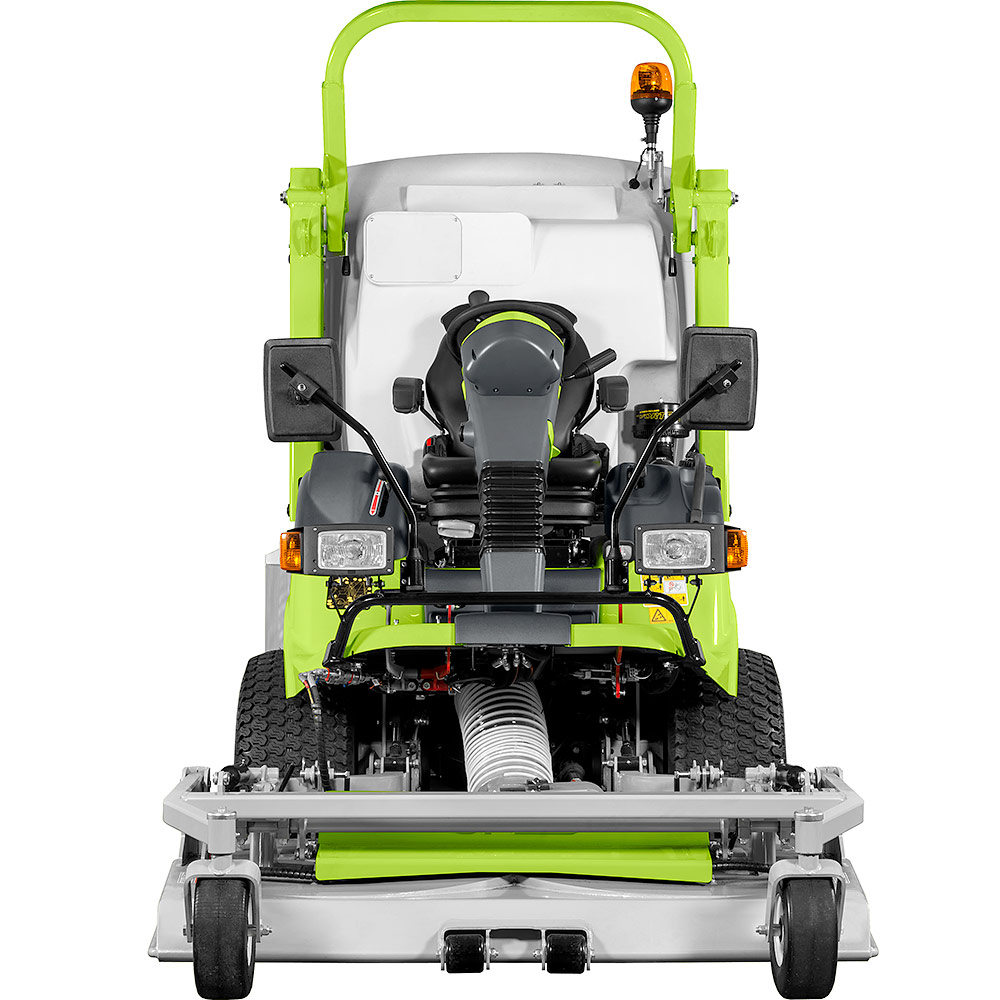

The FD 2200 TS represents the maximum expression of technology and performance that can be achieved by today's hydrostatic mowers with collection.

It has 4 permanent drive wheels, front cutting deck, large grass collection container and raised discharge height. The state-of-the-art, powerful and reliable engine has low polluting emissions and complies with international STAGE 5 standards.

The 60 cm turning radius, the unique manoeuvrability, the maximum stability on slopes, the excellent cutting capacity of the robust front deck and a collection system capable of compacting the grass inside the large grass catcher, are able to satisfy every demanding operator who is attentive to the quality of his work.



Technical data sheet
Technical data sheet FD 2200TS Stage5 4WD
Engine Yanmar 4TNV88C Stage5
Start electric, with 12 V battery
Supply diesel
Displacement 2190 cc, 4 Cylinders
Power 47 HP (34.3 kW)
Liquid cooled with hydraulic impeller and equipped with automatic radiator cleaning device
Dry air filter with interchangeable filter cartridges, safety filter and prefilter
Fuel tank capacity 50 L
Hydraulic oil tank 25 L
Traction hydraulic, 4 wheel drive (permanent even with narrow turning radius)
Gearbox hydrostatic transmission with hydraulic motors on the 4 wheels
Clutch hydraulic, with electric control activated through PTO and with blade brake
Cutting height hydraulic adjustable from 2 to 12 cm

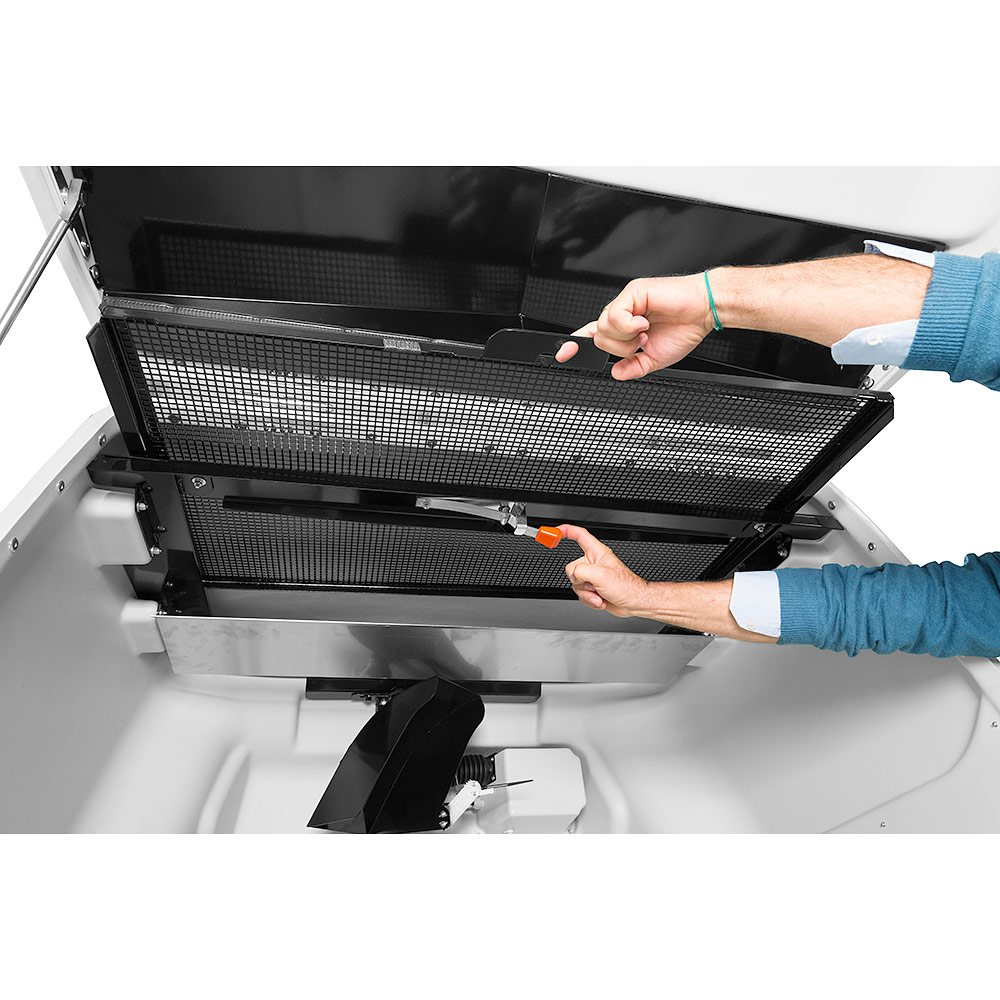

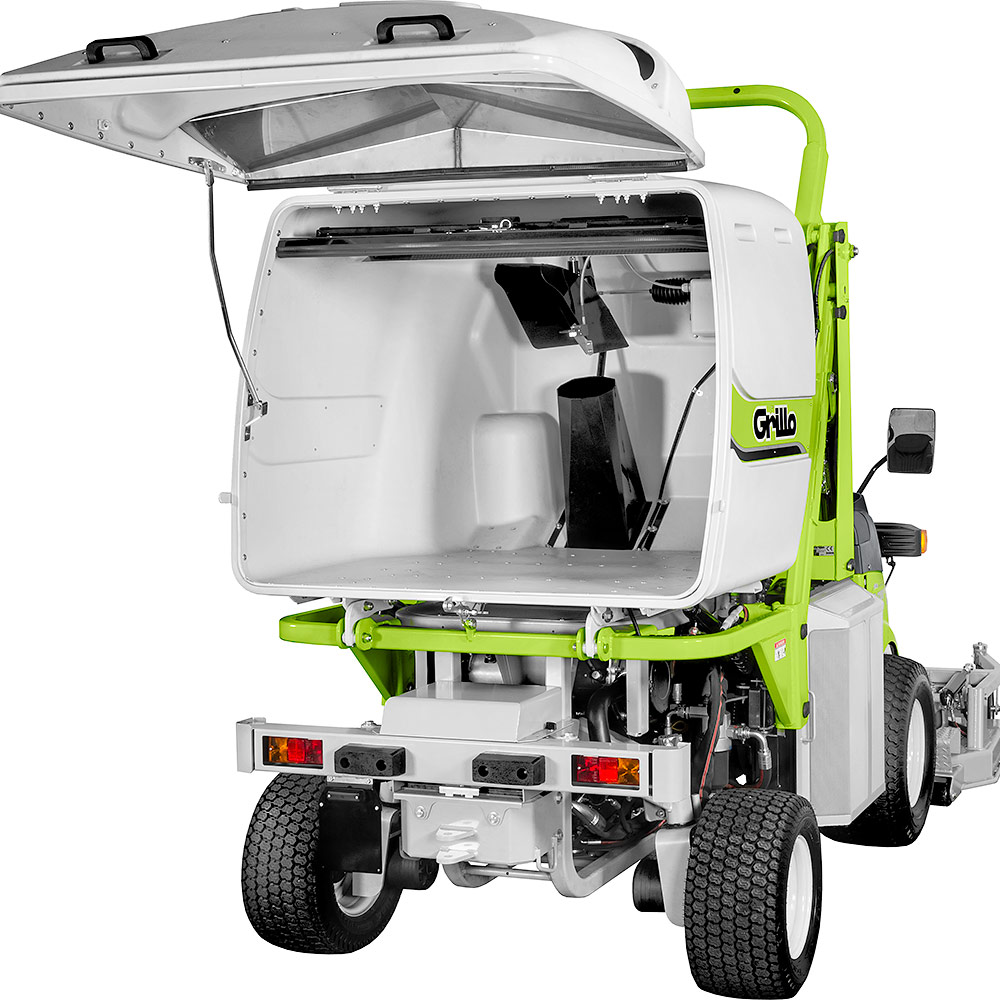

Grass collector capacity 1400 L
Grass catcher charging system Ø 400 cm (16 “) turbine with hydraulic motor fitted with a safety valve to avoid damage due to foreign objects. Turbine activation independent of the cutting deck. Double working speed.

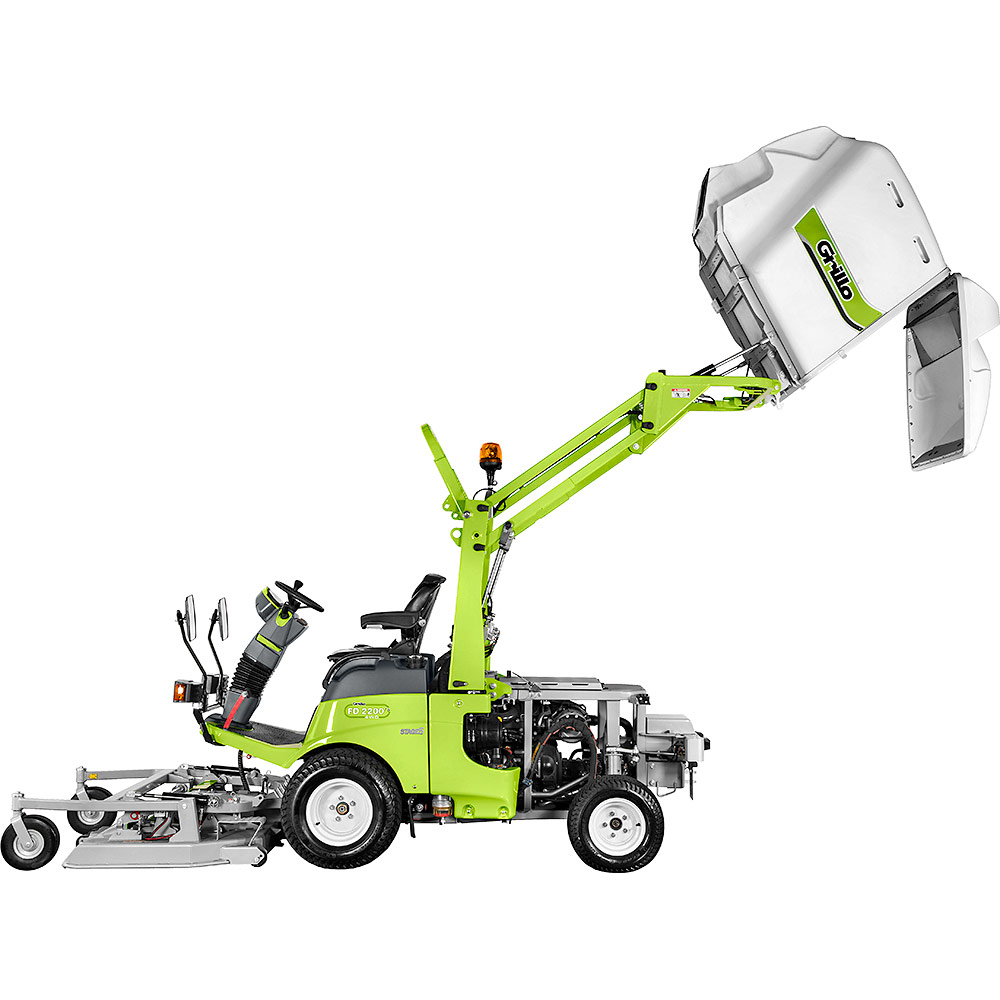

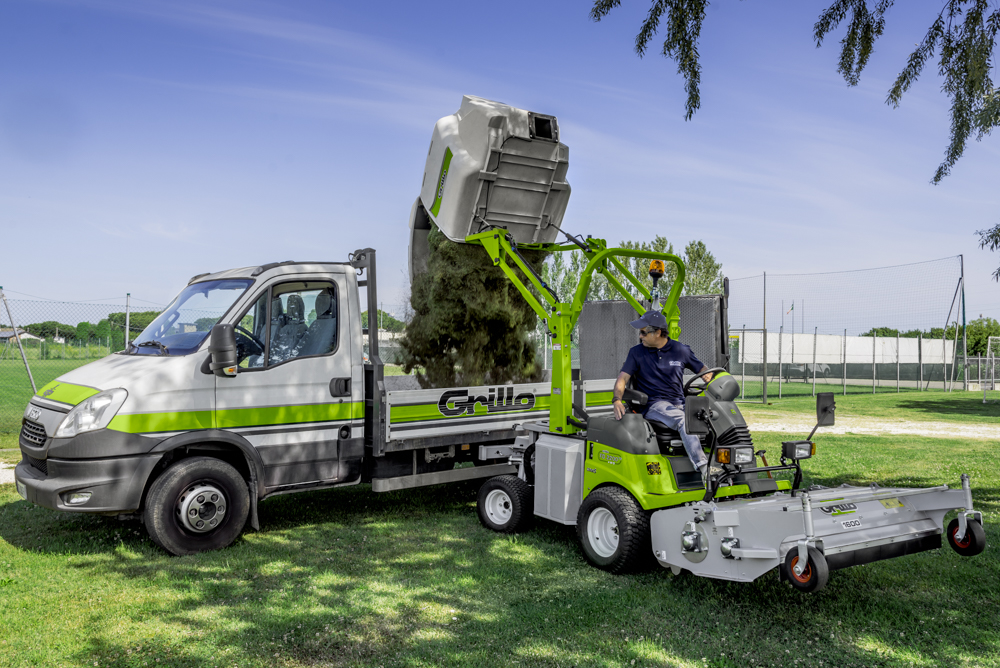

Grass collector discharging system hydraulic grass catcher emptying with automatic opening
Maximal discharging height 250 cm
Rear projection 50 cm
Differential locking self-engaging and manual with push button
Front tyres 24x12.00-12 garden
Rear tyres 20x10.00-10 garden

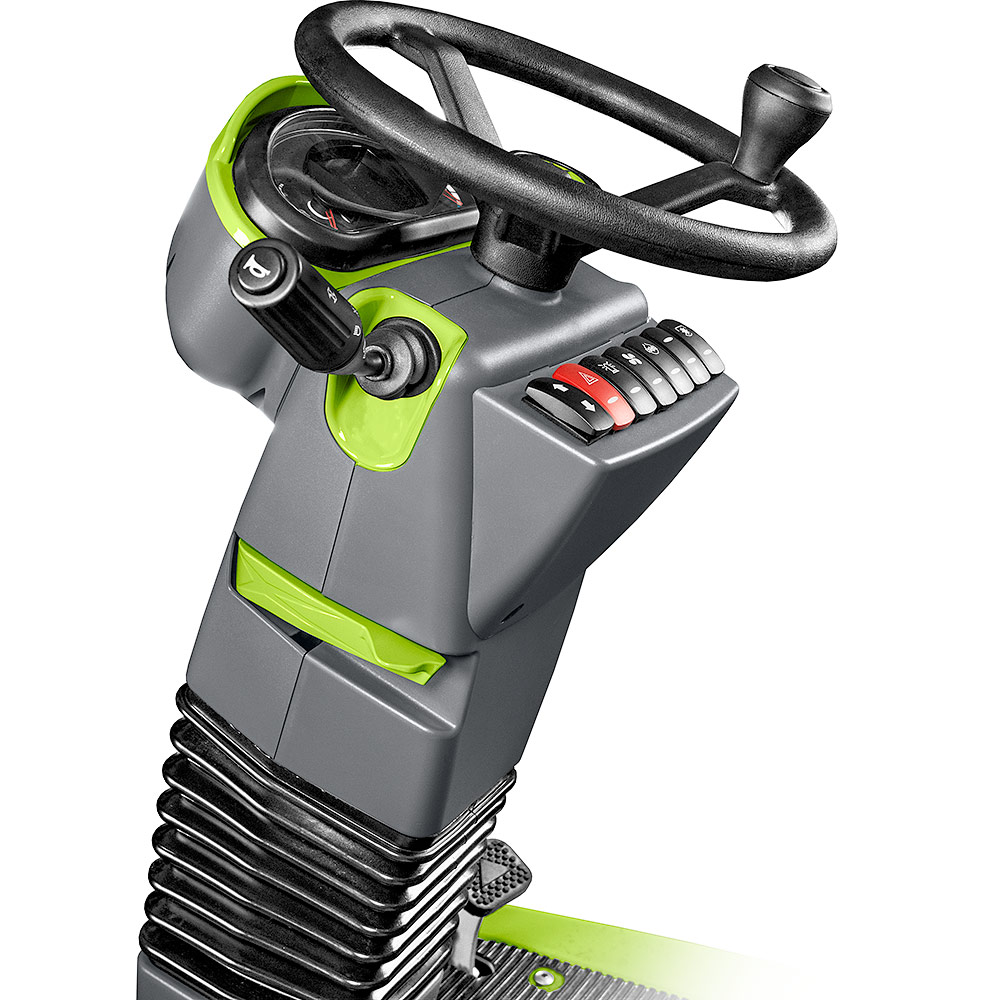

Steering system steering wheel with hydraulic drive
Speed from 0 to 22 km/h continuously variable
Inner turning radius 62 cm

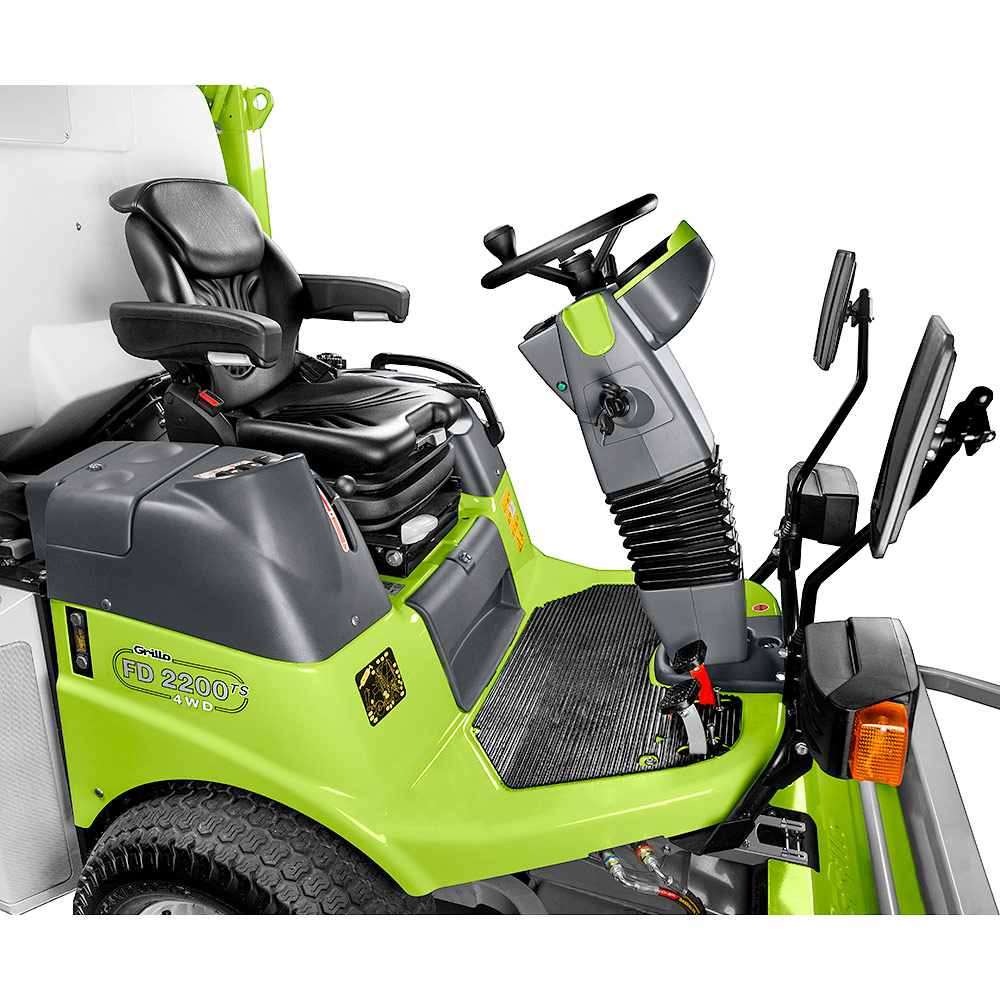

Seat super comfort adjustable and sprung seat with armrests
Mowing capacity per hour (indicative) 15500 m^2/h
Standard features automatic disengagement of blade and turbine when grass catcher is full. Hydraulic deck lifting and grass catcher emptying. Lights and indicators kit

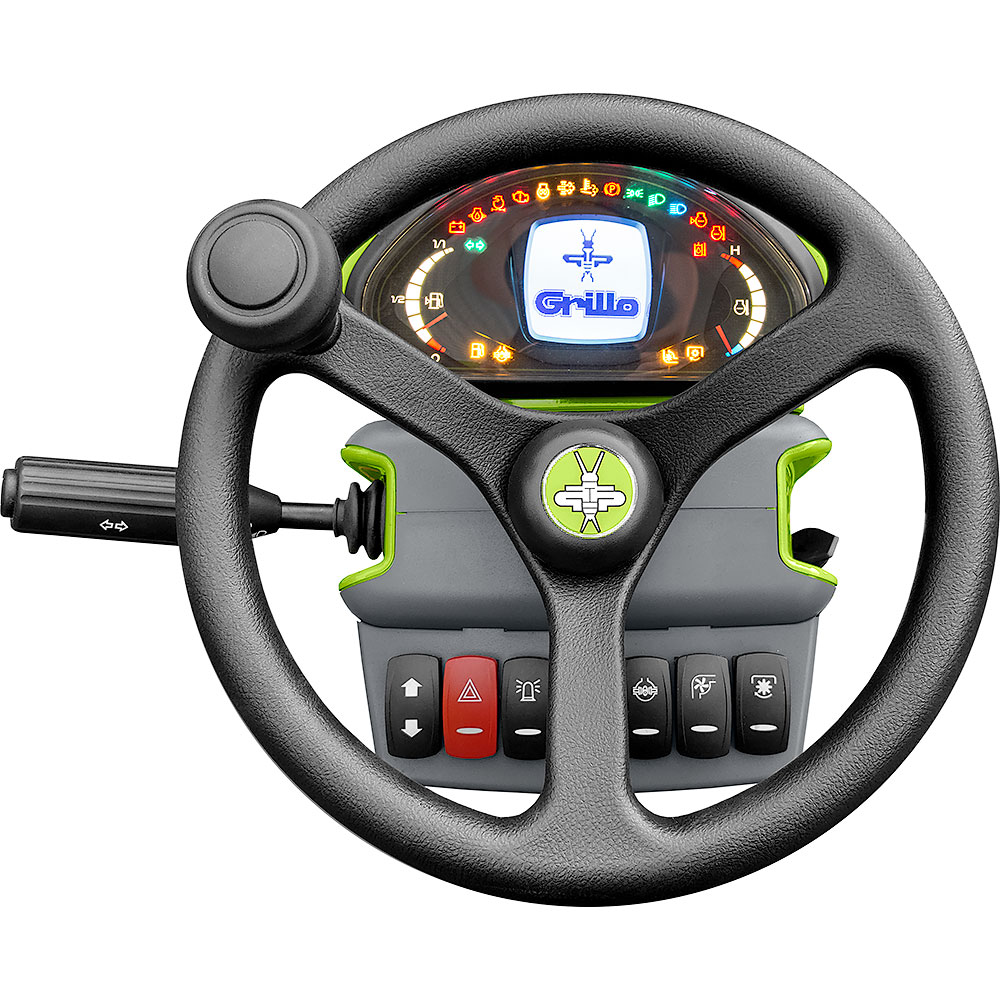

Standard features digital display with rpm indication and safety micro-switches control
Length 281 cm without cutting deck - 364 cm with cutting deck [p/n. 9M5211]
Width 138 cm without cutting deck - 162 cm with cutting deck [p/n. 9L9611]

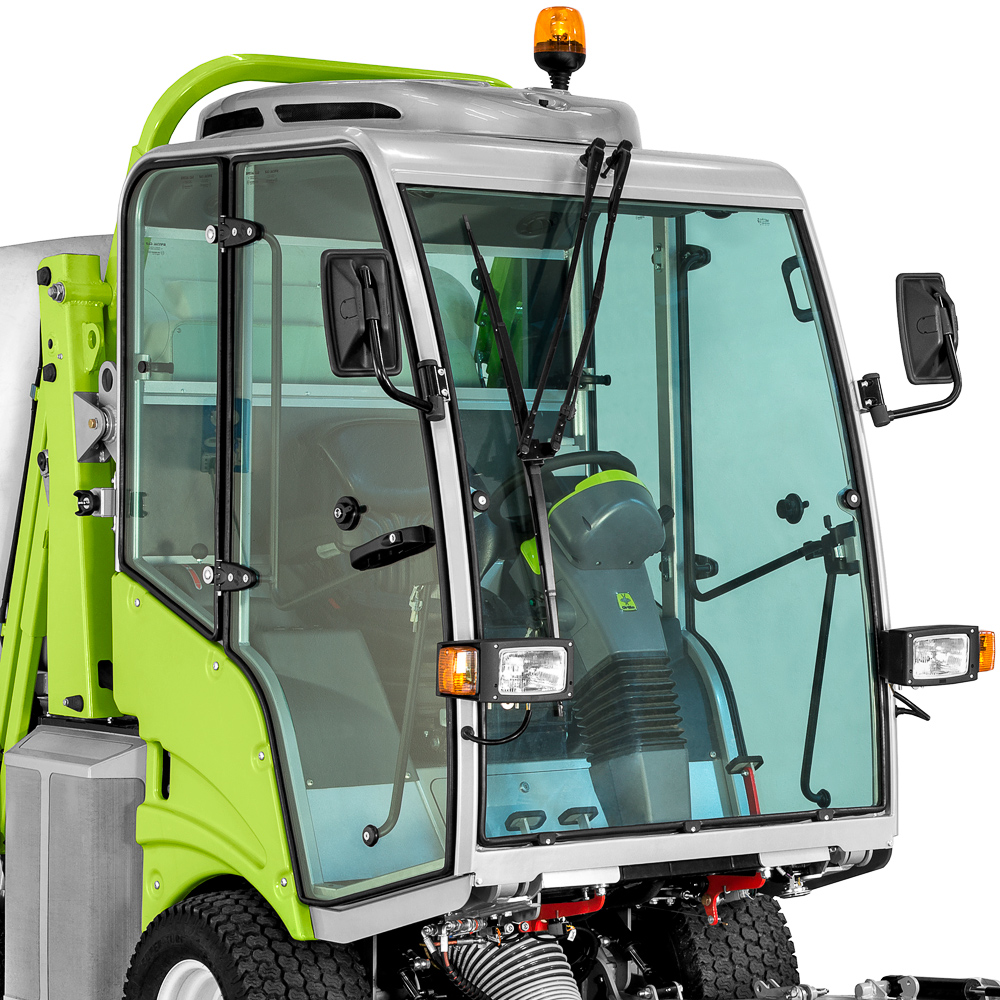

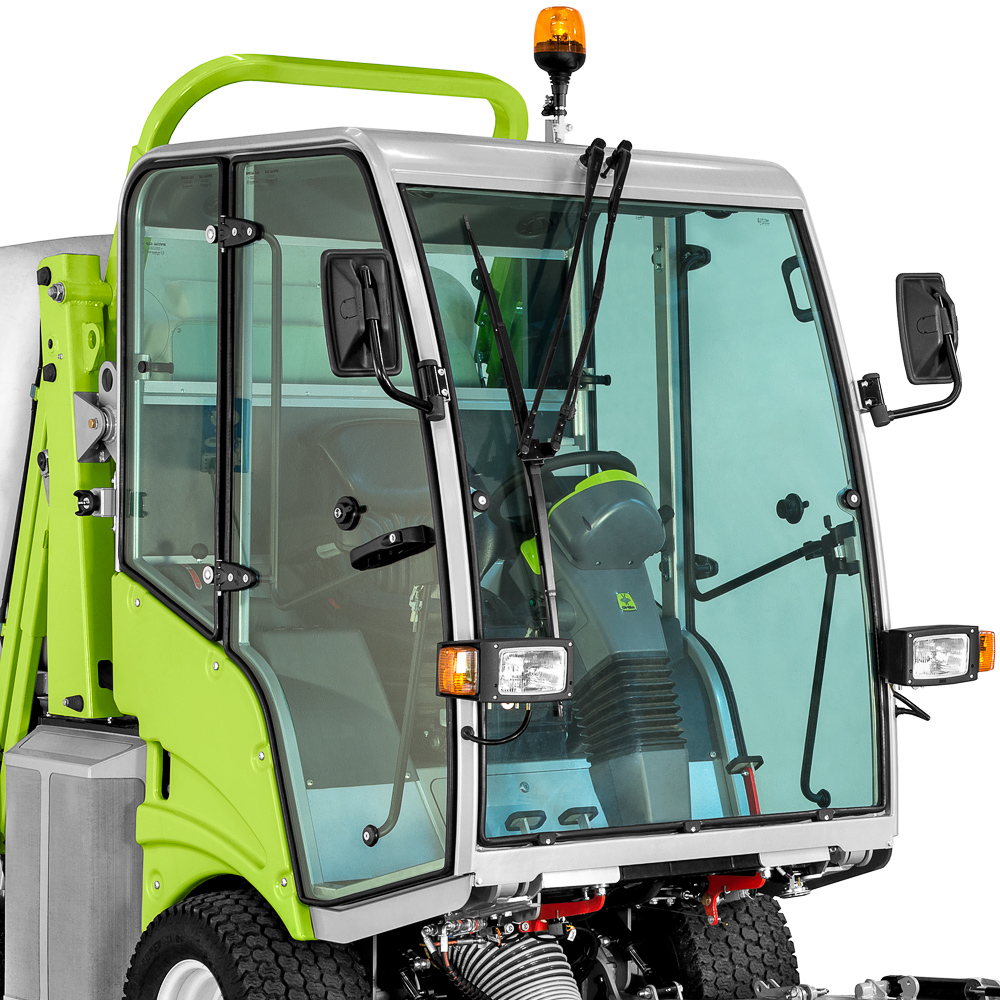

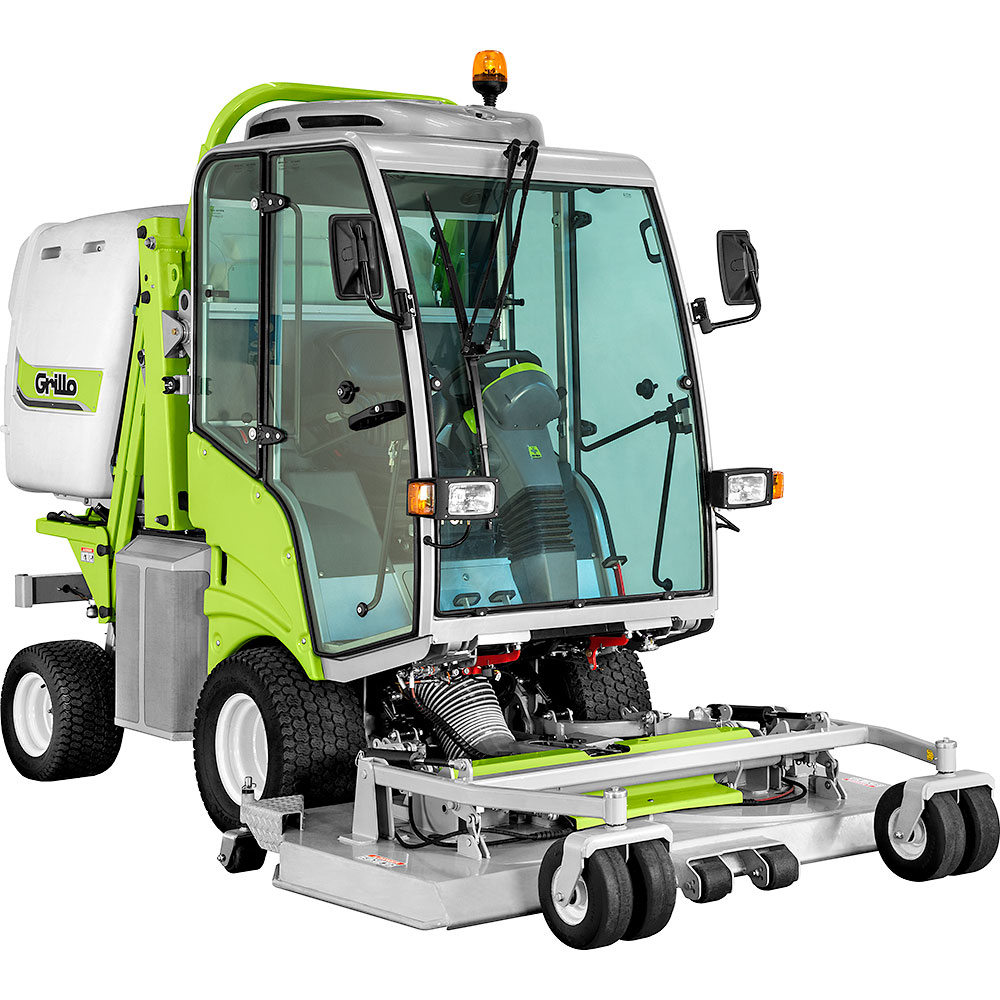

Height 199 cm (with roll bar or cabin 231 cm)
Distance between axles 141 cm
Clear span from the ground 16 cm
Weight 1385 kg without cutting deck - 1656 kg [p/n. 9M5211]

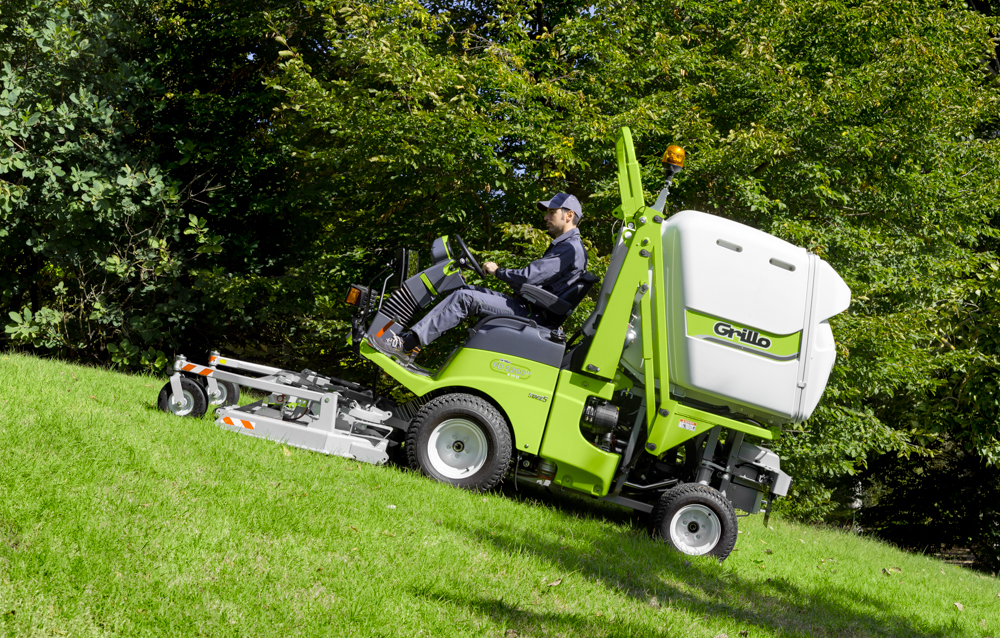

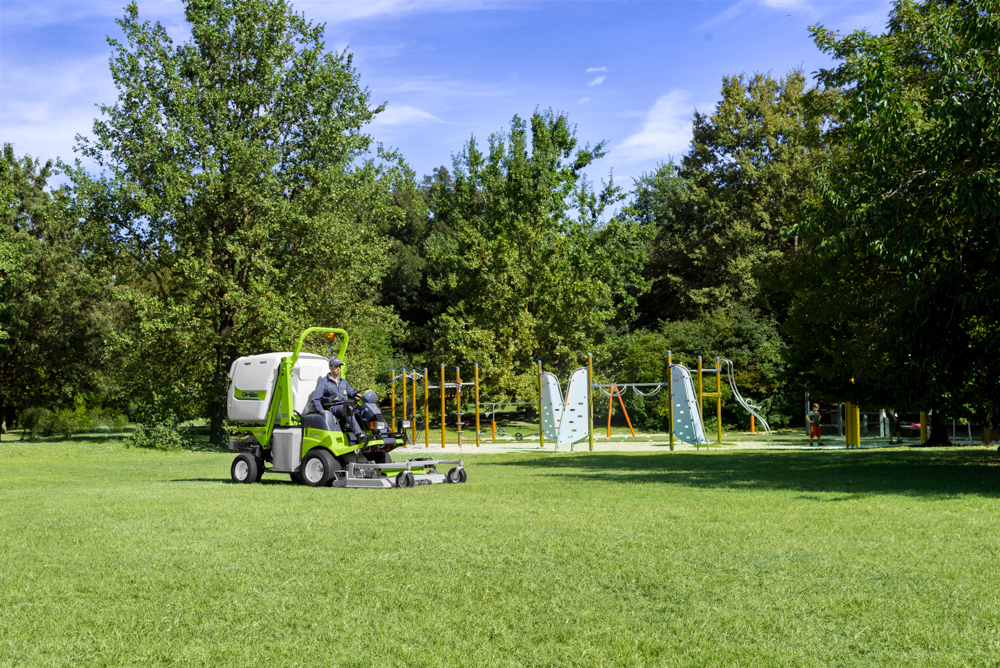

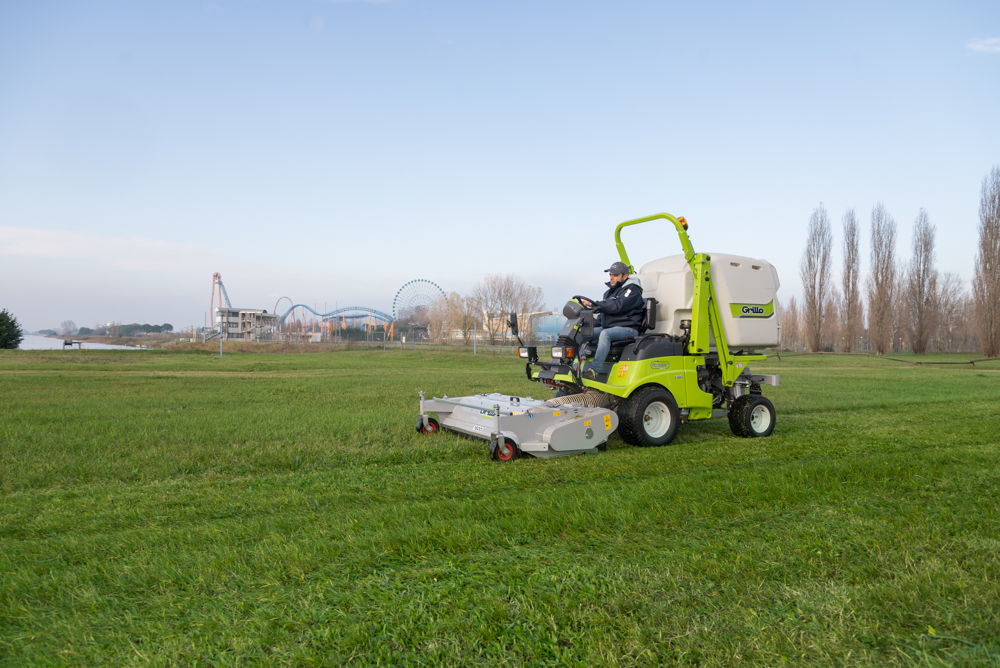

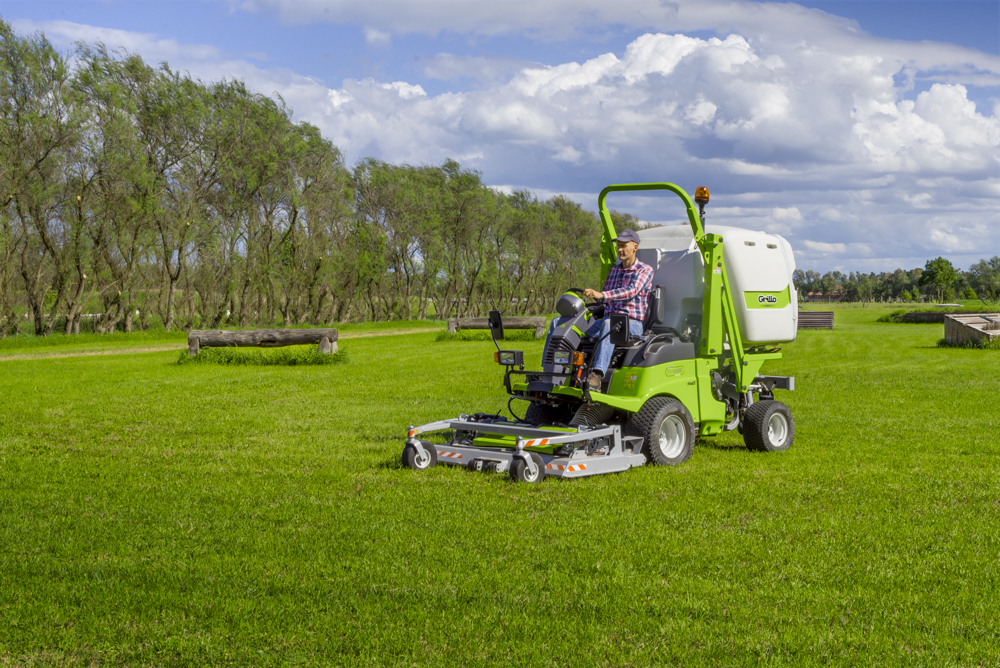

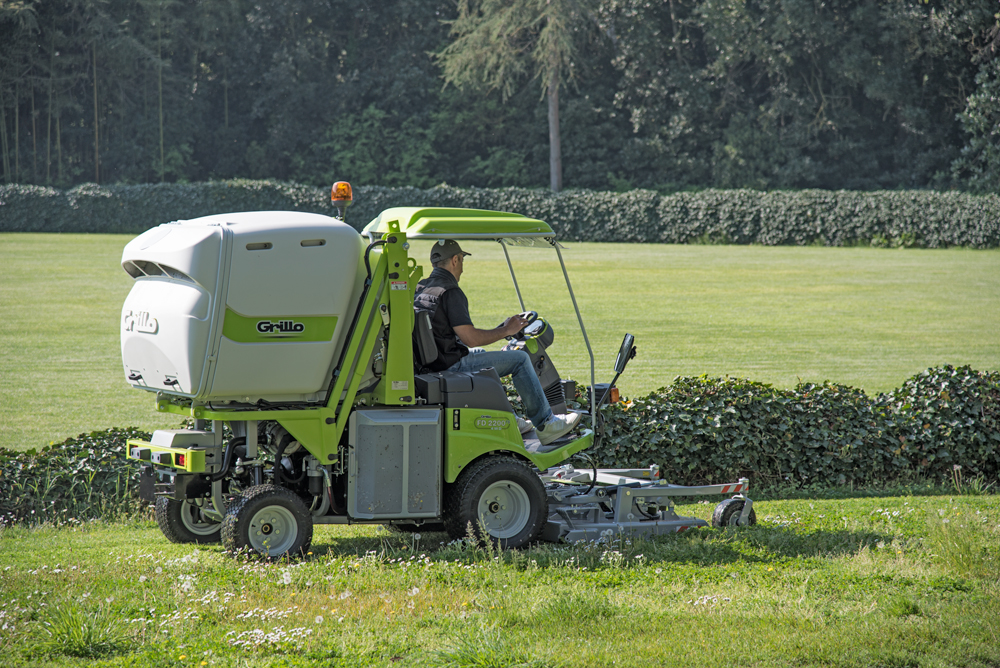

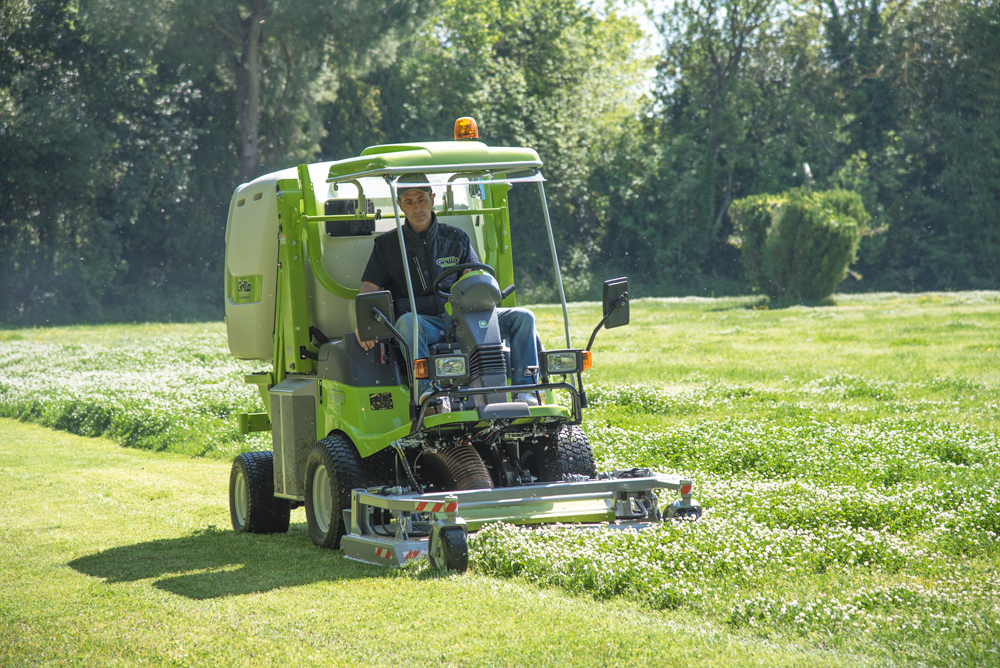

In action! Photos and Videos
In action! Photos and Videos
FD 2200TS Stage5 4WD
FD 2200TS Stage5 4WD
FD 2200TS Stage5 4WD
FD 2200TS Stage5 4WD
Grillo FD 2200TS Stage5 4WD
Grillo FD 2200TS Stage5 4WD
Grillo FD 2200TS Stage5 4WD
Grillo FD 2200TS Stage5 4WD
Grillo FD 2200TS Stage5 4WD
Grillo FD 2200TS Stage5 4WD
Grillo FD 2200TS Stage5 4WD
Grillo FD 2200TS Stage5 4WD
Grillo FD 2200TS Stage5 4WD
Grillo FD 2200TS Stage5 4WD
Implements
Implements FD 2200TS Stage5 4WD

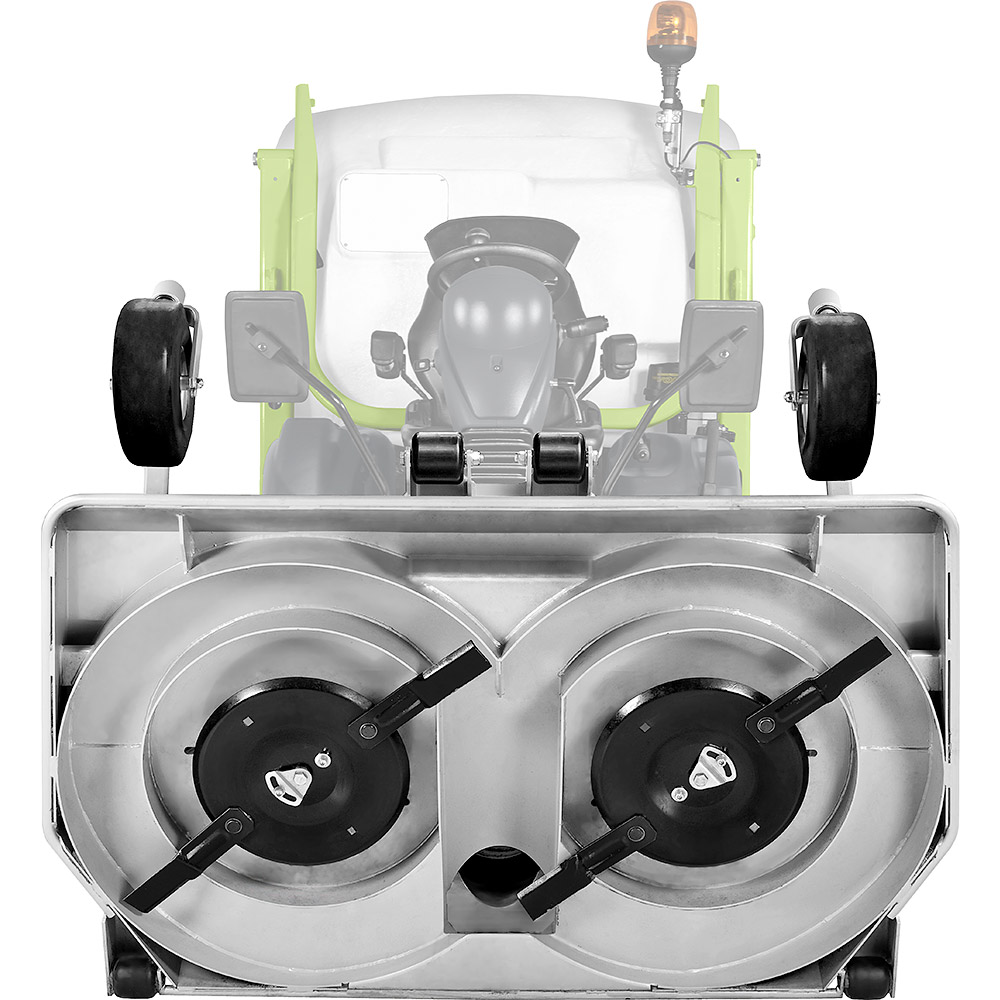

155 cm cutting deck with collection and mulching kit

9M5211
to be applied on FD 2200TS Stage5 4WD
item no.: 9M5211
weight: 250 kg

Electrically operated hydraulic cutting height adjustment, hydraulic maintenance position.

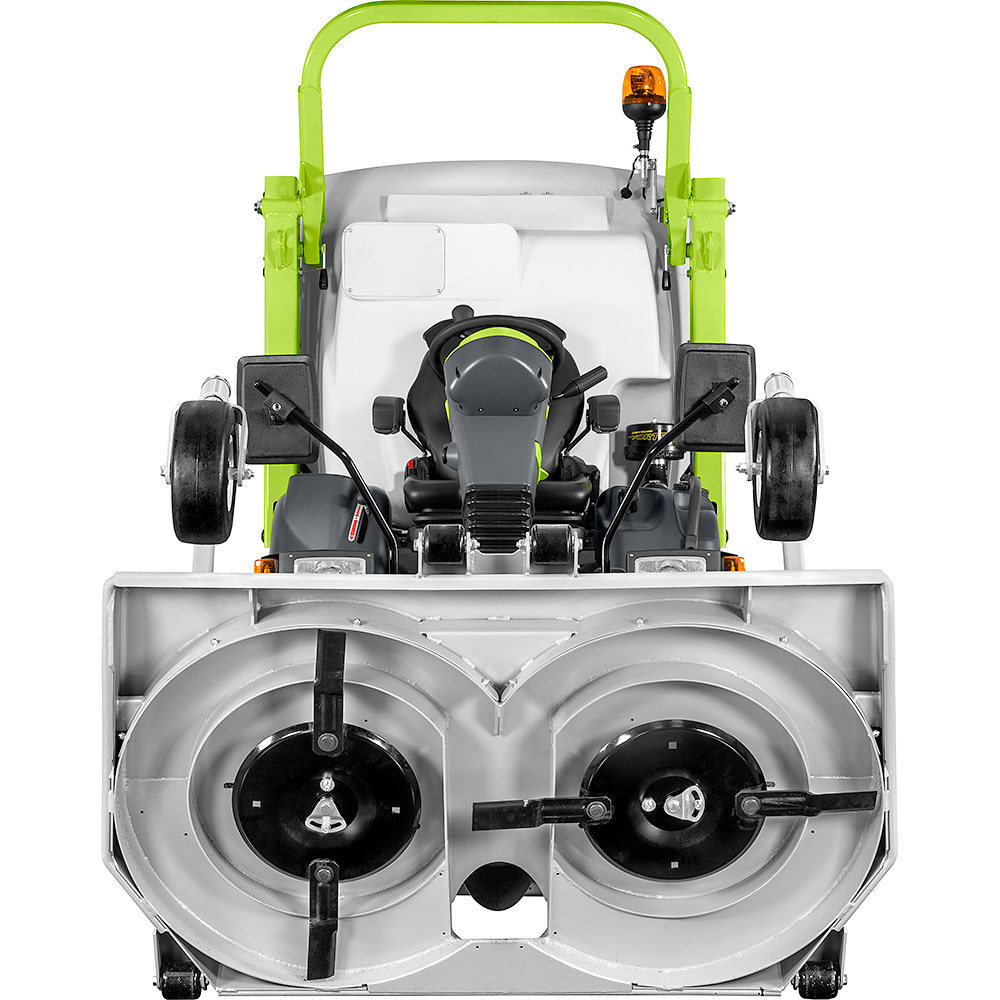

180 cm cutting deck with collection and mulching kit.

9M5911
to be applied on FD 2200TS Stage5 4WD
item no.: 9M5911
weight: 320 kg

Electrically operated hydraulic cutting height adjustment, hydraulic maintenance position.

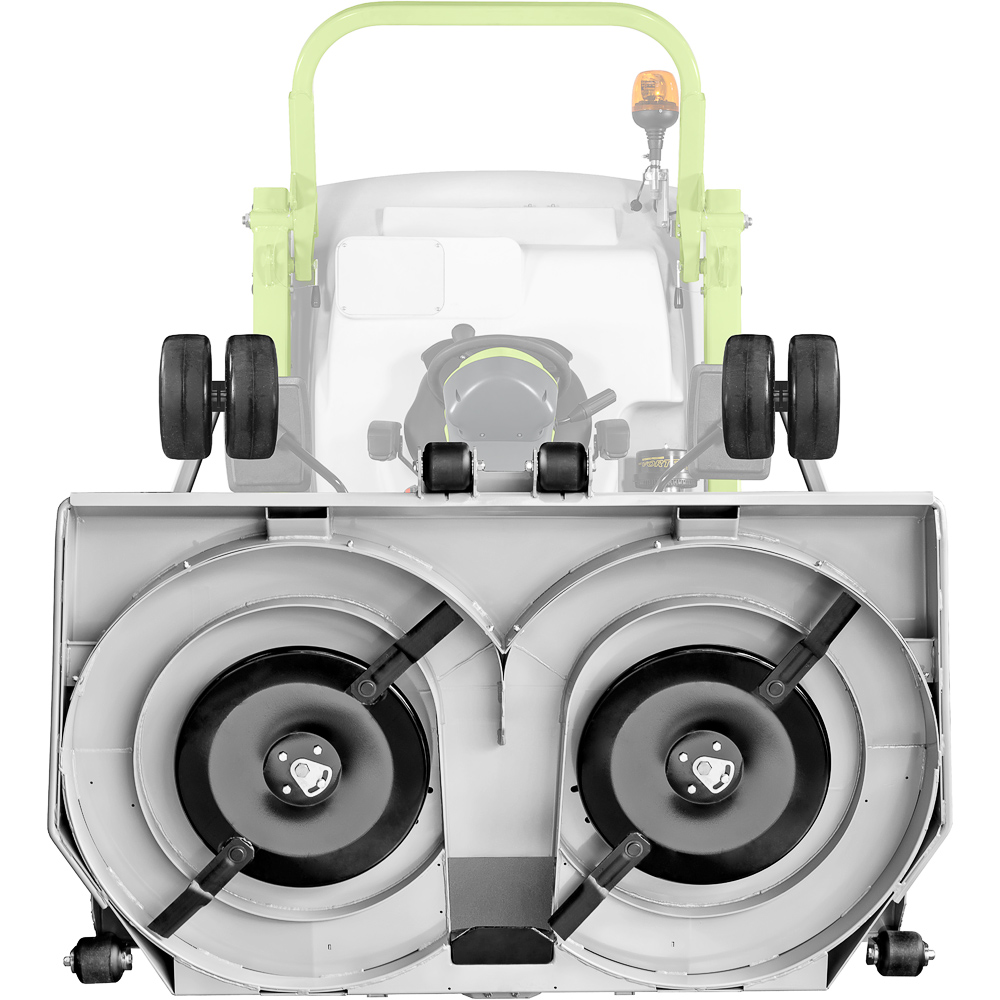

Cutting deck LMP 160 cm

9M4511
to be applied on FD 13.09 Stage5 4WD - FD 2200 Stage5 4WD - FD 2200TS Stage5 4WD - FM 13.09 Stage5 4WD
item no.: 9M4511
weight: 170 kg

Three functions:

  • side discharge
  • mulching
  • rear discharge

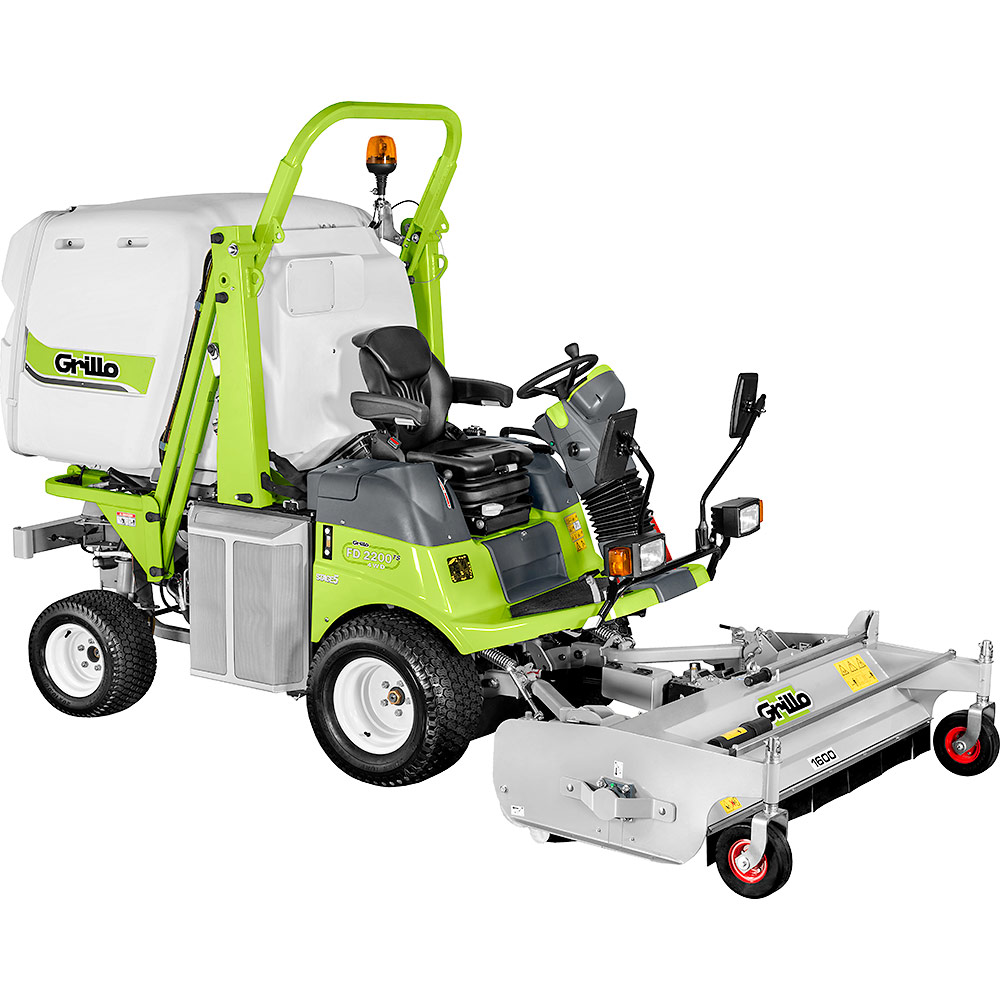

All purpose flail 160 cm

9G5122
to be applied on FD 13.09 Stage5 4WD - FD 2200 Stage5 4WD - FD 2200TS Stage5 4WD - FM 13.09 Stage5 4WD - FM 2200 Stage5 4WD
item no.: 9G5711
weight: 240 kg

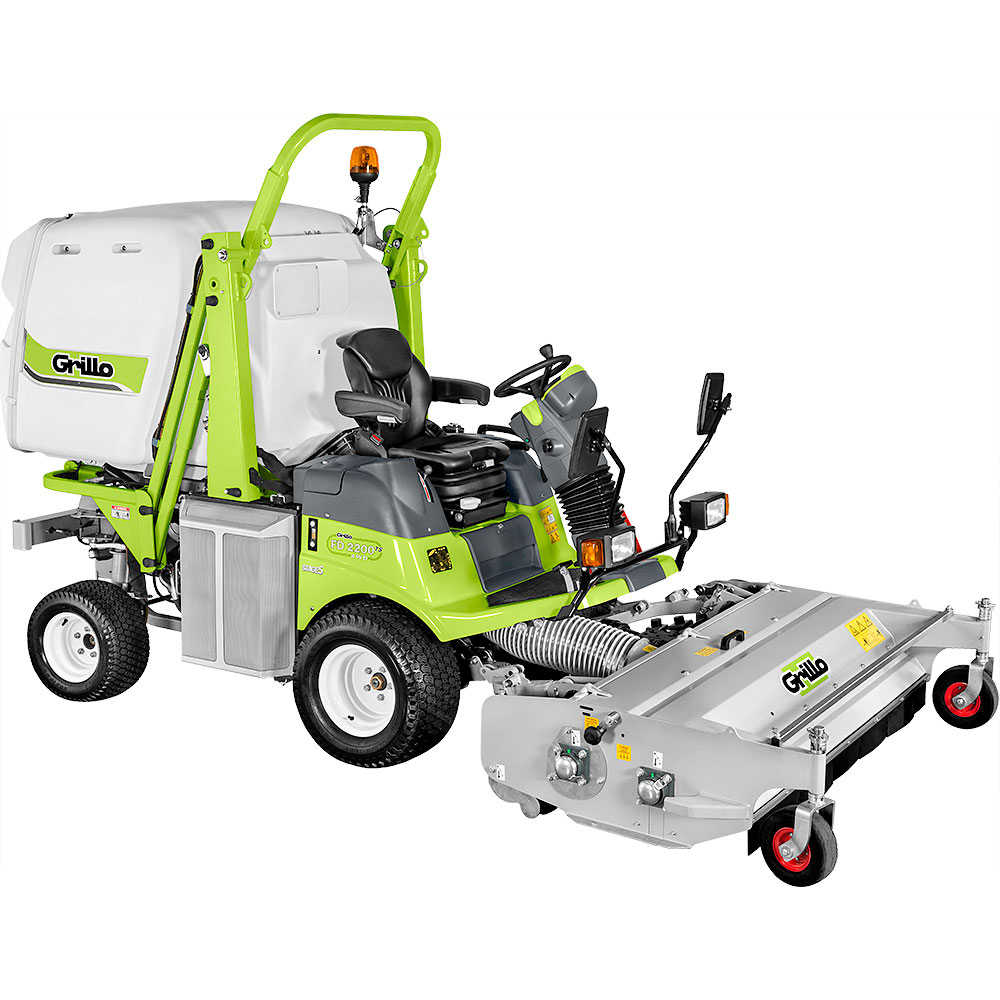

All purpose flail 160 cm with collection new

9G8811
to be applied on FD 2200 Stage5 4WD - FD 2200TS Stage5 4WD
item no.: 9G8811
weight: 270 kg

9G7122
to be applied on FD 13.09 Stage5 4WD - FD 2200 Stage5 4WD - FD 2200TS Stage5 4WD - FM 13.09 Stage5 4WD - FM 2200 Stage5 4WD
item no.: 9G7122
weight: 9 kg

Blades scarifier Kit

9G5822
to be applied on FD 13.09 Stage5 4WD - FD 2200 Stage5 4WD - FD 2200TS Stage5 4WD - FM 13.09 Stage5 4WD - FM 2200 Stage5 4WD
item no.: 9G5822
weight: 4.5 kg

Hydraulic kit for implements

9G7511
to be applied on FD 2200TS Stage5 4WD
item no.: 9G7511
weight: 7 kg

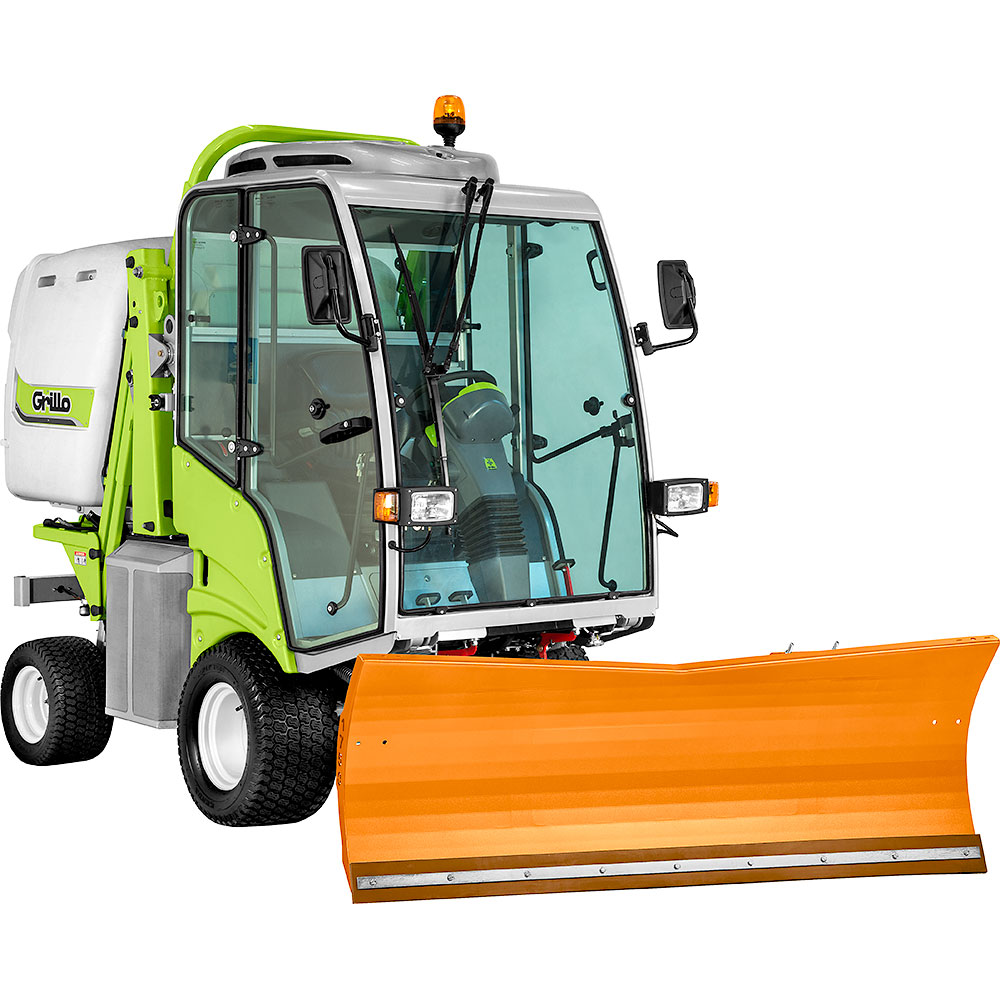

Front blade 175 cm with rubber end (for FD 2200 cod. 9B6712 needed)

Floating front blade 175 cm + rubber end - COD. 9G0822
to be applied on FD 2200 Stage5 4WD - FD 2200TS Stage5 4WD - FM 2200 Stage5 4WD
item no.: 9G0822
weight: 200 kg

The orientable front blade allows to rapidly free pathways from snow and ice; it's also useful for removing stone piles or sand heaps.
All blade's movements are hydraulically controlled; the blade can be lifted up and inclined laterally + / - 30°.
The rubber end helps avoiding damages on stone pavings and streets.
Hydraulic kit is needed with this implement.


941911
to be applied on FD 2200TS Stage5 4WD
item no.: 941911
weight: 260 kg

942011
to be applied on FD 2200TS Stage5 4WD
item no.: 942011
weight: 280 kg

to be applied on FD 2200TS Stage5 4WD
item no.: 942011AF
weight: 280 kg
