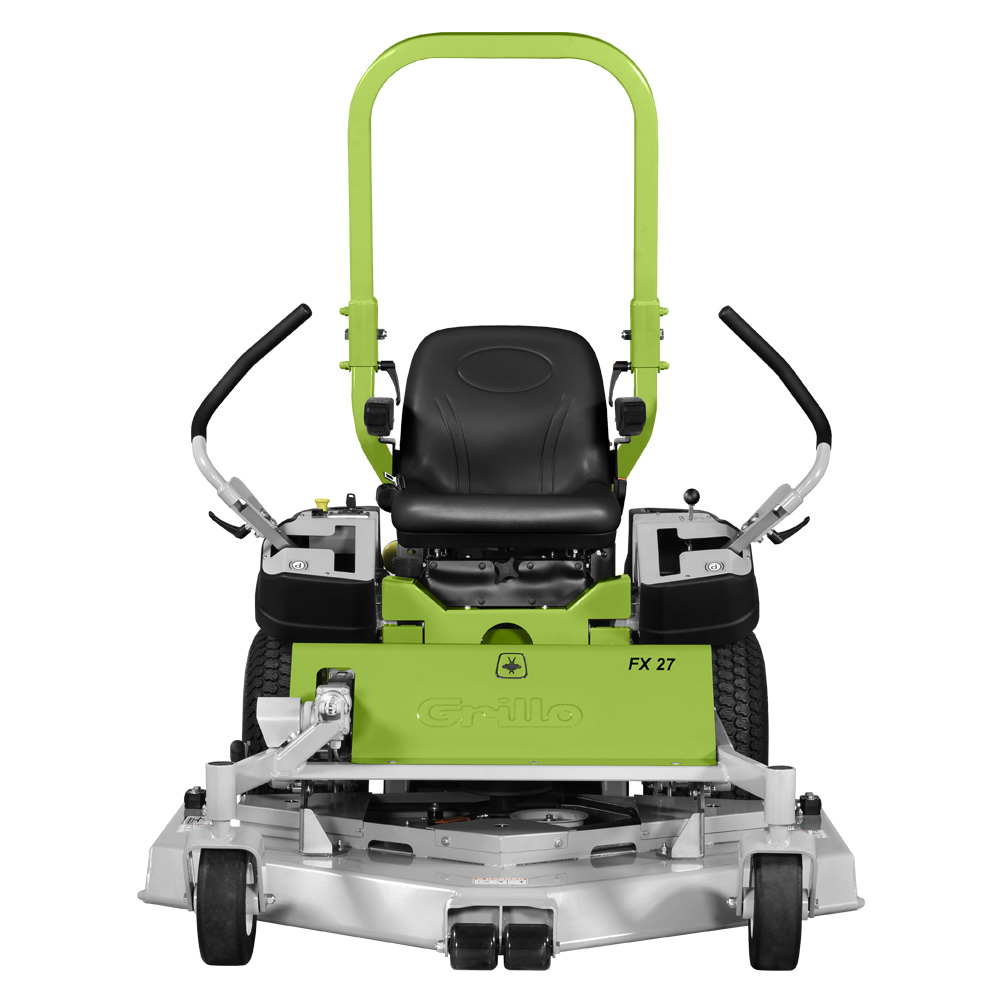

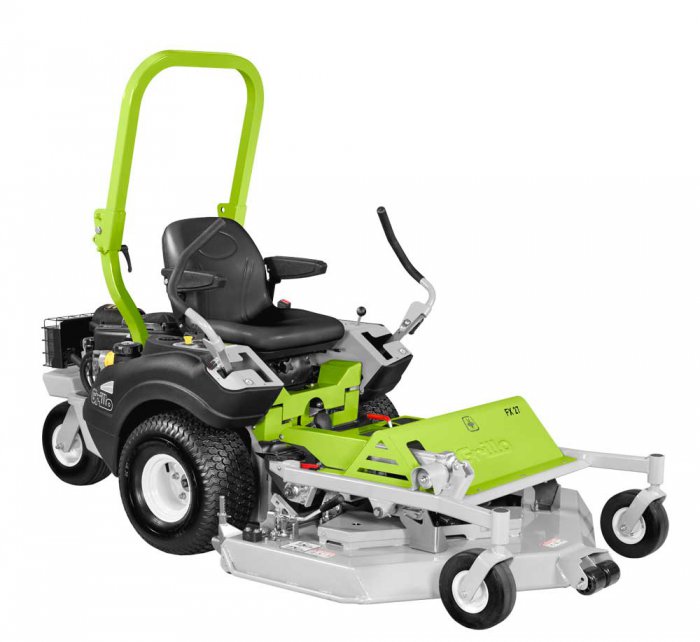

FX 27


Grillo FX 27 Grillo FX 27 Grillo FX 27

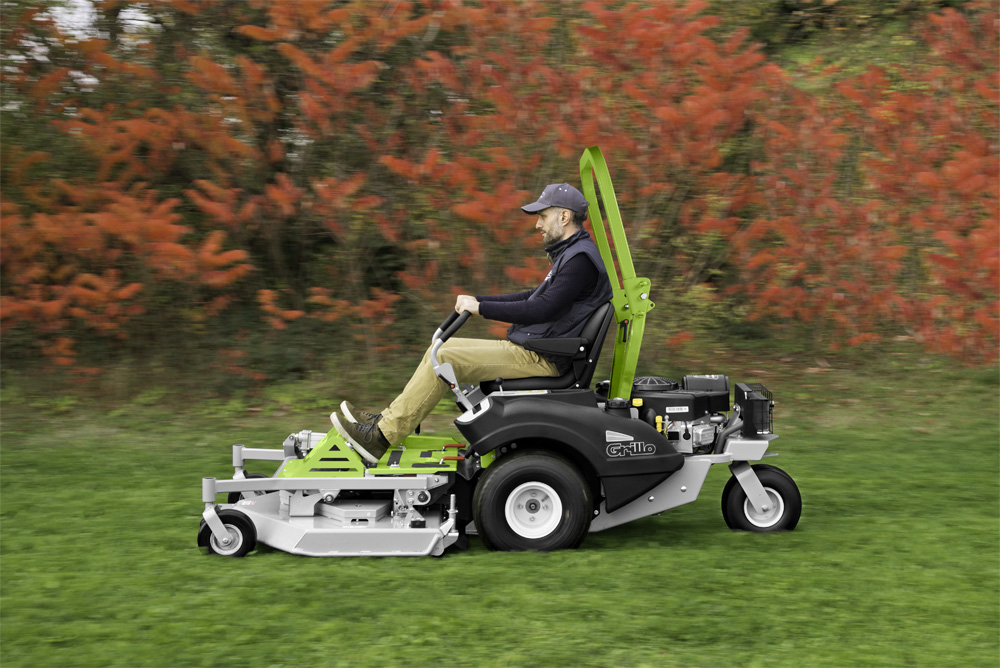

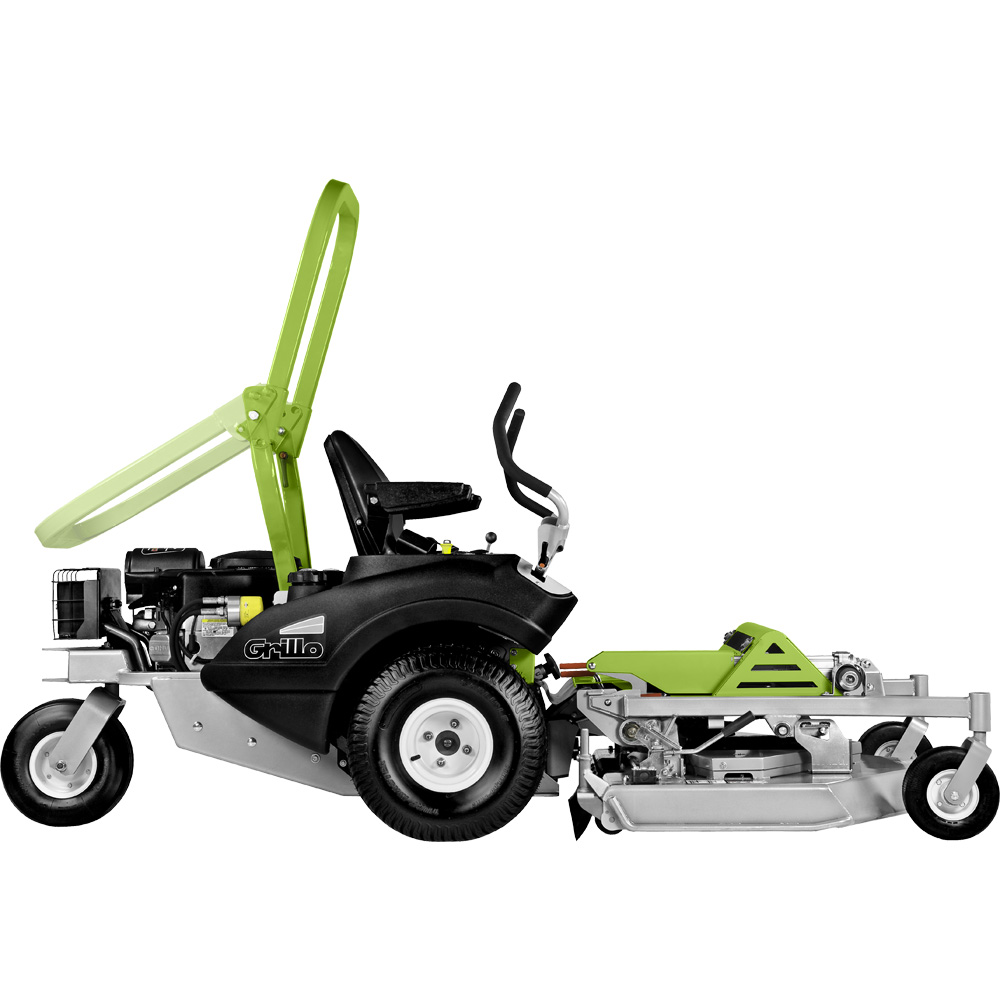

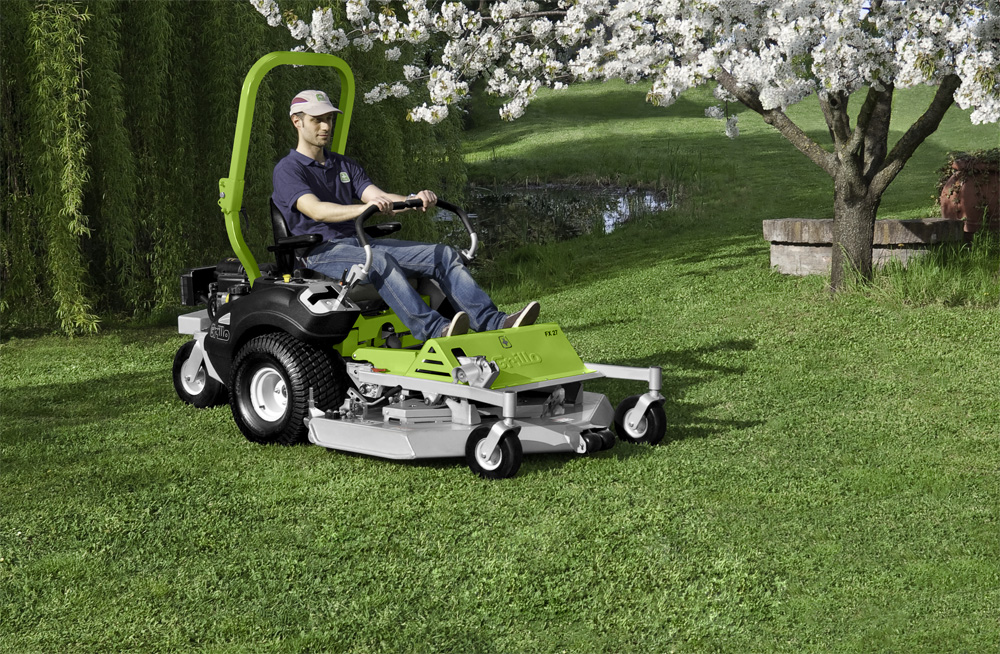

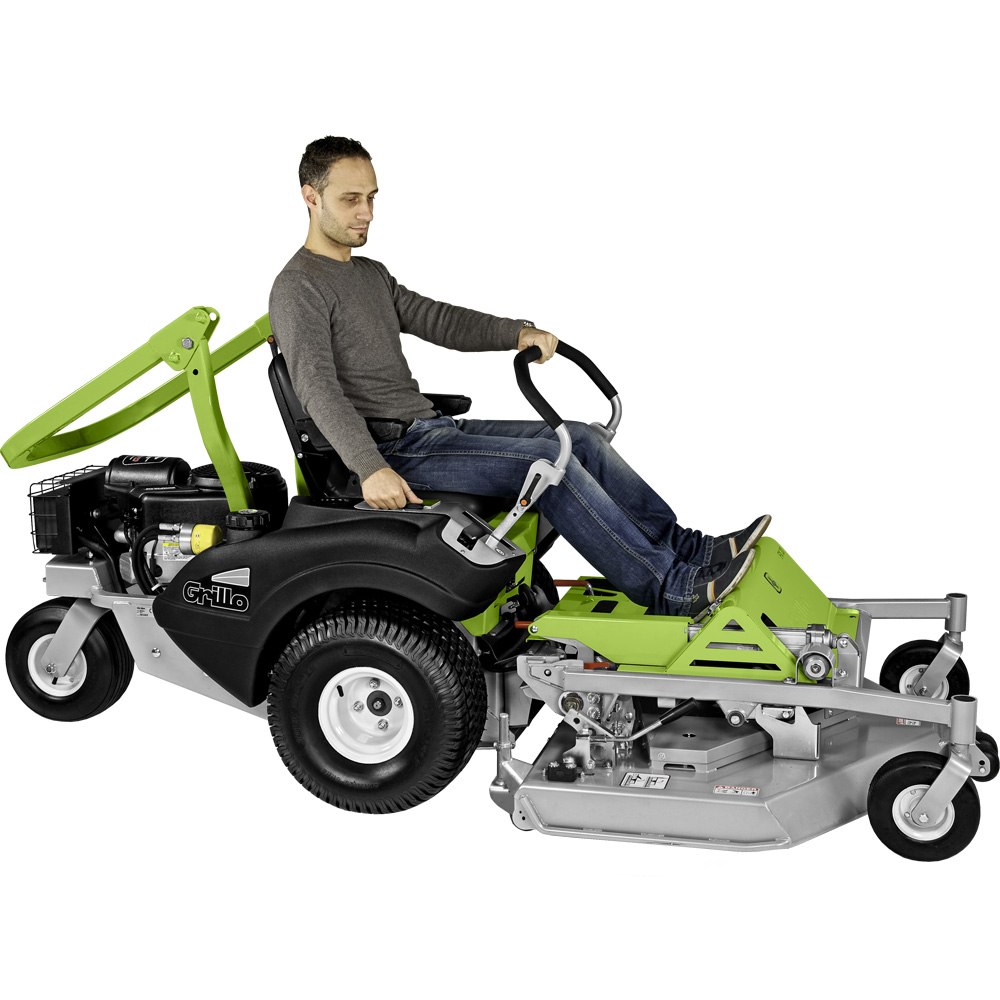

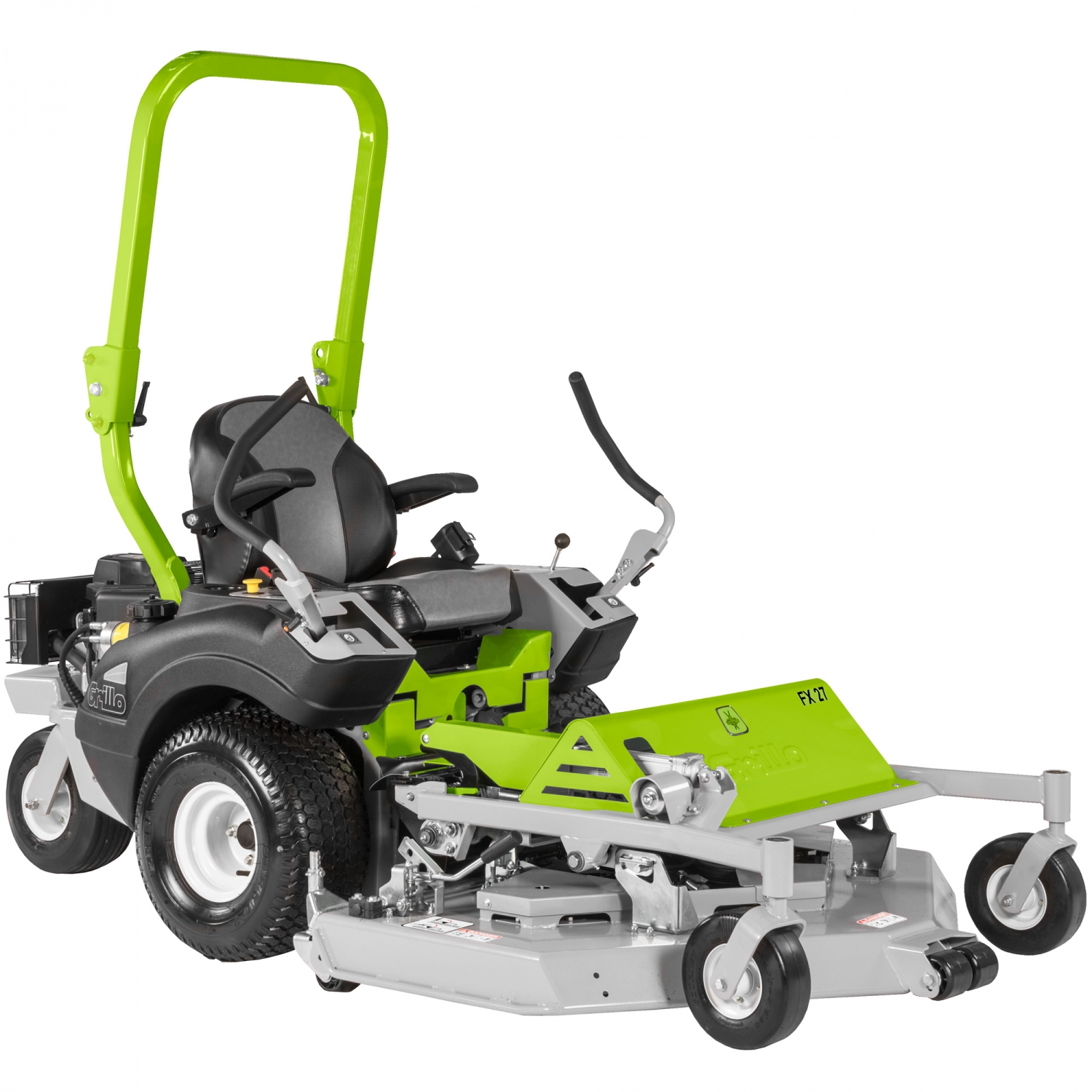

The FX27 is the ideal lawn mower for professional and private lawn care.
The maneuverability ensured by the hydro static lever steering, the compact dimensions and the high-performance engine allow you to mow your lawn at high speed! Even confined spaces and environments full of obstacles will no longer be a problem with the Grillo FX27!
The cut will always have an excellent finish whether in Mulching mode, suitable for frequently cut grass, or in rear discharge mode suitable for very tall grass.
Switching from Mulching to rear discharge has never been easier! The 'Quick Shift' lever allows you to change working modes while remaining comfortably seated in the driver's seat.

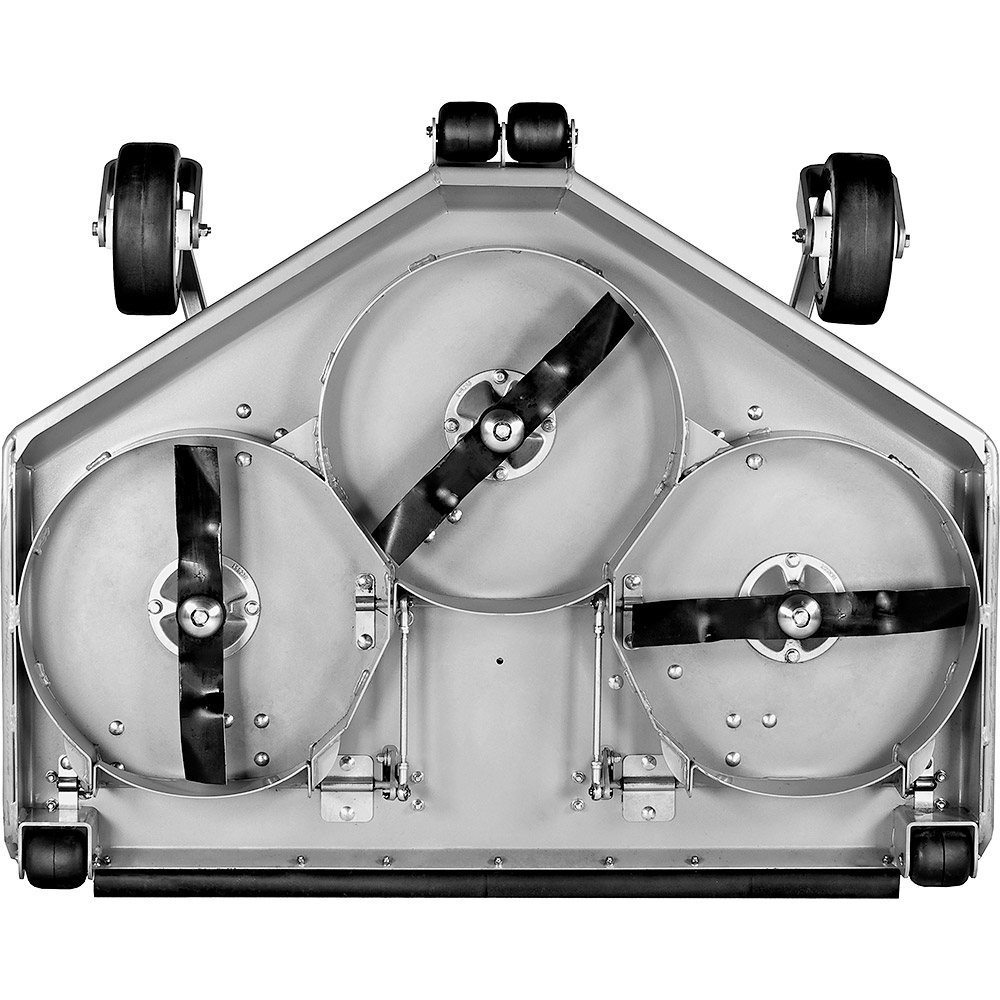

The 3-blade deck is 132 cm wide. It is located in a forward position and totally overhangs the operator to facilitate approaching obstacles and allows for greater working visibility.

The maneuverability is great!
Zero Turn means a minimum turning radius of zero.

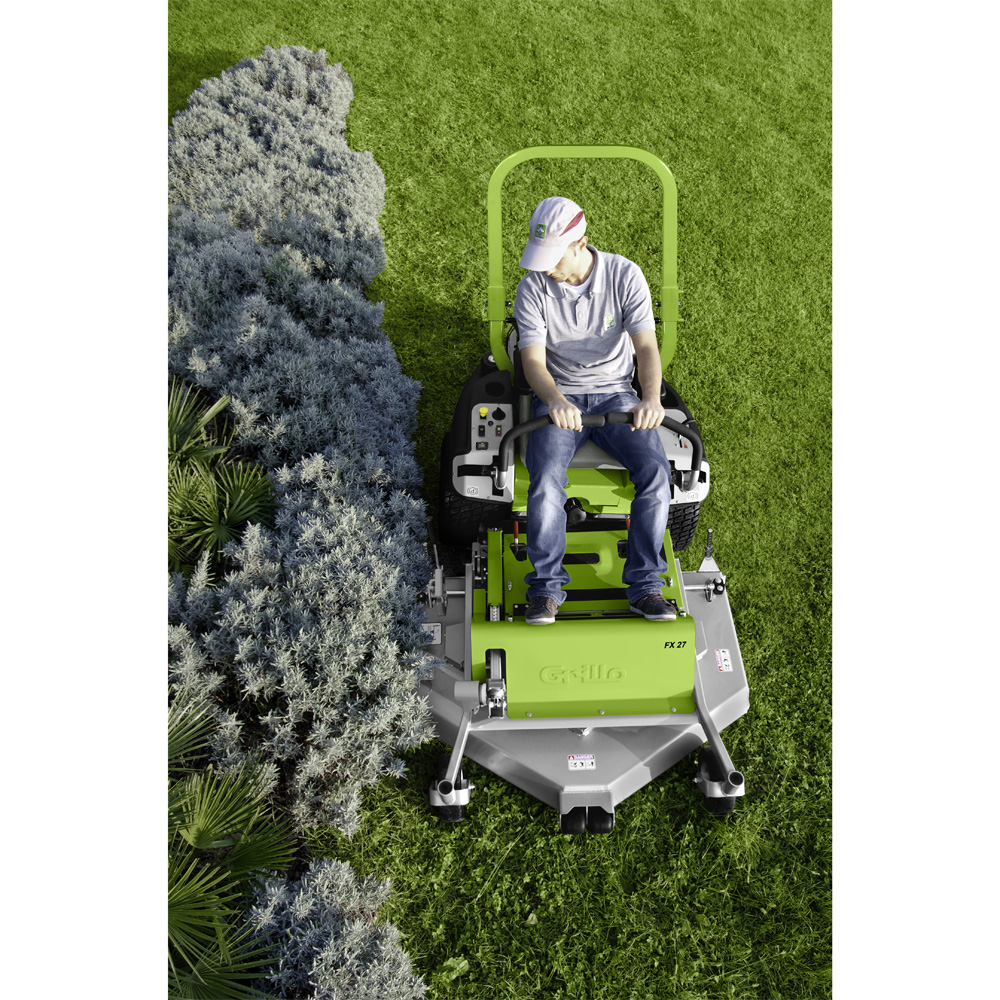

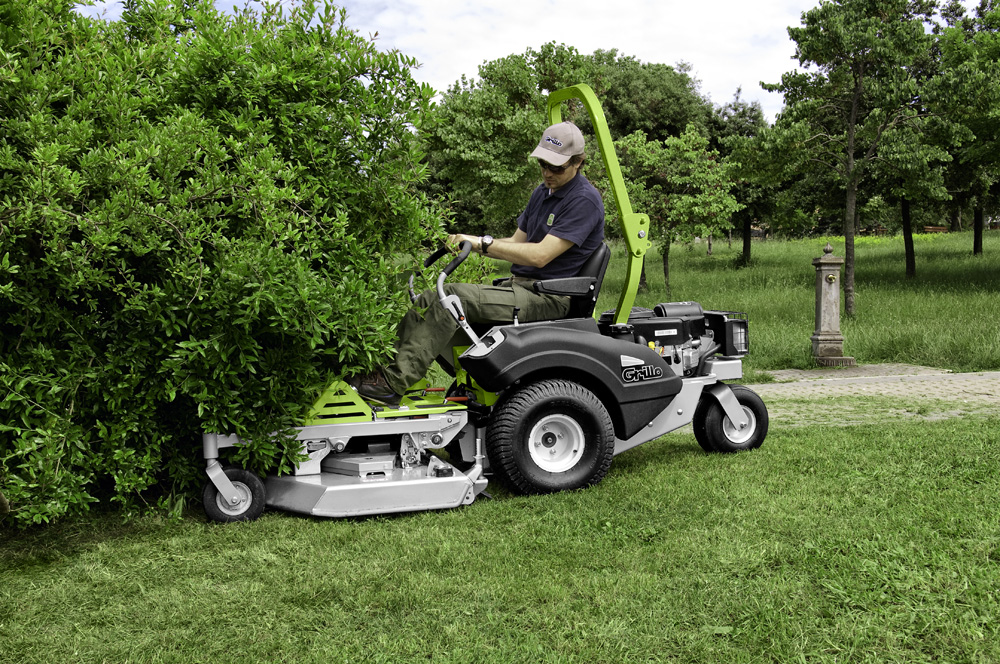

The Grillo FX27 precisely follows the perimeter of obstacles such as hedges and complex walls, but also trees or playground equipment.

The center of gravity of the Grillo FX27 is particularly low. The perfect weight balance is concentrated on the wide 'garden' tread drive wheels, leaving the rear of the mower light.
The specific ground pressure is always low. This allows the FX27 to have excellent grip on flat and sloping terrain without attacking the turf.

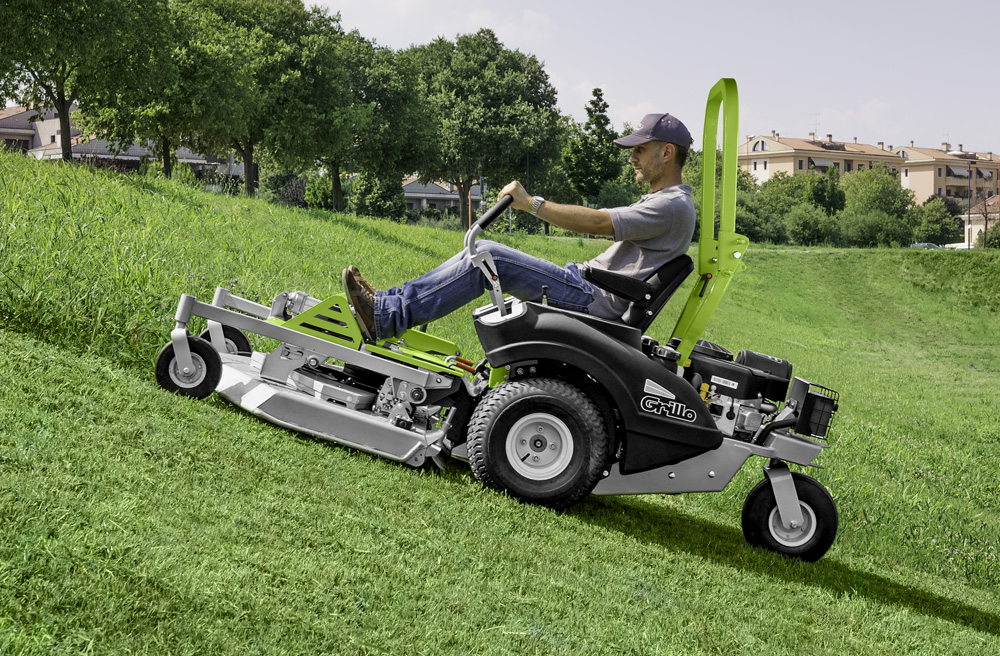

Cutting on slopes will always be easy and reliable because of the "Anti-Lift" system, a hydraulic and fully automatic device that allows the rear pivoting wheel to always remain on the ground.


The combination of these features allows the Grillo FX27 to move with agility on steep slopes of up to 40%, and cut on slopes of up to 30%, with maximum stability and safety.

Great maneuverability between obstacles, but also great speed when cutting!
The hydro static transmission with integrated pumps/motors is controlled directly from the driving levers. The speed of the FX27 is infinitely variable from 0 to 12 km/h.


The powerful engine and the 125 cm cutting width deck allow you to complete the cut in record time!

The cutting device is innovative and guarantees an optimal finish every time!

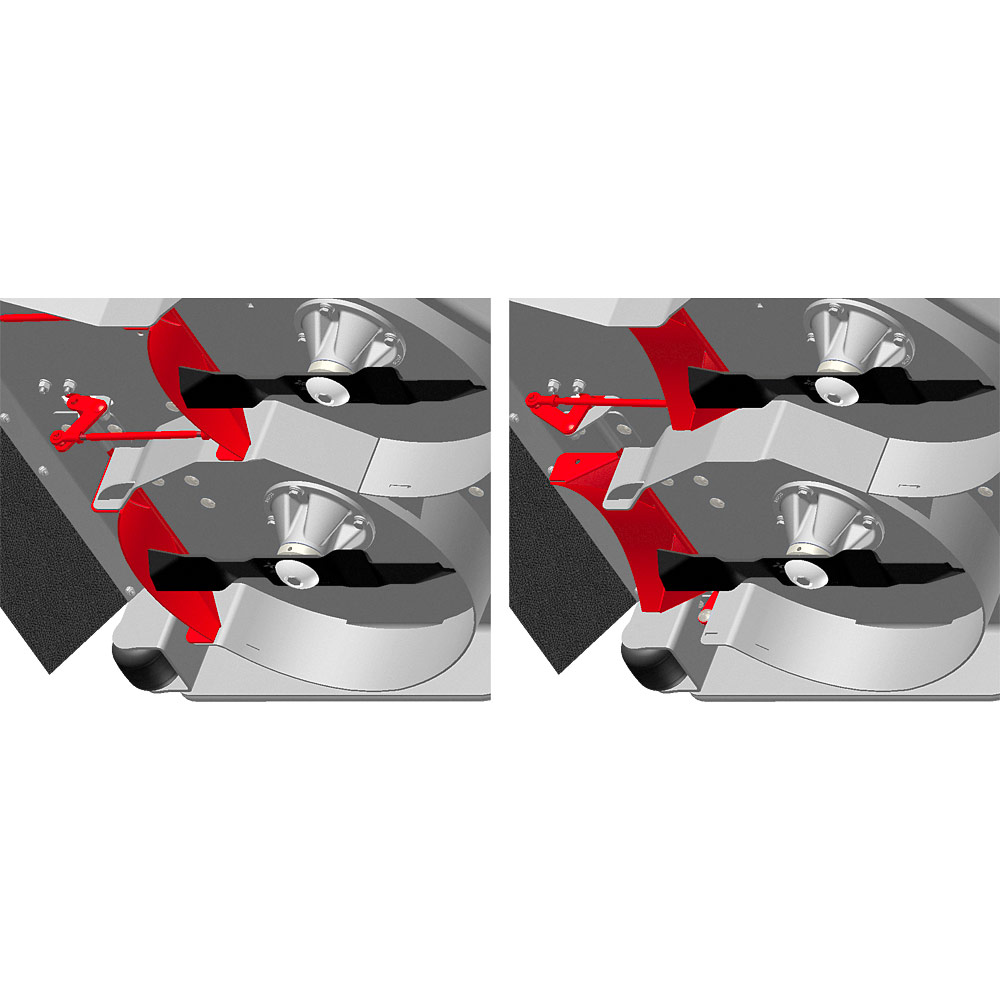

With a choice of mulching or rear discharge cutting, FX27 always manages to be 100% effective!

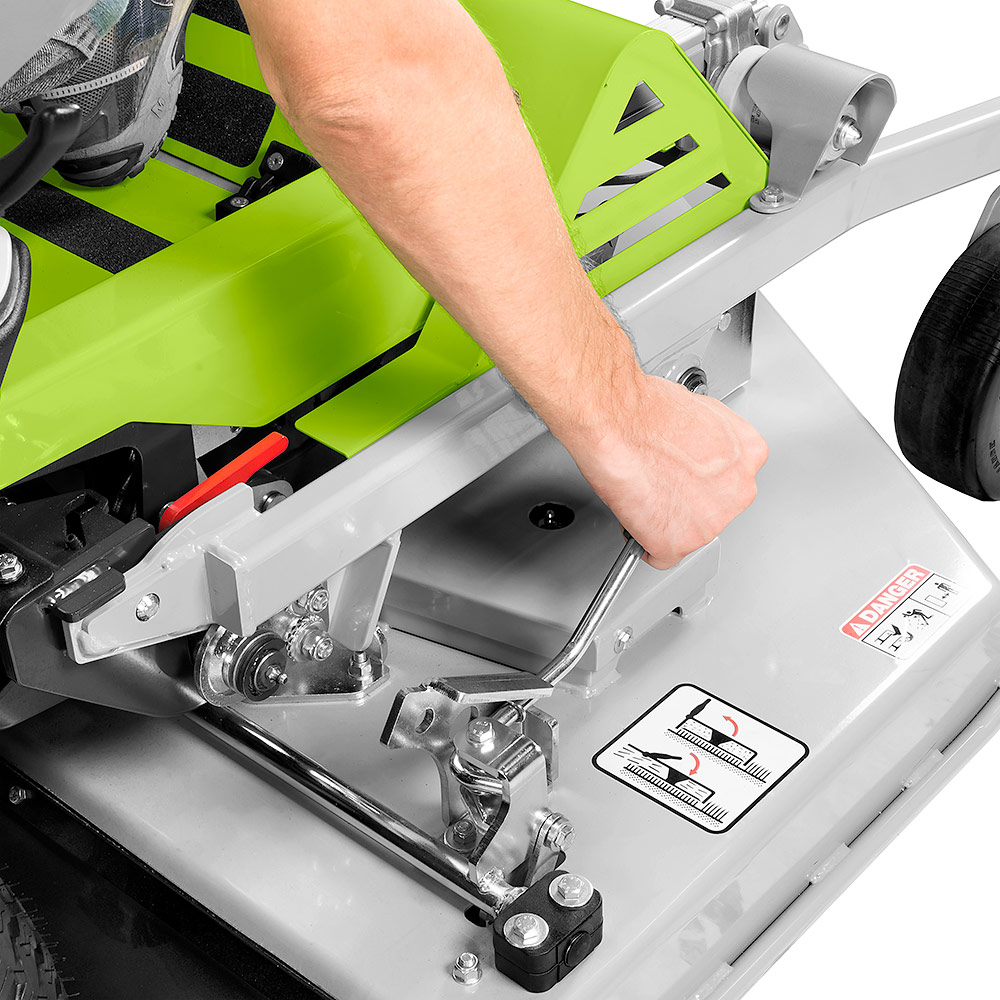

The 'Quick Shift' lever allows you to change cutting mode from the comfort of the driver's seat.


Adjusting the cutting height is easy! The electric control is located in the dashboard to the right of the driver's seat and can also be operated while cutting. The adjustment ranges from 30 to 85 mm and is infinitely variable an indispensable feature for optimum mulching!

The cutter deck uses a system of movable arms to precisely follow the ground! Bumps and dips of all kinds are never a problem with the Grillo FX27!


The front wheels of the cutting deck are full and flat profile, impossible to drill!

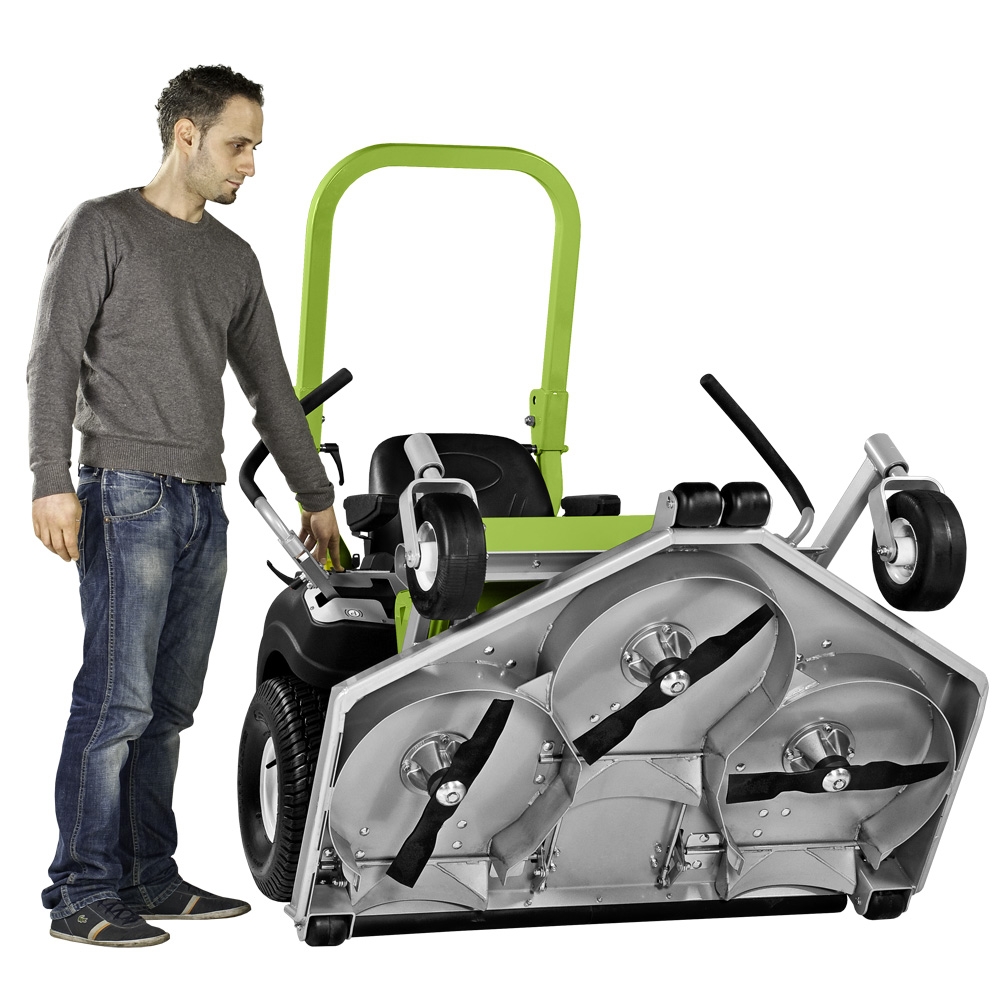

At the end of the job, cleaning the cutting deck is quick and easy! The cutting deck lifts up electrically in an upright position making cleaning after cutting easy and immediate, without removing the transmission’s belt.

FX27 is equipped with a Briggs & Stratton Series 8270 twin-cylinder petrol engine with electric start and low fuel consumption. The engine with overhead valves and cast-iron cylinders has a displacement of 724 cc and adopts modern solutions that guarantee reliability, low emissions, high performance and minimal vibration.


The FX27's "Grillo Super Silent" exhaust muffler is specially designed by Grillo to achieve high noise reduction and minimal exhaust resistance.


The two symmetrical tanks positioned on the drive axle allow optimal weight distribution. 30 litres of tank capacity give the Grillo FX27 a great cutting autonomy, up to 7 hours without refueling.

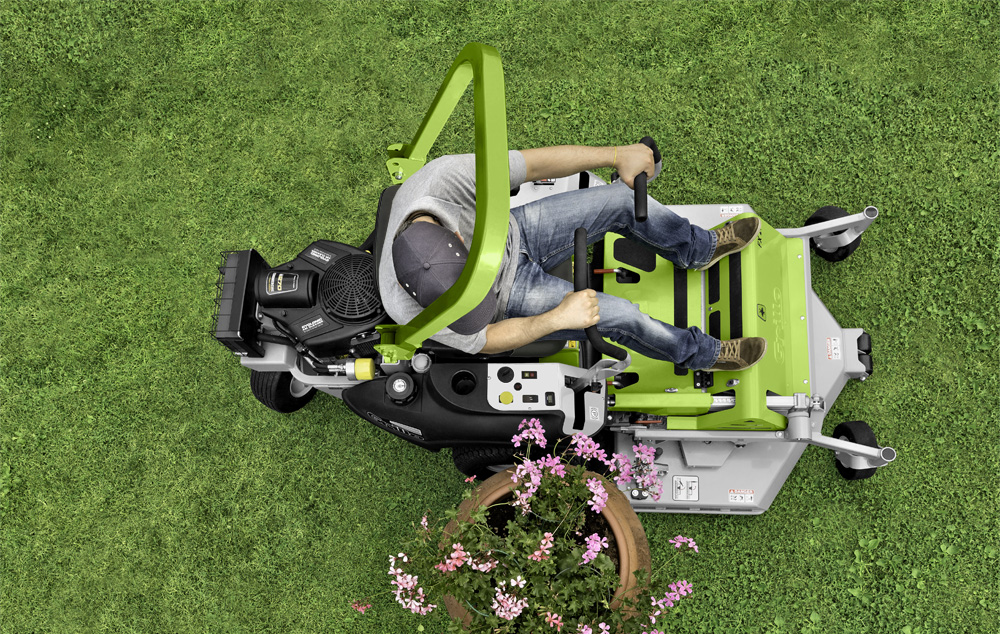

Along with efficiency and ease of use, comfort was also a real priority for the designers! FX27 offers a wide, adjustable seat with armrests. The driving position is natural because of the adjustable position of the forward levers.


In addition, the electric controls for adjusting the cutting deck and blade engagement, the safety brake-blade that engages automatically, the "Quick Shift" lever to switch from Mulching to rear discharge cutting in an instant, the parking brake that engages when the drive levers are opened, and all the controls within easy reach while remaining comfortably seated, make driving the FX27 pleasant and safe.


The standard roll bar can be folded down, so without the use of tools you can lower or raise the FX27's roll bar in seconds!


You can't imagine how easy the FX27 is to drive... until you try it!

All components, from the simplest to the most complex, are of high quality.
Frame, cutting transmission, plate, everything is built by Grillo in Italy, using the best materials and the latest technology to achieve high, consistent and 100% controlled quality.
The painting of Grillo machines is double-layer electrostatic powder. First there are the washing and preparation baths, then a first protective layer is applied which, with baking in the oven, is the best base for the finishing application. The second layer of paint and a further baking at 190°C give the characteristic hardness and gloss.
The Grillo FX 27 is meticulously assembled and thoroughly tested by specialized personnel. The final testing of the FX 27 includes a test with the engine running to check all functionality. A further and final guarantee for a high quality product.

Like all Grillo products, the FX 27 is designed and built to last and retain its value for many years.
Grillo products are distributed and serviced extensively by Grillo's network of specialist dealers. Spare parts are available even after many years.


Technical data sheet
Technical data sheet FX 27
Engine Briggs & Stratton Series 8290 CXi Commercial
Start electric, with 12 V battery
Supply fuel
Displacement 724 cc, 2 Cylinders
Power 22 HP (16.2 kW)
Air cooled
Dry air filter with interchangeable filter cartridges
Fuel tank capacity 30 L (2 x 15 L)
Traction 2WD
Gearbox Hydrostatic transmission with ZT 3100 ZM Hydro-Gear built-in pump and motor.
Clutch Electromagnetic PTO clutch
Cutter deck Front and rotating cutting deck with 3 blades, floating cutter deck with mulching and rear discharge functions operated by lever from driver seat. Electric-operated folding system of cutting deck for easier maintenance.
Cutting deck width 1320 mm
Cutting width 1250 mm
Cutting height Electrically and continuously adjustable from 30 to 85 mm
Front tyres 20x10.00-8 Turf
Rear tyre 15x6.00-6 Turf
Steering system Through levers, with height and lengthwise adjustment.
Speed Continuously variable from 0 to 12 km/h and from 0 to 6 km/h in reverse
Inner turning radius Zero Turn

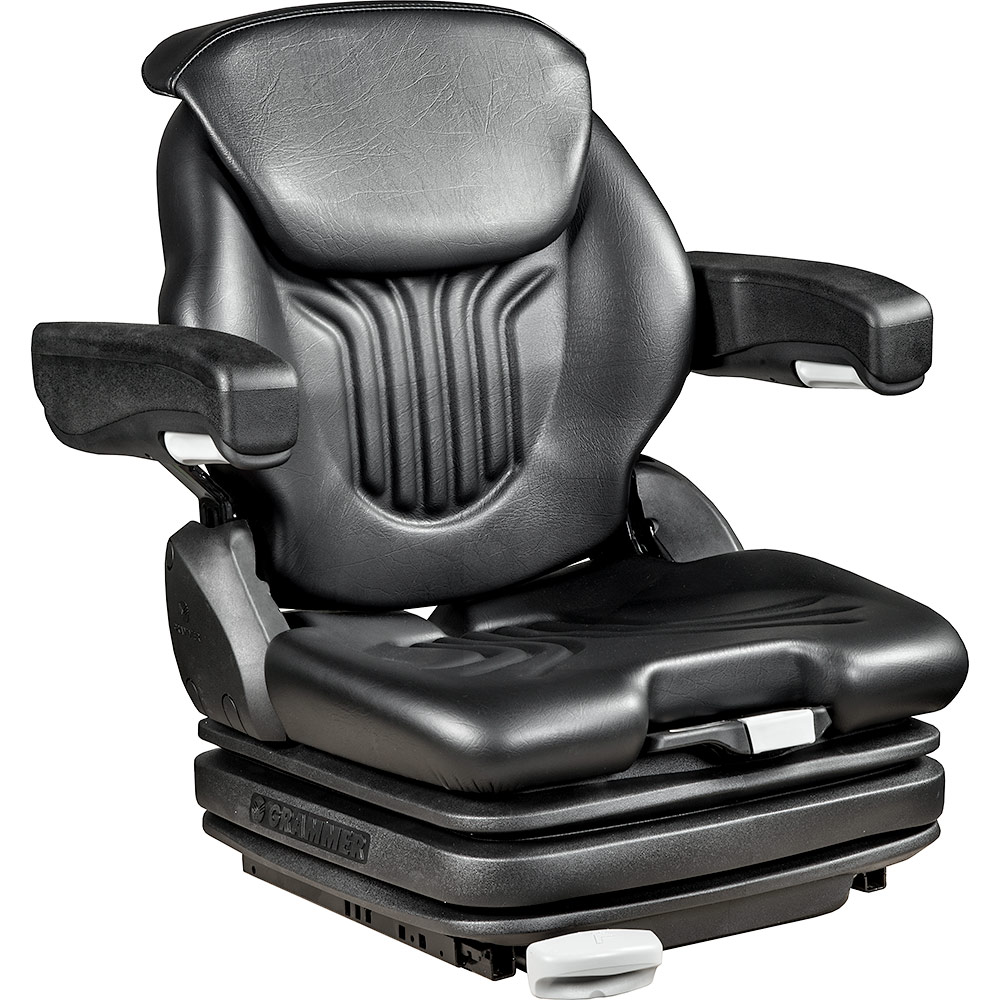

Seat Comfort seat with armrests and lengthwise adjustment, fitted on support with adjustable air suspension. Tipping system operated by gas spring.
Parking brake Built-in in the hydrostatic transmission. Automatically operated when opening the steering control levers.
Mowing capacity per hour (indicative) 13000 m^2/h
Standard features Tow hook and anti-lift system to improve the machine's stability on slopes, roll-bar.
Length 2580 mm with cutter deck
Width 1120 mm without cutter deck - 1320 mm with cutter deck
Height 1700 mm (with raised roll-bar); 1160 mm (with lowered roll-bar)
Weight 484 kg with cutter deck

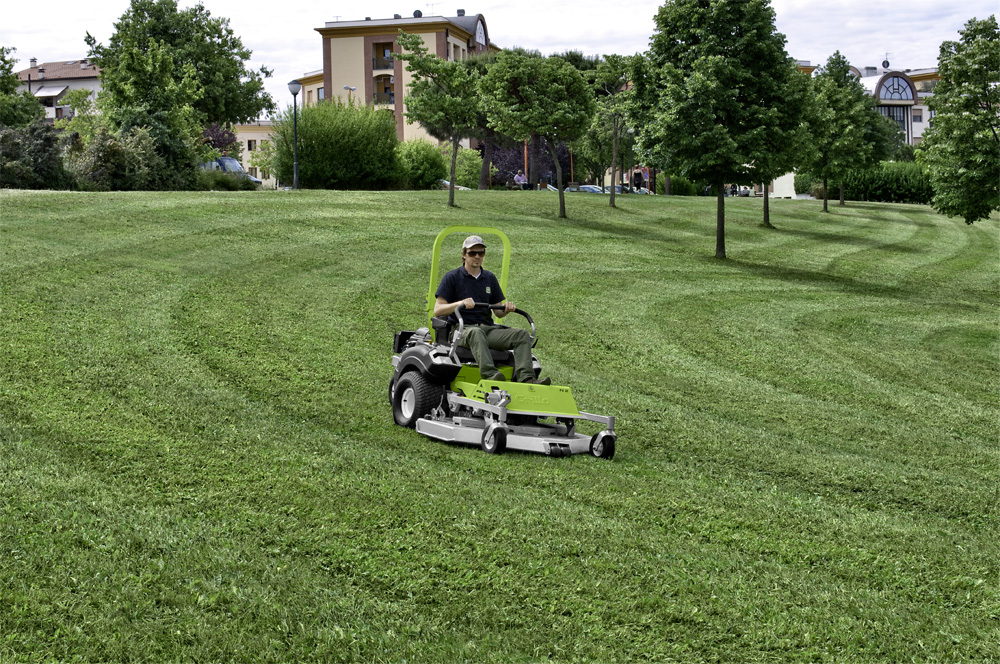

In action! Photos and Videos
In action! Photos and Videos
Grillo ZeroTurn
Grillo ZeroTurn
Implements
Implements FX 27

Rear double axle FX20

9B5212
to be applied on FX 27
item no.: 9B5212
weight: 30 kg

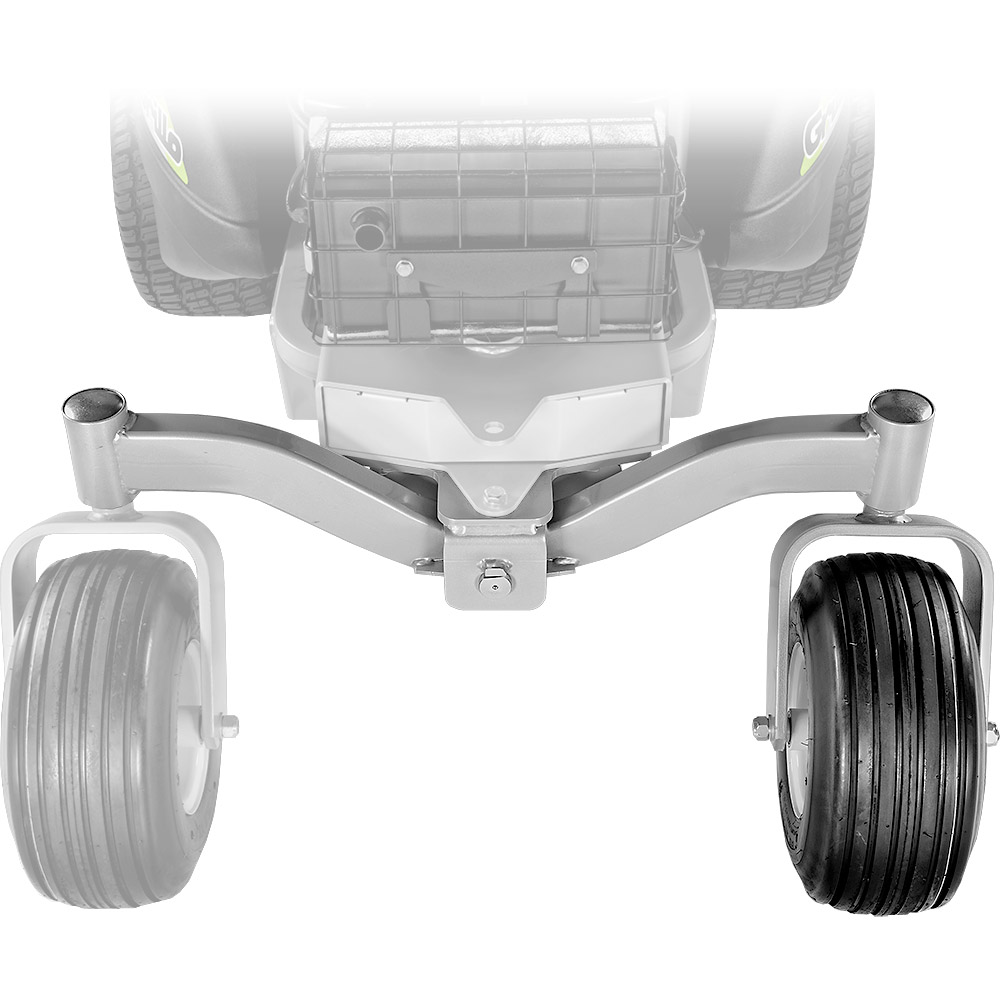

The machine can be equipped with a rear double axle for two wheels. By this means it is possible to load the machine onto a transport vehicle by using two loading racks instead of three.
The kit includes the mechanical arm which sustains the wheels and the second rear wheel.

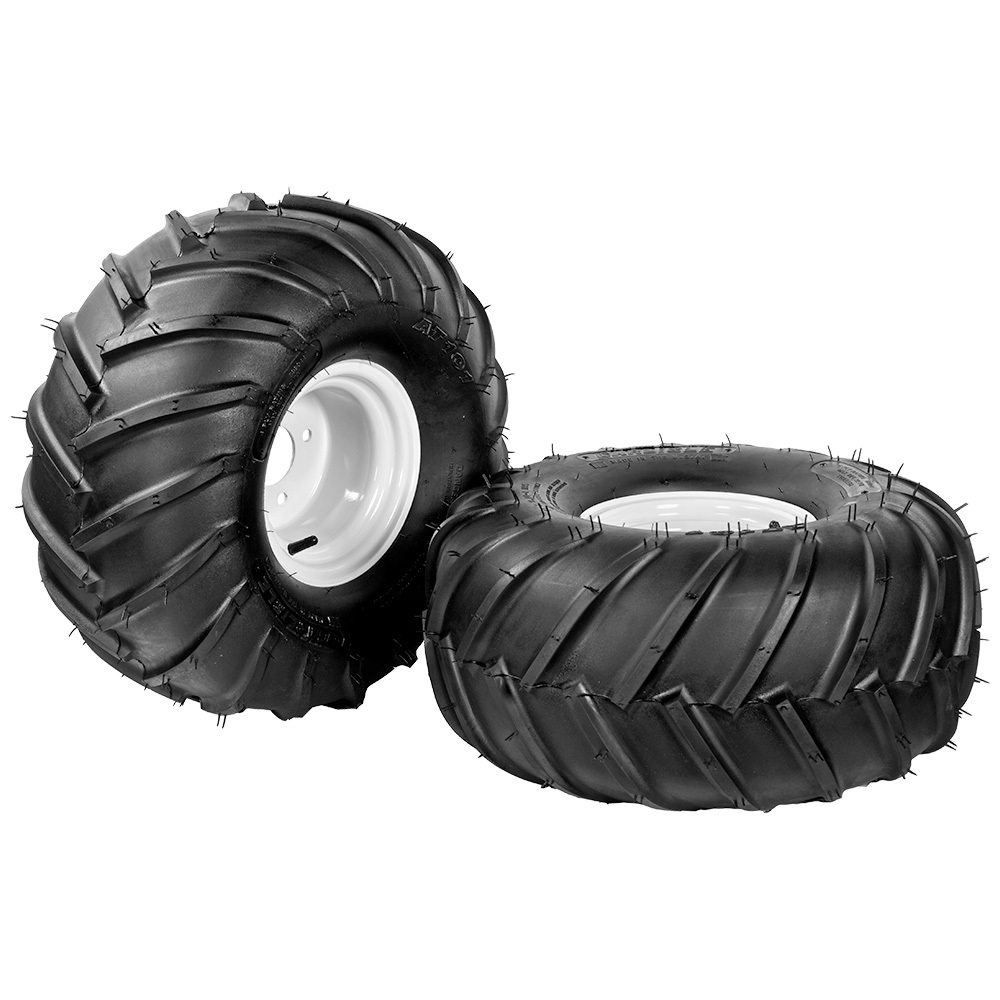

Pneumatic tractor wheels 21x11.00-8 (Pair)

Pair pneumatic "Tractor" wheels 21X11.00-8 - COD. 918212
to be applied on FX 27
item no.: 918212
weight: 21 kg

Tractor wheels mounted on the FX20 are useful in rustic areas with slopes in order to obtain a stronger grip.

9A4411
to be applied on FX 27
item no.: 9A4411
weight: 32 kg
Download
Download
Pdf Full Range Catalogue 2024 (Download - file pdf - 21,78 MB)
Pdf FX27 - leaflet (Download - file pdf - 2,91 MB)
Pdf Cutting systems (Download - file pdf - 1,63 MB)
