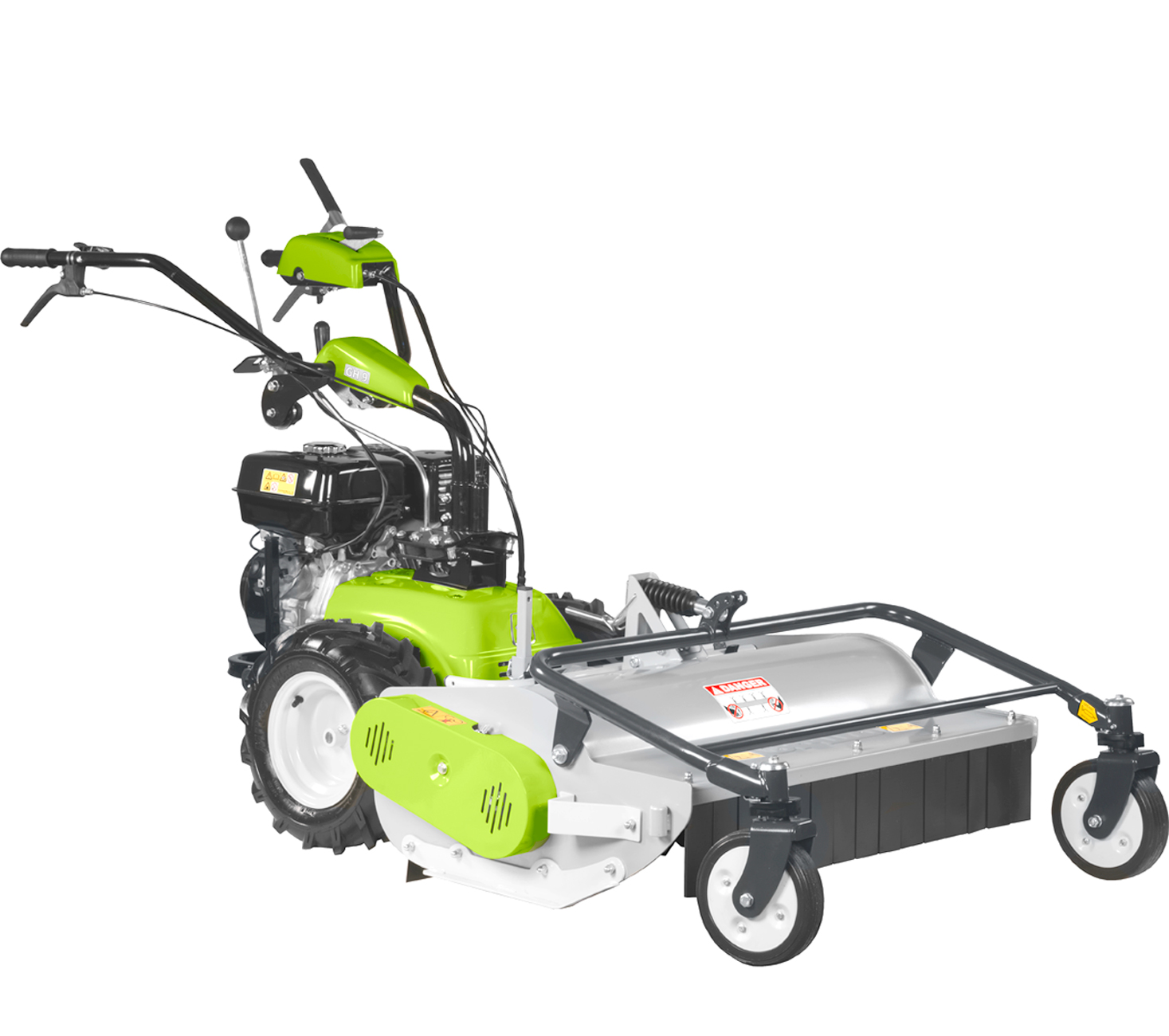

GH 9

Hydrostatic all purpose flail

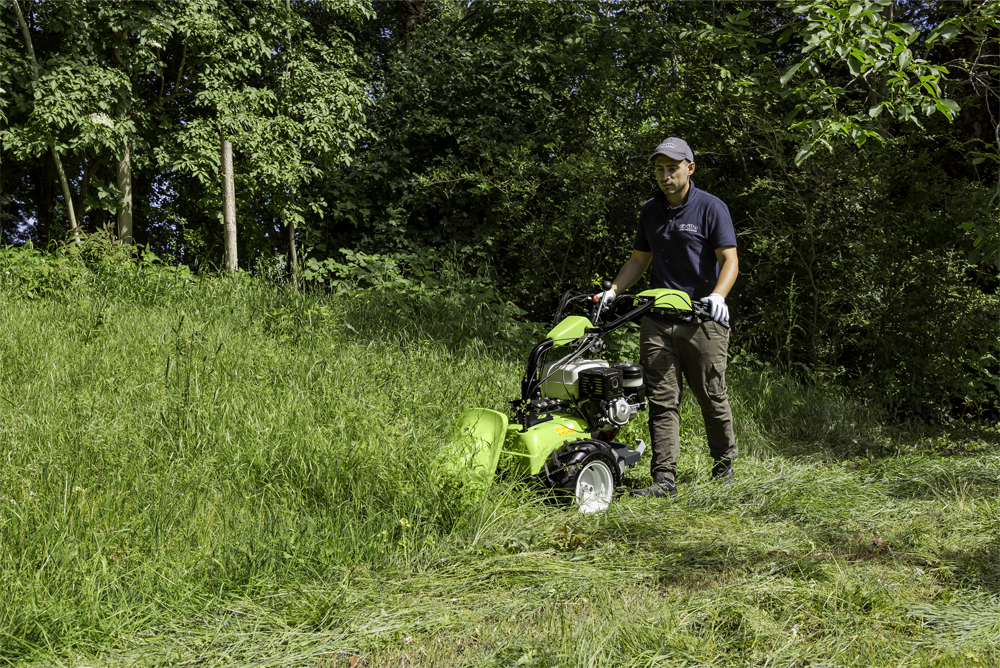

The Grillo GH 9 is a mulcher with hydro-static transmission, ideal for cleaning rustic areas, cutting tall grass, shrubs or pruning residues, even on slopes.
It is equipped with a Honda GX270 engine, single-cylinder 276cc petrol engine of 8.4 HP (6.3 kW) with oil-bath filter and cast iron cylinder, with reduced vibrations and noise. The 16×6.50-8 pneumatic wheels have tractor treads.
Because of its compact dimensions and perfect weight distribution, the Grillo GH9 is maneuverable in all working conditions, in agriculture and in professional and private green maintenance.

All controls are comfortably positioned and the handlebar is equipped with dampers.
The transmission is hydro-static and the forward speed ranges from 0 to 6 km/h continuously variable, the reverse gear from 0 to 3 km/h.
The handlebar can be adjusted in height and moved sideways to meet all requirements and to work easily even near low branches or obstacles.
The parking brake is pedal-operated.

The Grillo GH 9 can be equipped with two mulchers with a working width of 68 and 85 cm. They are equipped with a rotor with 16 and 20 pairs of 'Y' shaped blades respectively, capable of mulching leaves, pruning branches, plant residues, and crop waste.
For both models the cutting height adjustment is progressive by crank and can vary from a height of 3 up to 11 cm, the control is located on the body of the mulcher.
The cutting mouth of the mulchers is equipped with pivoting rubber blades to prevent the throwing of residues.

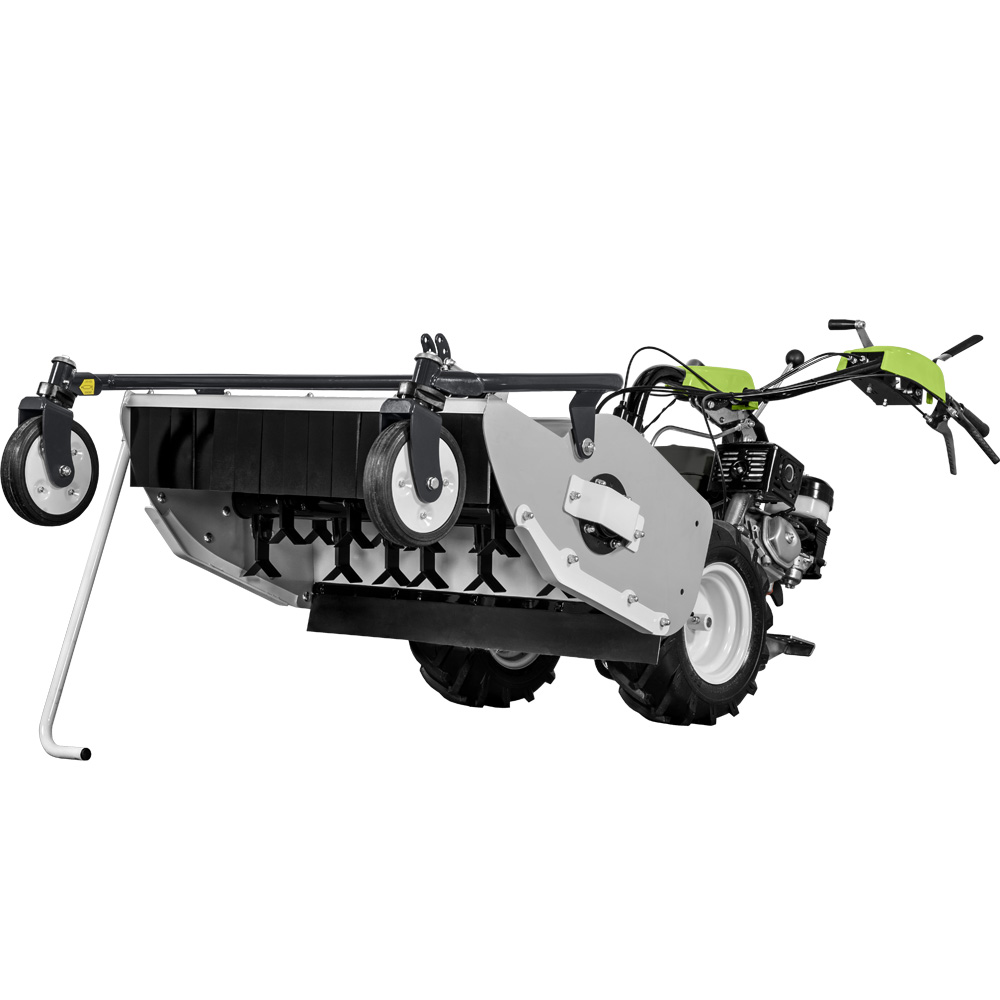

In addition, they are equipped with a removable support to keep the machine raised and stable so that maintenance of the mulcher's inner chamber is easy.

Because of the flange and power take-off with 3-tine coupling, it is also possible to use a variety of implements, making the Grillo GH9 an extremely versatile machine.

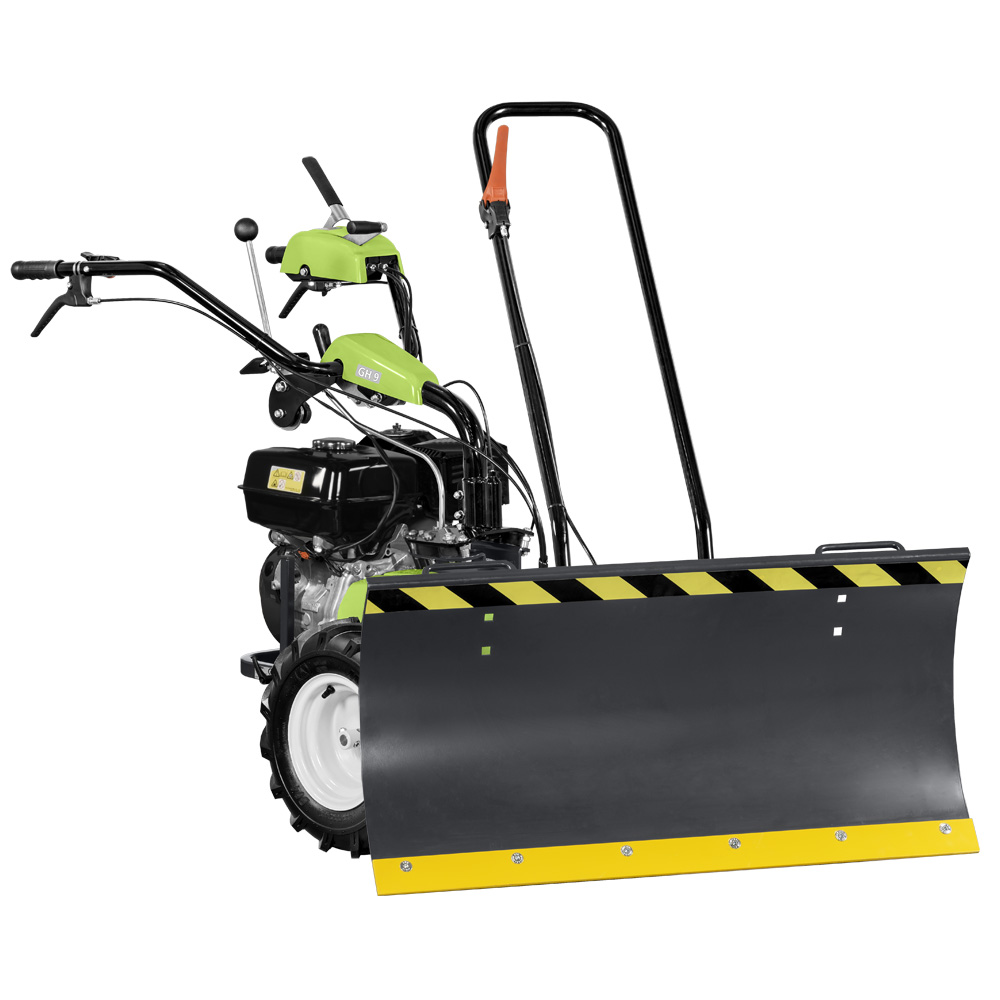

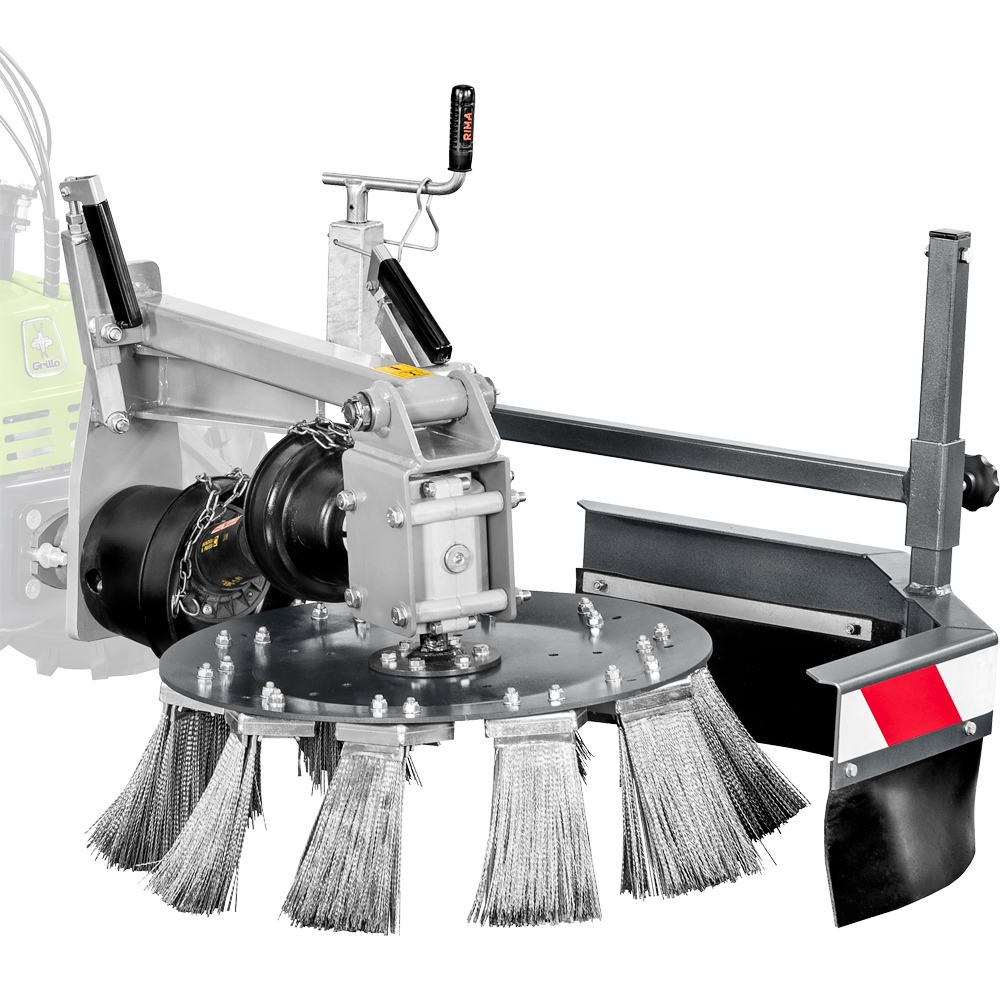

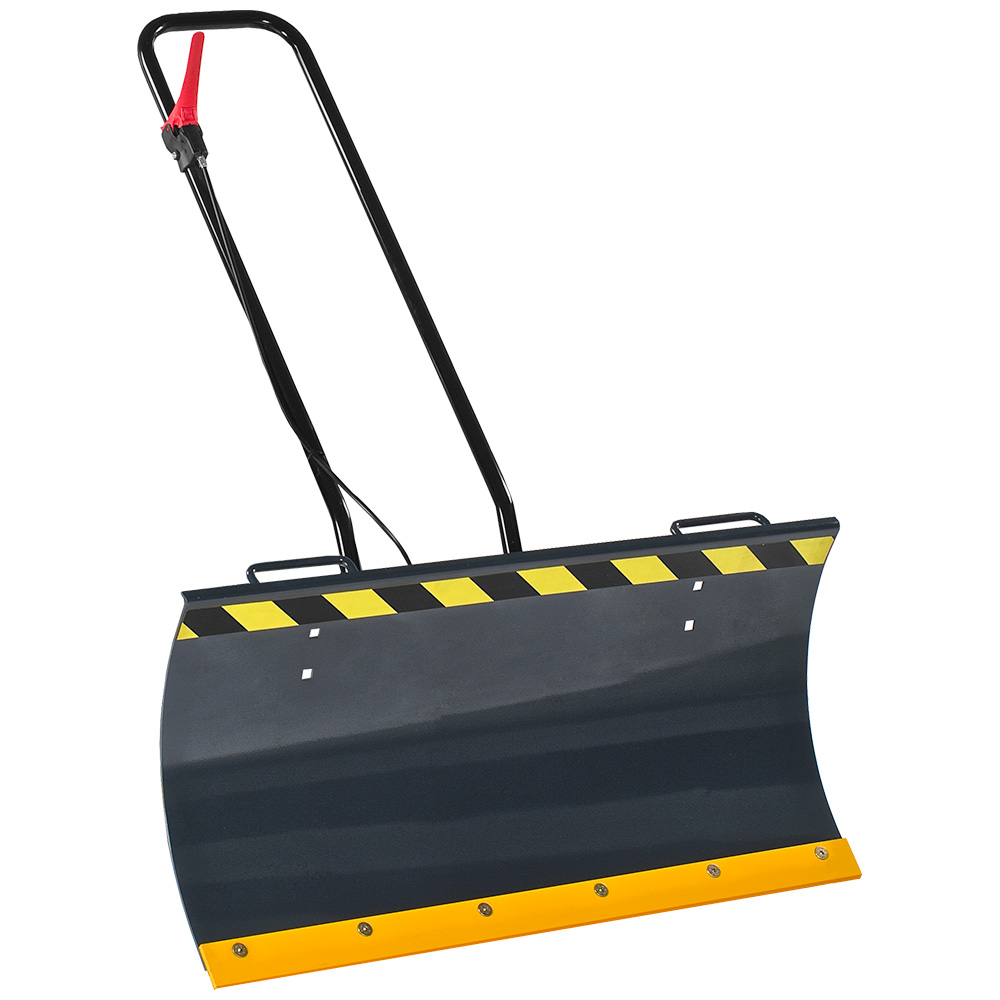

The attachments available are 100 cm swiveling and tilting brush, 132 cm double-bladed PRO cutter bar, 60 cm weeder brush, 100 cm swiveling blade and 70 cm snow thrower.
To make changing attachments on the GH9 quicker, the optional quick hitch can be used.

The painting of Grillo machines is a double-layer electrostatic powder coating. First there are the washing and preparation baths, then a first protective layer is applied which, with baking in the oven, is the best base for the finishing application. The second layer of paint and a further baking in the oven at 190°c give the characteristic hardness and gloss.
All machines are meticulously assembled and thoroughly tested by specialized personnel. In addition, all functions are checked in the final test. A further and final guarantee for a high quality product.

Grillo products are distributed and serviced extensively by Grillo's network of specialist dealers. Spare parts are available even after many years.

Technical data sheet GH 9

Back to

	Engine	Honda GX270 OHV Start recoil starter Supply fuel Displacement 270 cc, 1 Cylinder Power 8.4 HP (6.3 kW) Air cooled Oil bath air filter
	Fuel tank capacity	5,3 l
	Transmission	Hydrostatic
	Traction	2WD
	Cutter deck	Rotor with 16/20 pairs of Y-shaped blades and front opening with tilting flaps
	Cutting width	68/85 cm
	Cutting height	From 3 to 11 cm continuously and rapidly adjustable by means of a crank lever and lock device
	P.T.O.	At 965 revolutions with clockwise rotation
	Wheels	Tractor 16x6.50-8 / 4.00-8
	Speed	Continuously variable from 0 to 6 km/h, reverse gear from 0 to 3 km/h
	Parking brake	Engaged by pedal
	Handlebar	With height and side adjustment
	Standard features	Holder for maintenance
	Implements	Cm 68 all purpose flail, cm 85 all purpose flail, 132 cm professional double cutting bar, 100 cm orientable and tilting sweeper, 70 cm snow thrower, snow chains for wheels, front blade 100 cm, weed brush.
	Length	200 cm
	Width	97 cm
	Height	97 cm
	Weight	165 kg (with 85 cm all purpose flail); 78 kg (without attachment)

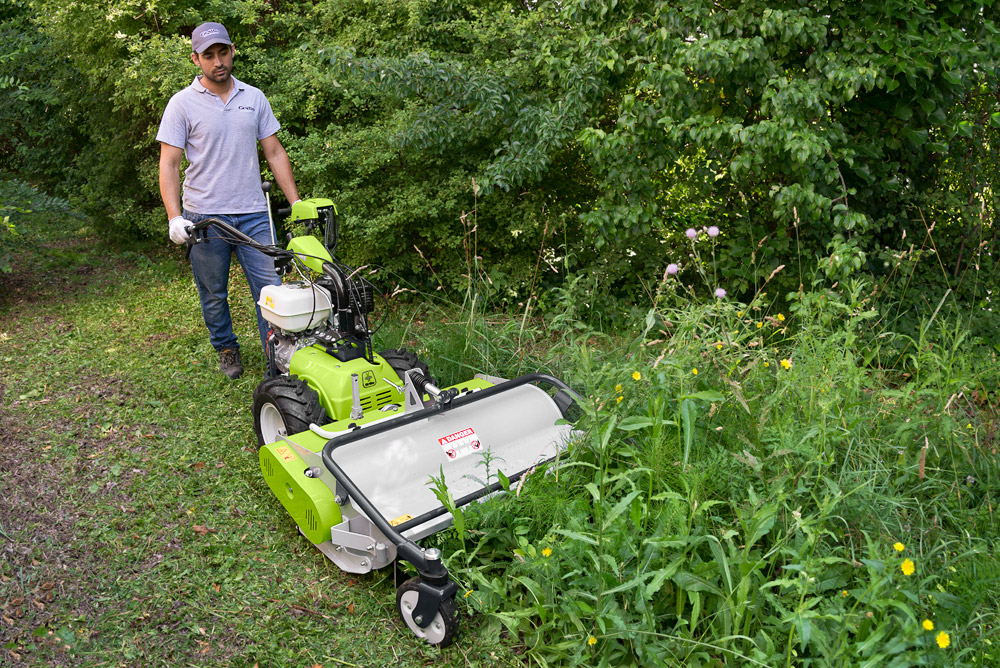

In action! Photos and Videos

Back to

GH8 - GH9

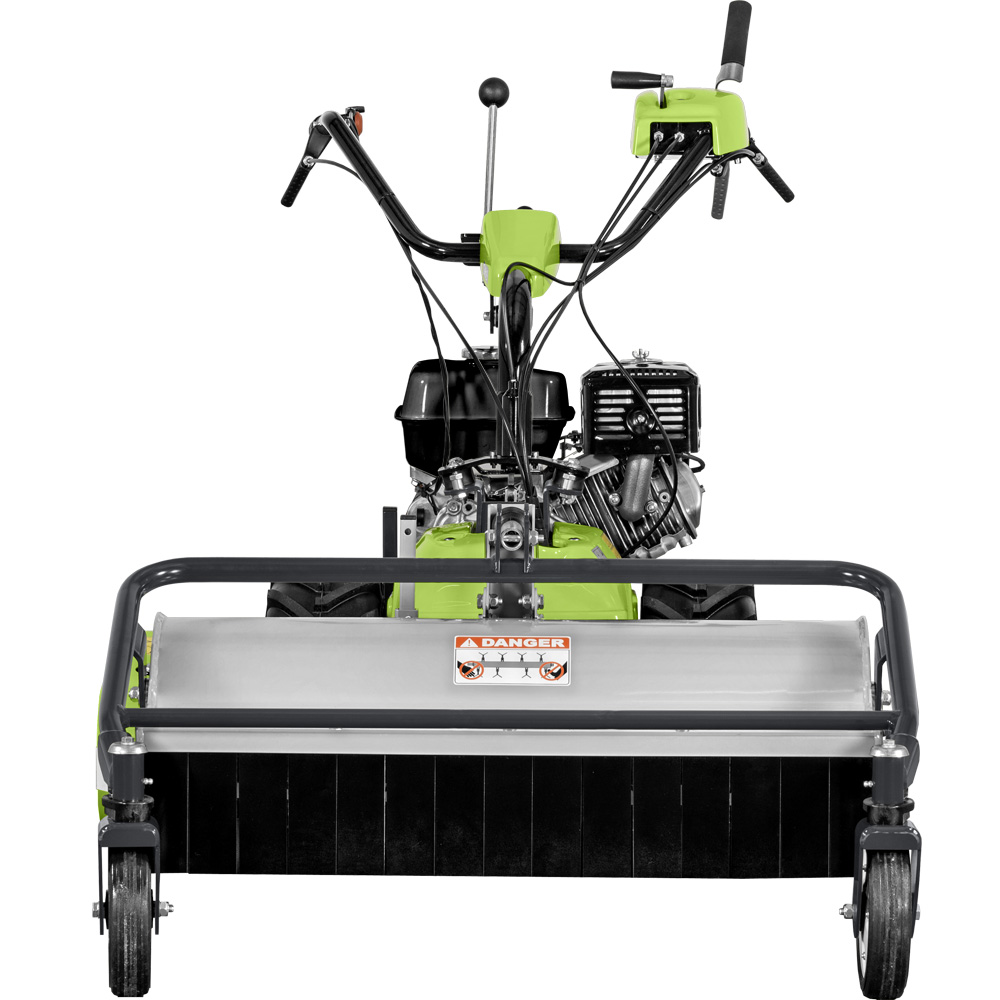

Grillo GH 9

Implements GH 9

Back to

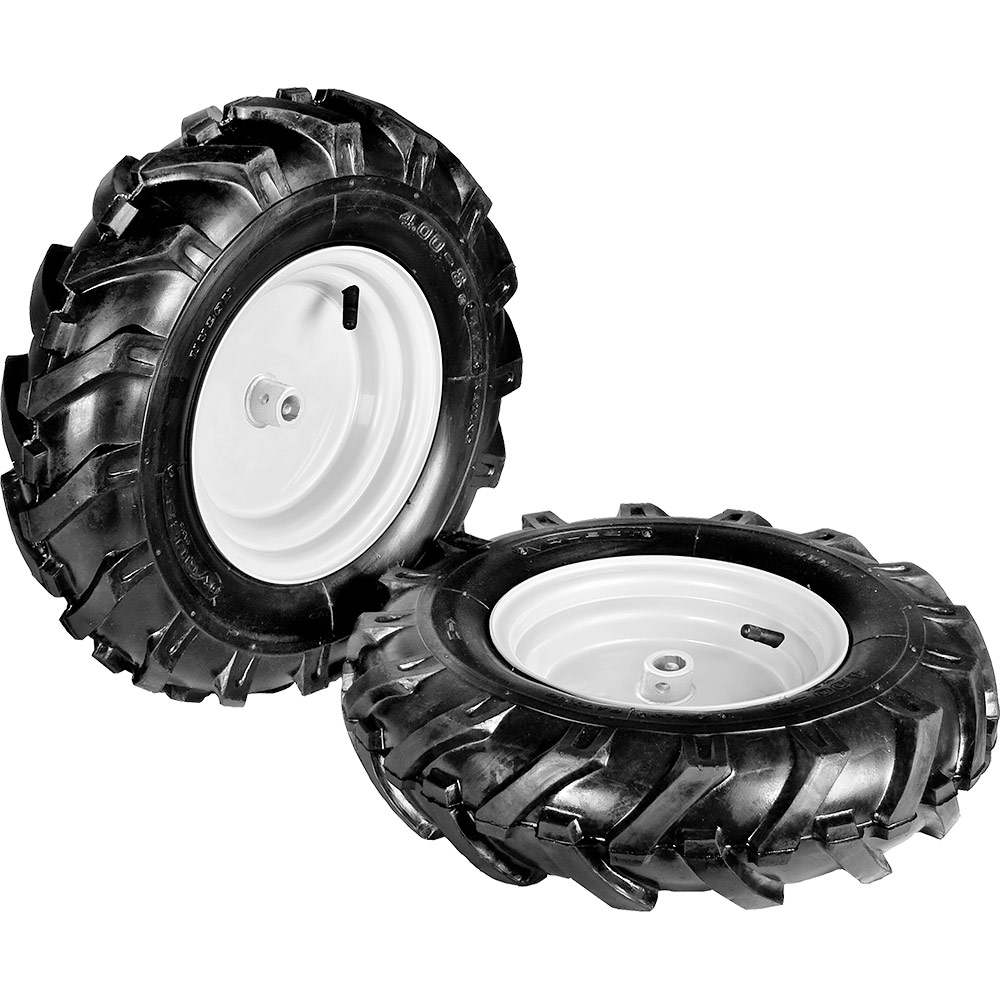

Pneumatic wheels fixed disks 4.00-8 (pair)

to be applied on GH 7 - GH 8 - GH 9

item no.: 917012

weight: 9 kg

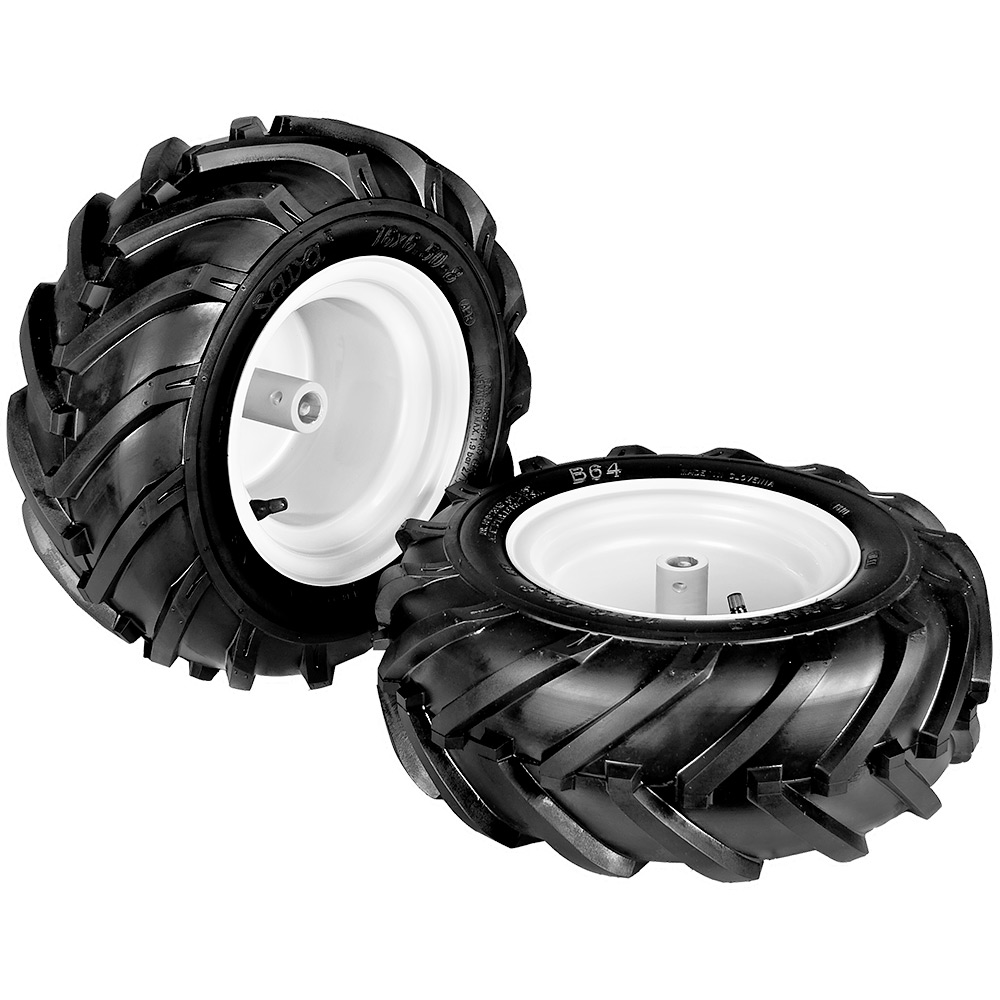

Pneumatic wheels fixed disks 16x6.50-8 (pair)

to be applied on GH 7 - GH 8 - GH 9

item no.: 919411

weight: 15 kg

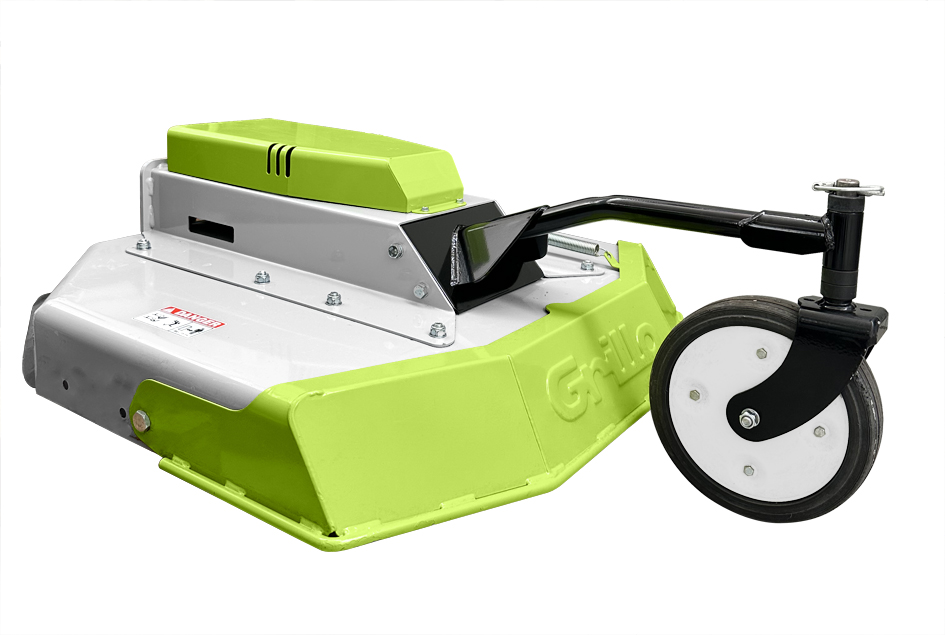

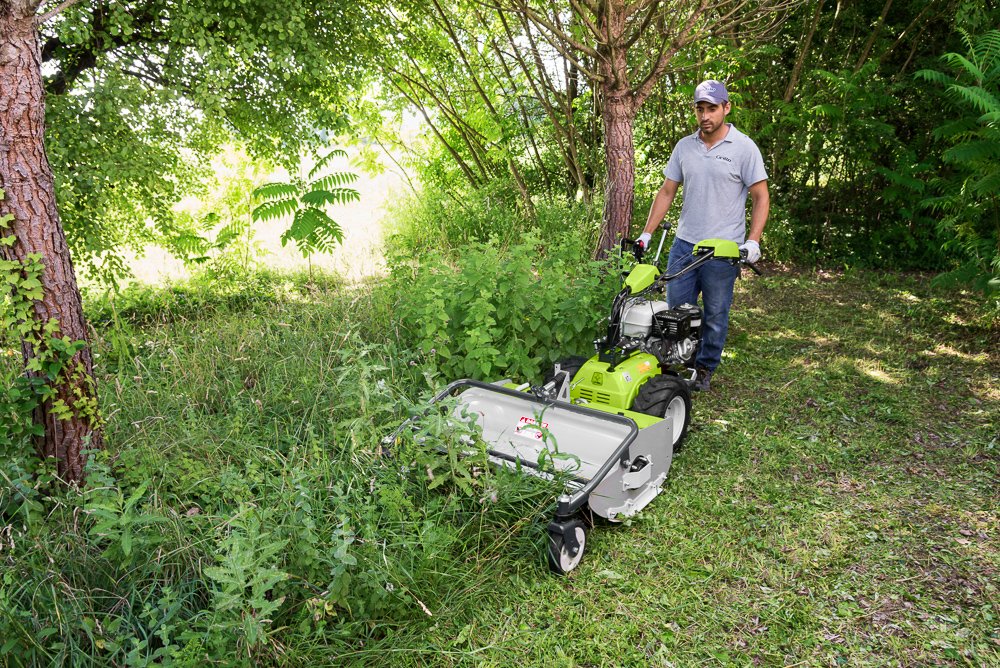

Rotary cutter Pro 75 cm

to be applied on GH 9

item no.: 9M8411

weight: 54 kg

Kit weights for rotary cutter cm 75

to be applied on G 131 - G131 BC - GH 9

item no.: 9M8111

weight: 9 kg

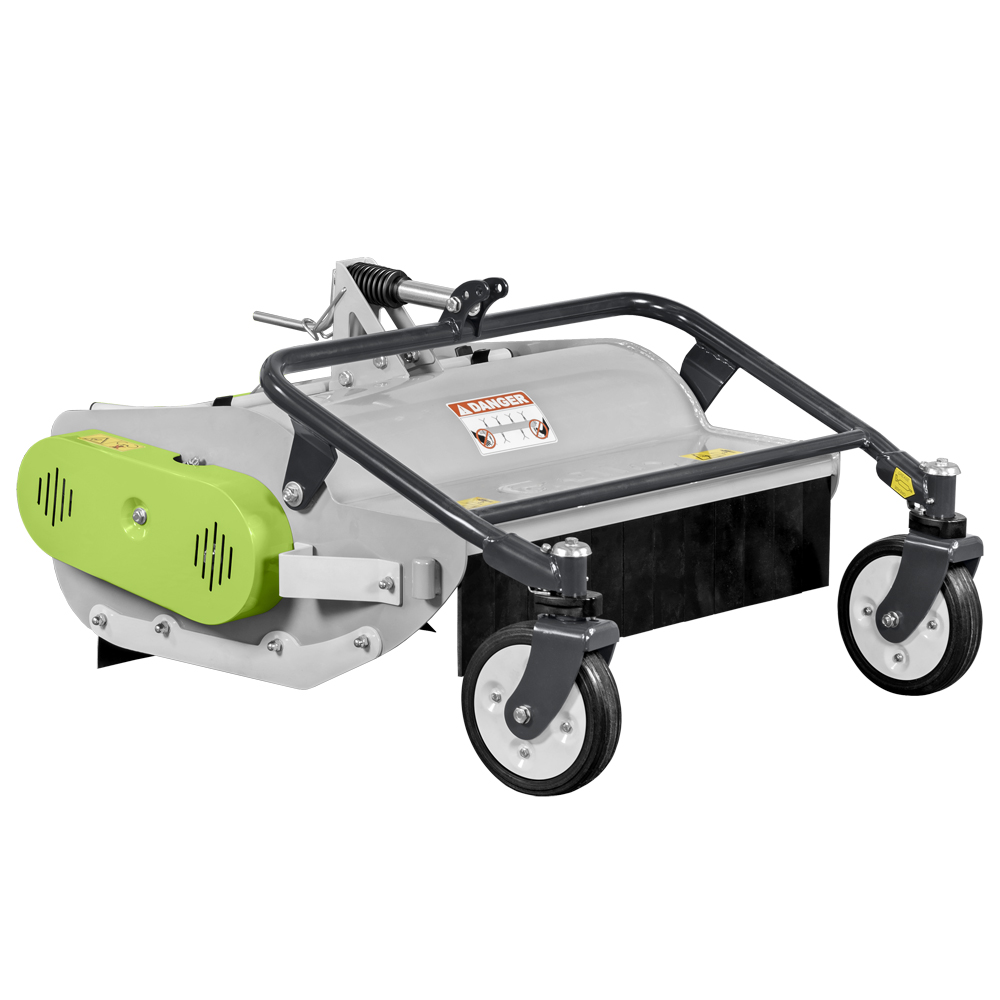

All purpose flail 68 cm

to be applied on GH 7 - GH 8 - GH 9

item no.: 9G6011

weight: 70 kg

Scarifier kit for all purpose flail 68 cm

to be applied on Dumper 507 - G 107d - G 108 - G 110 - G 85d - GF 3 - GF 3DF - GH 7 - GH 8 - GH 9

item no.: 9G6411

weight: 1.6 kg

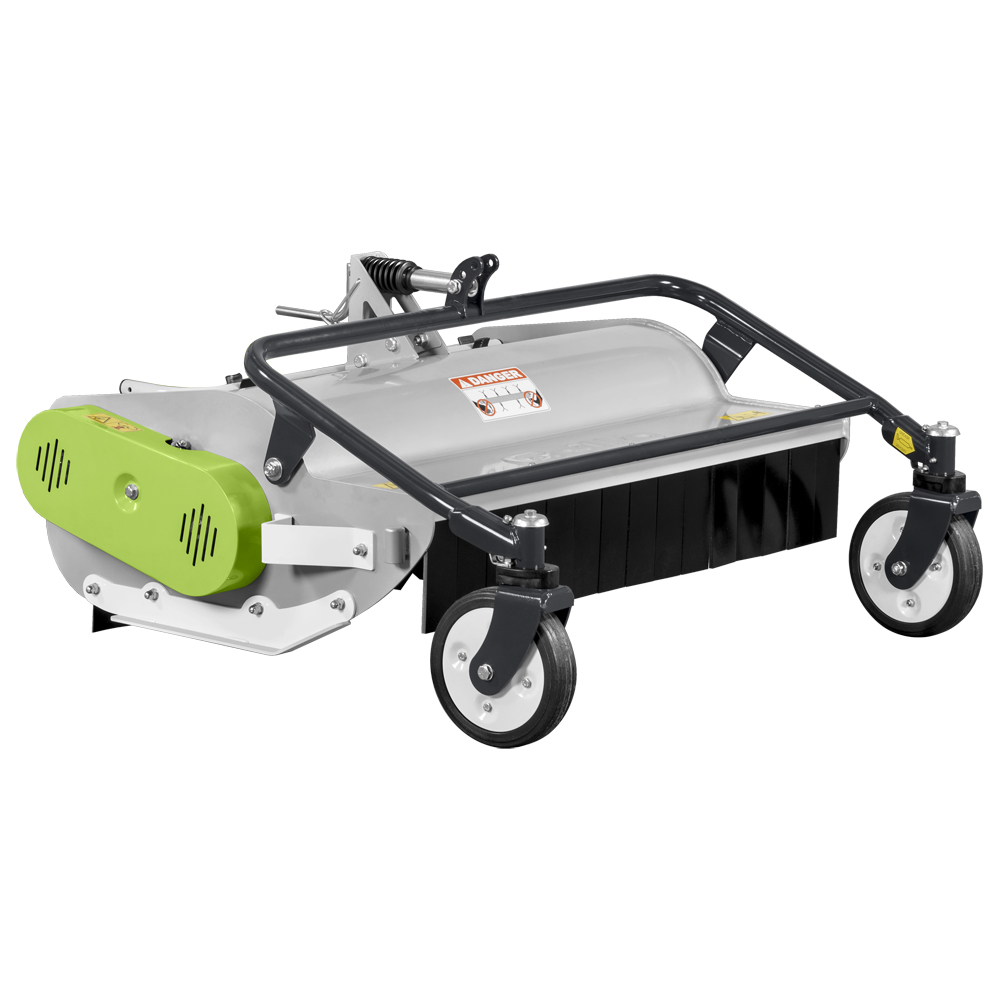

to be applied on GH 9

item no.: 9G6511

weight: 77 kg

Scarifier kit for all purpose flail 85 cm

to be applied on Dumper 507 - G 107d - G 108 - G 110 - G 131 - G131 BC - G 85d - GF 3 - GF 3DF - GH 9

item no.: 9G7011

weight: 2,5 kg

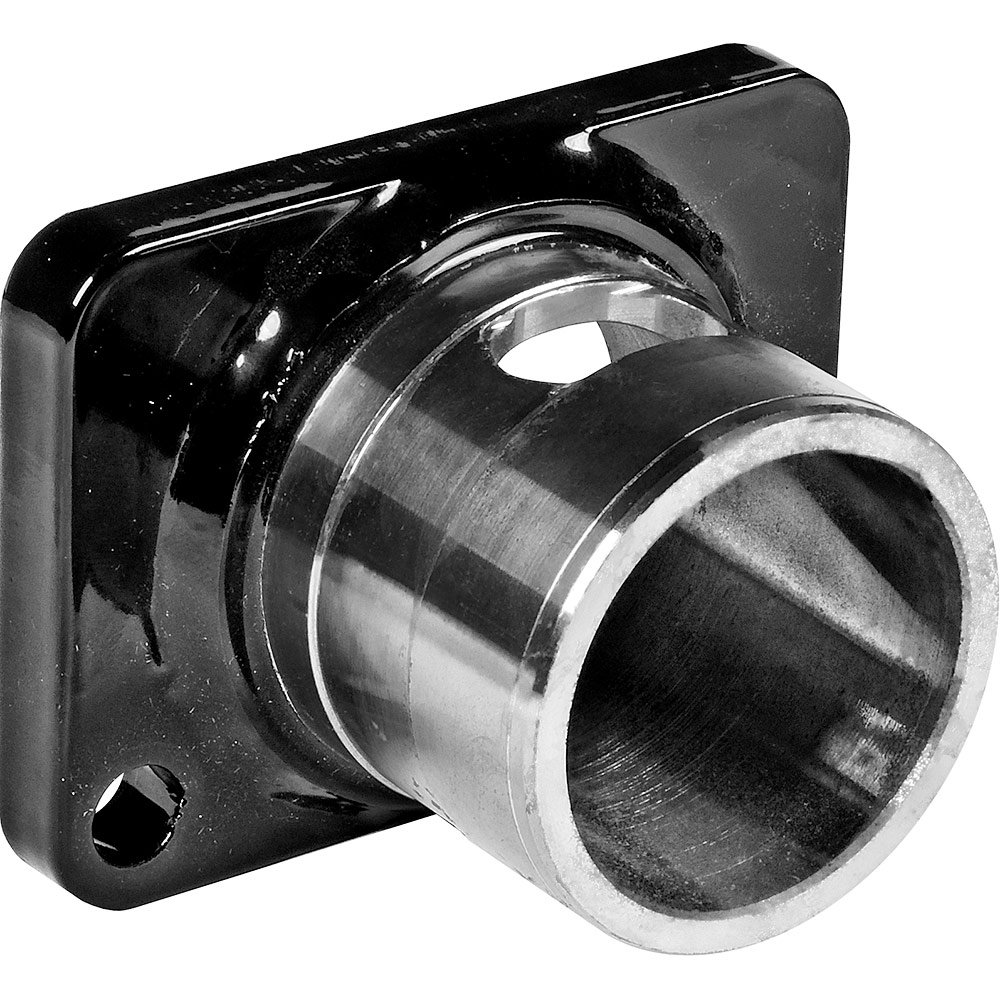

Rear coupling assembly for quick coupling (implement side)

to be applied on G 108 - G 110 - GH 7 - GH 8 - GH 9

item no.: 946511

weight: 2.5 kg

Front coupling assembly for quick coupling (machine side)

to be applied on G 108 - G 110 - GH 7 - GH 8 - GH 9

item no.: 946911

weight: 2.5 kg

to be applied on GH 7 - GH 8 - GH 9

item no.: 937511

weight: 1.5 kg

to be applied on GH 7 - GH 8 - GH 9

item no.: 937611

weight: 1.5 kg

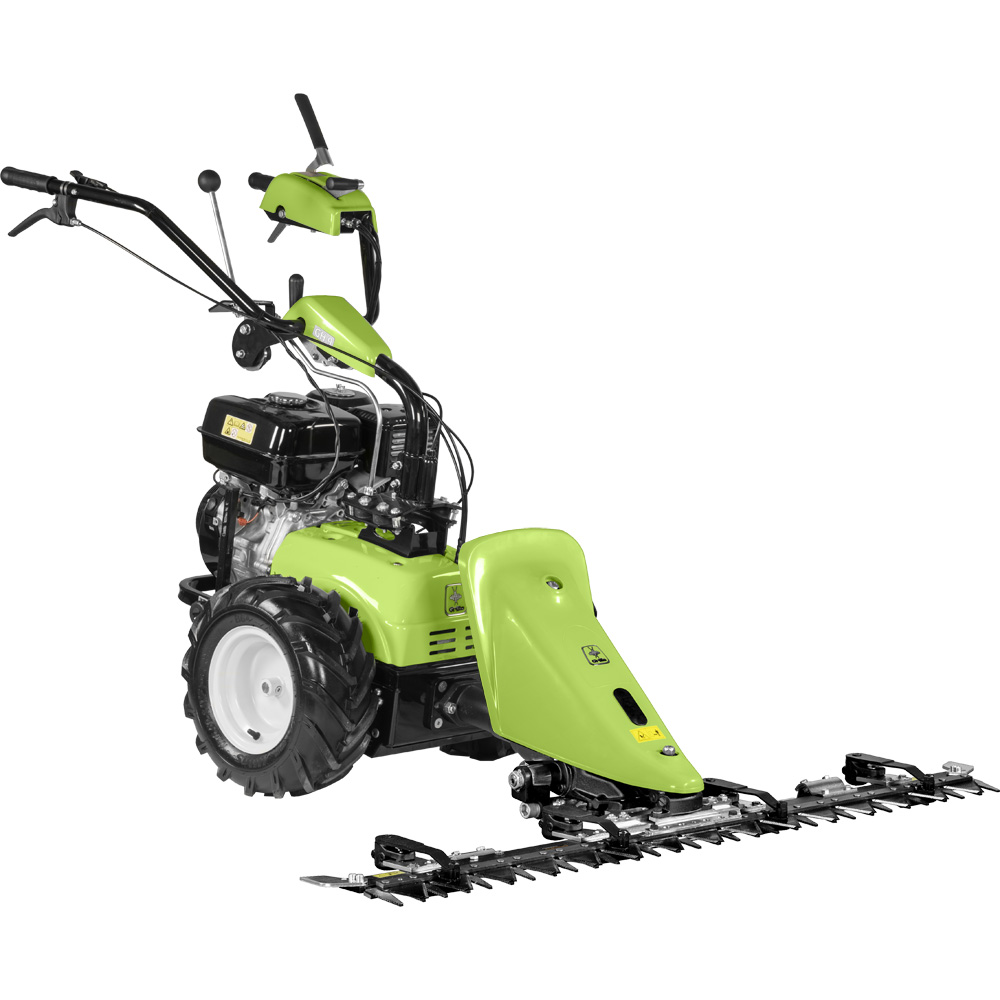

132 cm professional double cutting-bar with oil-bath movement

to be applied on G 108 - G 110 - GH 7 - GH 8 - GH 9

item no.: 996011 999011 946311

weight: 52 kg

132 cm professional double cutting-bar with oil-bath movement and self-regulating elastic hold-down clamps (Busatis Austria System)

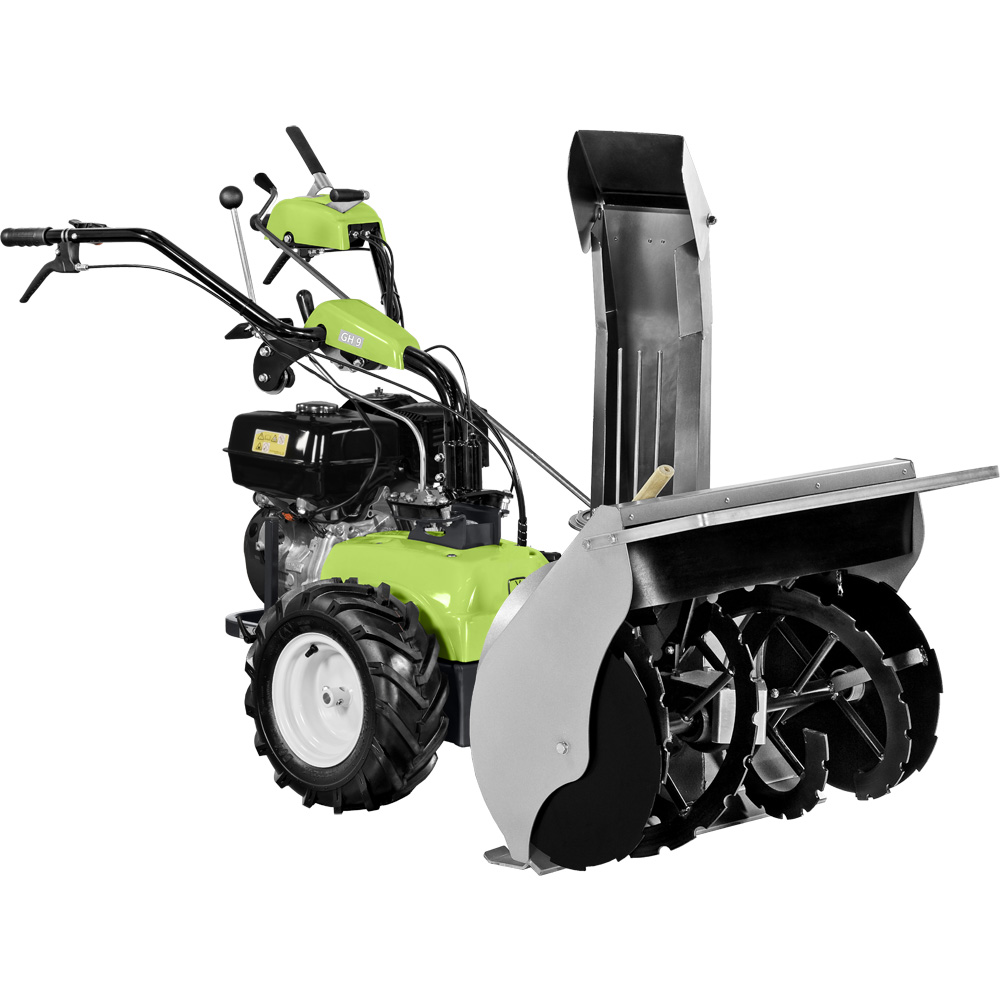

Snow thrower two-stage 70 cm

to be applied on Dumper 507 - G 107d - G 108 - G 110 - G 85d - GF 3 - GF 3DF - GH 9

item no.: 9G8022

weight: 77 kg

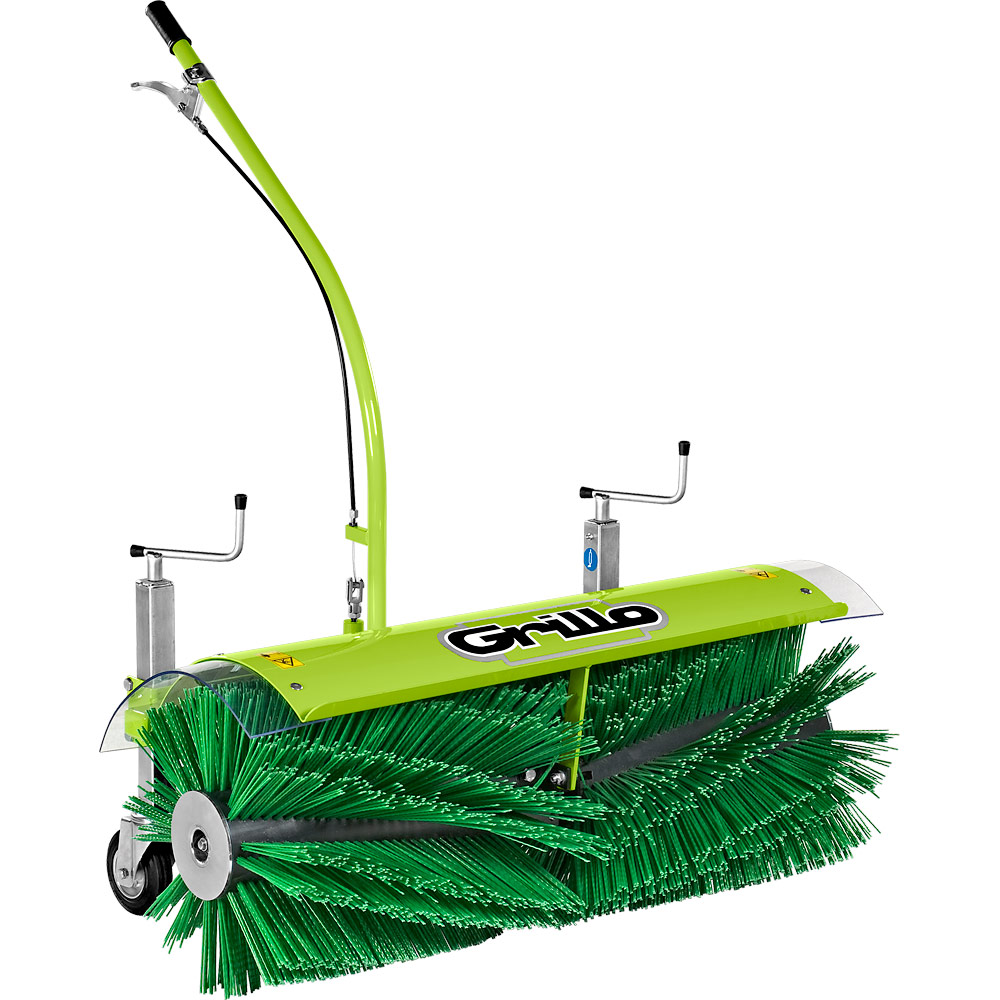

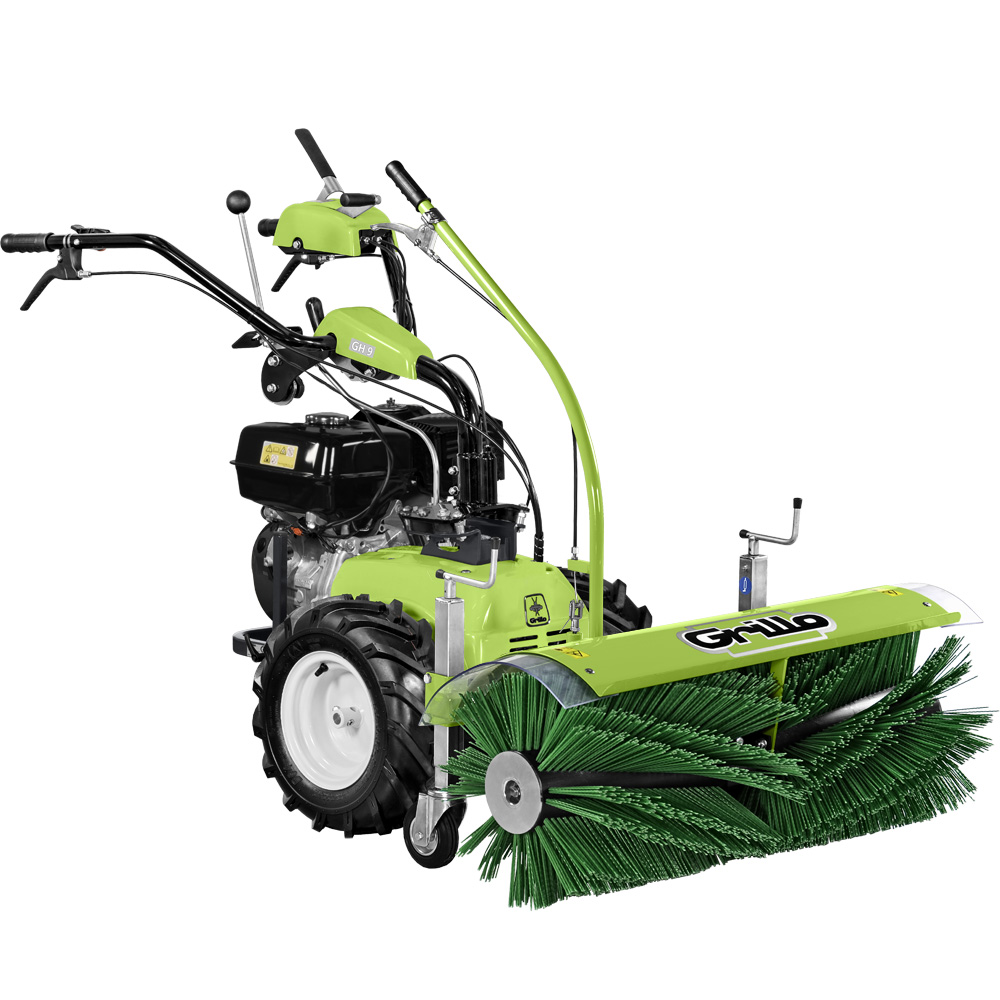

Orientable and tilting sweeper, 100 cm

to be applied on GH 7 - GH 8 - GH 9

item no.: 9M6022

weight: 55 kg

Brushes are applied on the front of Grillo walking tractors.
They are equipped with a 400 mm diameter roller with polypropylene spatula.
It is ideal to put aside fresh snow and to clean up sideways, roads, cycle paths, avenues and parking lots.
The gear transmission is in oil-bath.
A lever is comfortably operated from the driver's position to quickly incline the brush up to 25° towards right or left.
The brush is also equipped with height-adjustable, pivoting support wheels to suit any working condition.
Grillo brushes do not damage nor scratch the areas where they are used thanks to their highly-resistant and flexible spatula.
